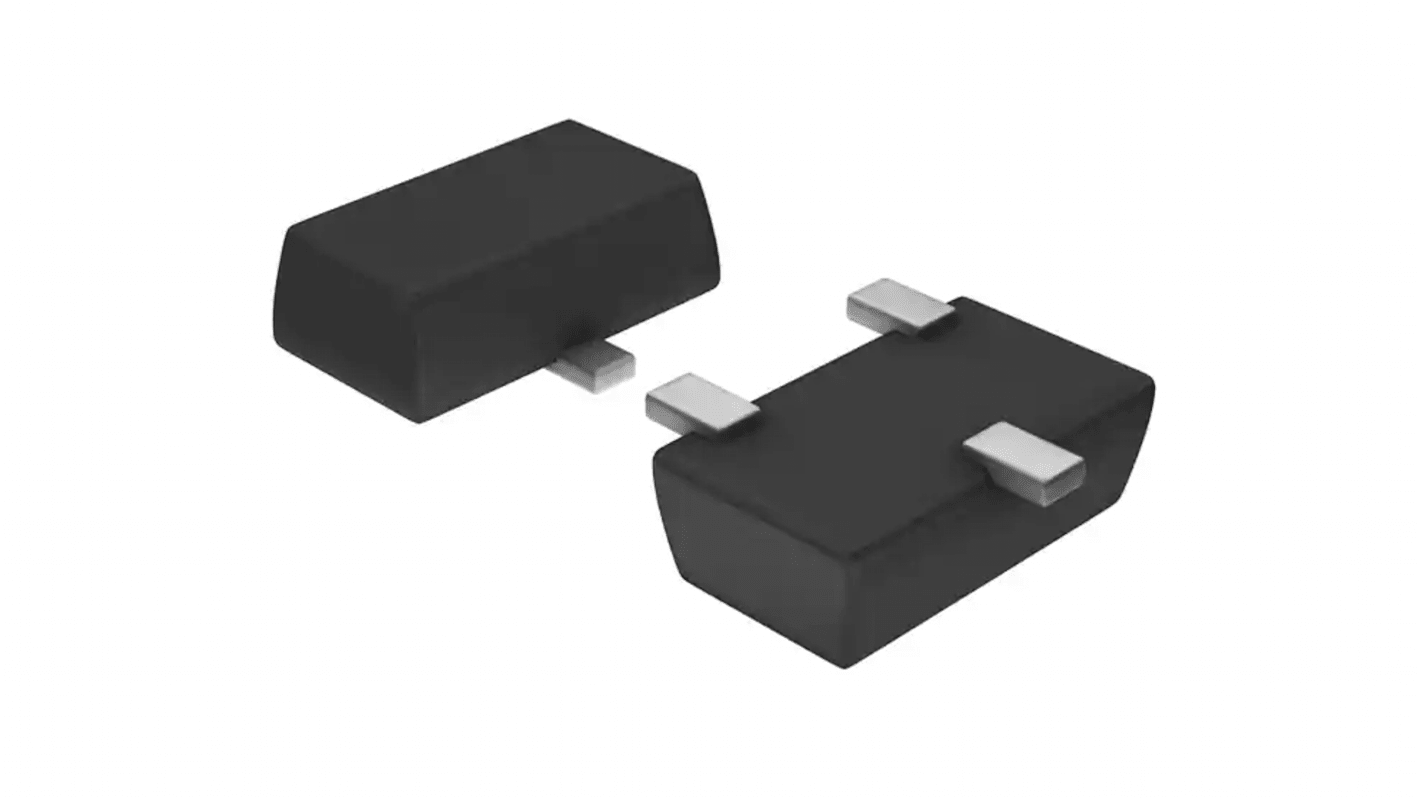

Toshiba Type P-Channel MOSFET, 3.5 A, 60 V, 3-Pin SOT-23 SSM3J351R,LF(T
- RS Stock No.:
- 236-3570
- Mfr. Part No.:
- SSM3J351R,LF(T
- Brand:
- Toshiba
Subtotal (1 reel of 3000 units)*
£501.00
(exc. VAT)
£600.00
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 3,000 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.167 | £501.00 |
*price indicative
- RS Stock No.:
- 236-3570
- Mfr. Part No.:
- SSM3J351R,LF(T
- Brand:
- Toshiba
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 3.5A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | SOT-23 | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 129mΩ | |
| Maximum Power Dissipation Pd | 2W | |
| Forward Voltage Vf | 0.85V | |
| Typical Gate Charge Qg @ Vgs | 15.1nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Length | 2.4mm | |
| Height | 0.8mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 3.5A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-23 | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 129mΩ | ||
Maximum Power Dissipation Pd 2W | ||
Forward Voltage Vf 0.85V | ||
Typical Gate Charge Qg @ Vgs 15.1nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Length 2.4mm | ||
Height 0.8mm | ||
Automotive Standard AEC-Q101 | ||
The Toshiba field effect transistor MADE up of the silicon material and having P channel MOS type. It is mainly used in power management switching applications.
Storage temperature range −55 to 150 °C
