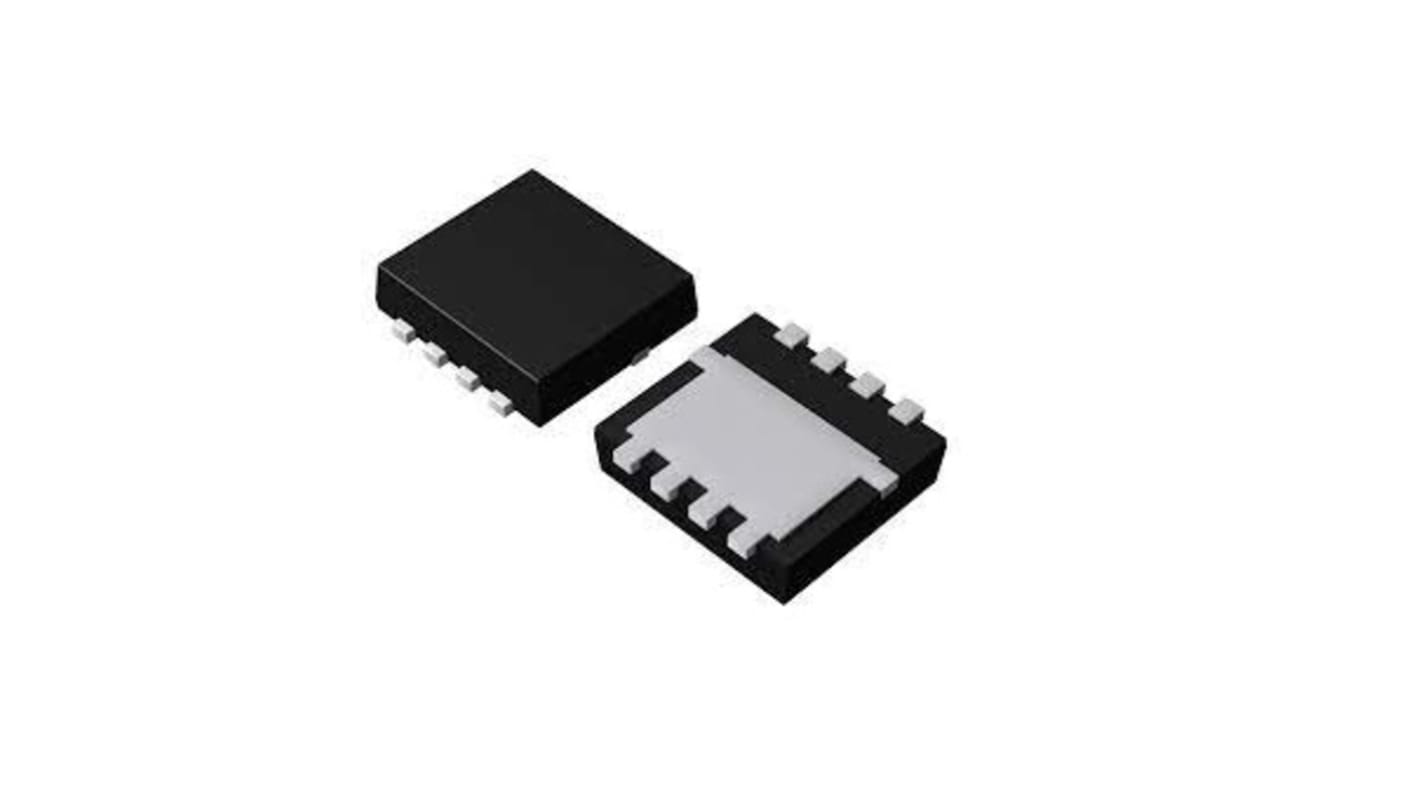

ROHM Type N-Channel MOSFET, 39 A, 100 V Enhancement, 8-Pin HSMT RQ3P300BHTB1
- RS Stock No.:
- 235-2774
- Mfr. Part No.:
- RQ3P300BHTB1
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£2,166.00
(exc. VAT)
£2,598.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.722 | £2,166.00 |
*price indicative
- RS Stock No.:
- 235-2774
- Mfr. Part No.:
- RQ3P300BHTB1
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 39A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | HSMT | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 15.5mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20V | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 36nC | |
| Maximum Power Dissipation Pd | 2W | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Width | 0.85mm | |
| Length | 3.15mm | |
| Height | 3.4mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 39A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type HSMT | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 15.5mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20V | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 36nC | ||
Maximum Power Dissipation Pd 2W | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Width 0.85mm | ||
Length 3.15mm | ||
Height 3.4mm | ||
Automotive Standard No | ||
The ROHM N channel power MOSFET with low on state resistance has drain to source voltage of 100 V. It is Ideal for switching purpose.
Small surface mount package
Pb-free lead plating
RoHS compliant
