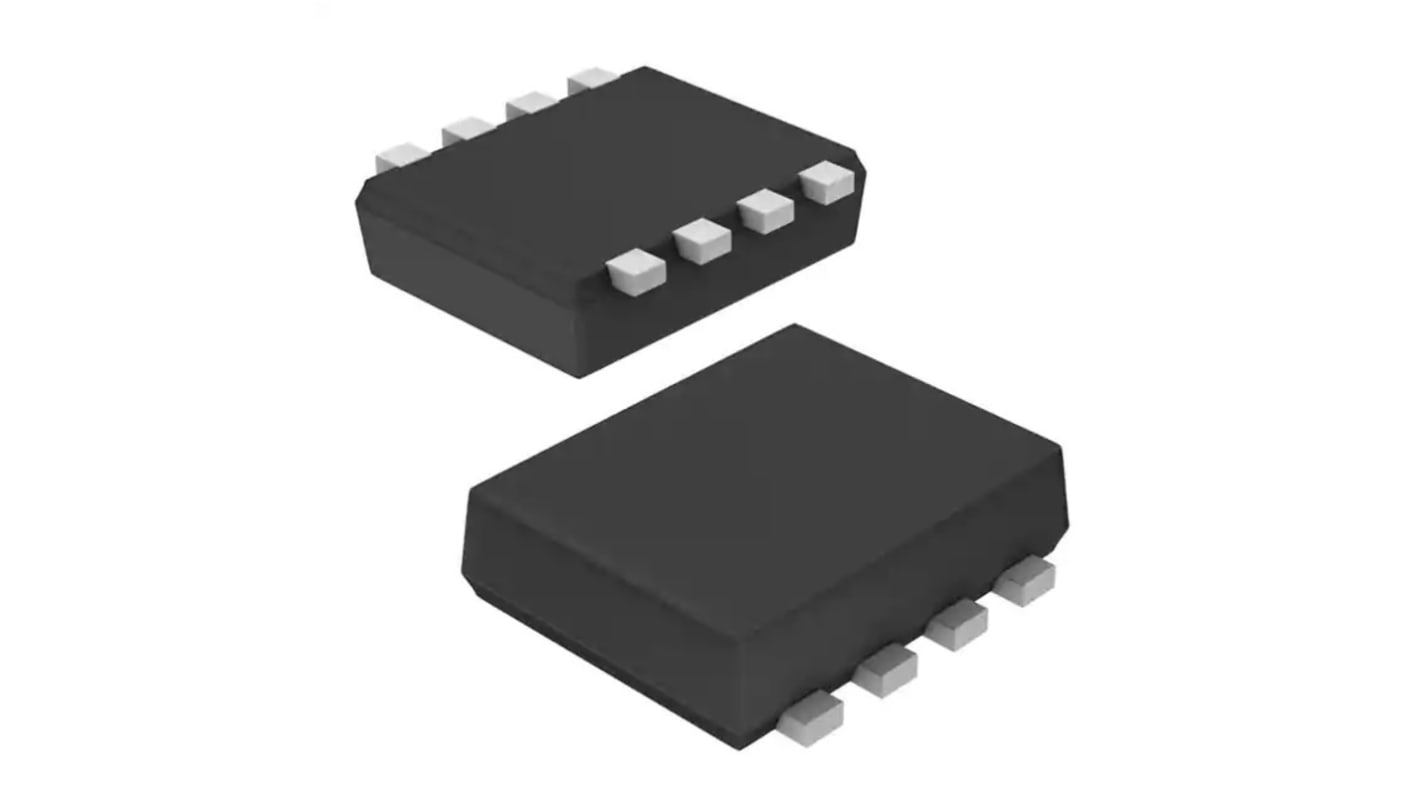

ROHM QH8MC5 Dual N/P-Channel MOSFET, 3 A, 3.5 A, 60 V, 8-Pin TSMT-8 QH8MC5TCR
- RS Stock No.:
- 235-2673
- Mfr. Part No.:
- QH8MC5TCR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£984.00
(exc. VAT)
£1,182.00
(inc. VAT)
Stock information currently inaccessible
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.328 | £984.00 |
*price indicative
- RS Stock No.:
- 235-2673
- Mfr. Part No.:
- QH8MC5TCR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | N, P | |
| Maximum Continuous Drain Current | 3 A, 3.5 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | TSMT-8 | |
| Series | QH8MC5 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.09(N Channel) O, 0.091(P Channel) O | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2.5V | |
| Number of Elements per Chip | 2 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type N, P | ||
Maximum Continuous Drain Current 3 A, 3.5 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type TSMT-8 | ||
Series QH8MC5 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.09(N Channel) O, 0.091(P Channel) O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2.5V | ||
Number of Elements per Chip 2 | ||
The ROHM dual N channel and P channel MOSFET which supports 60V withstand voltage. This is designed for 24V input equipment's such as factory automation equipment's, and motors mounted on base stations. By combining the optimum N channel + P channel, reduces the design efforts. It also contributes to lower power consumption of equipment.
Low on-resistance
Small surface mount package
Pb-free lead plating
RoHS compliant
Halogen Free
Small surface mount package
Pb-free lead plating
RoHS compliant
Halogen Free
