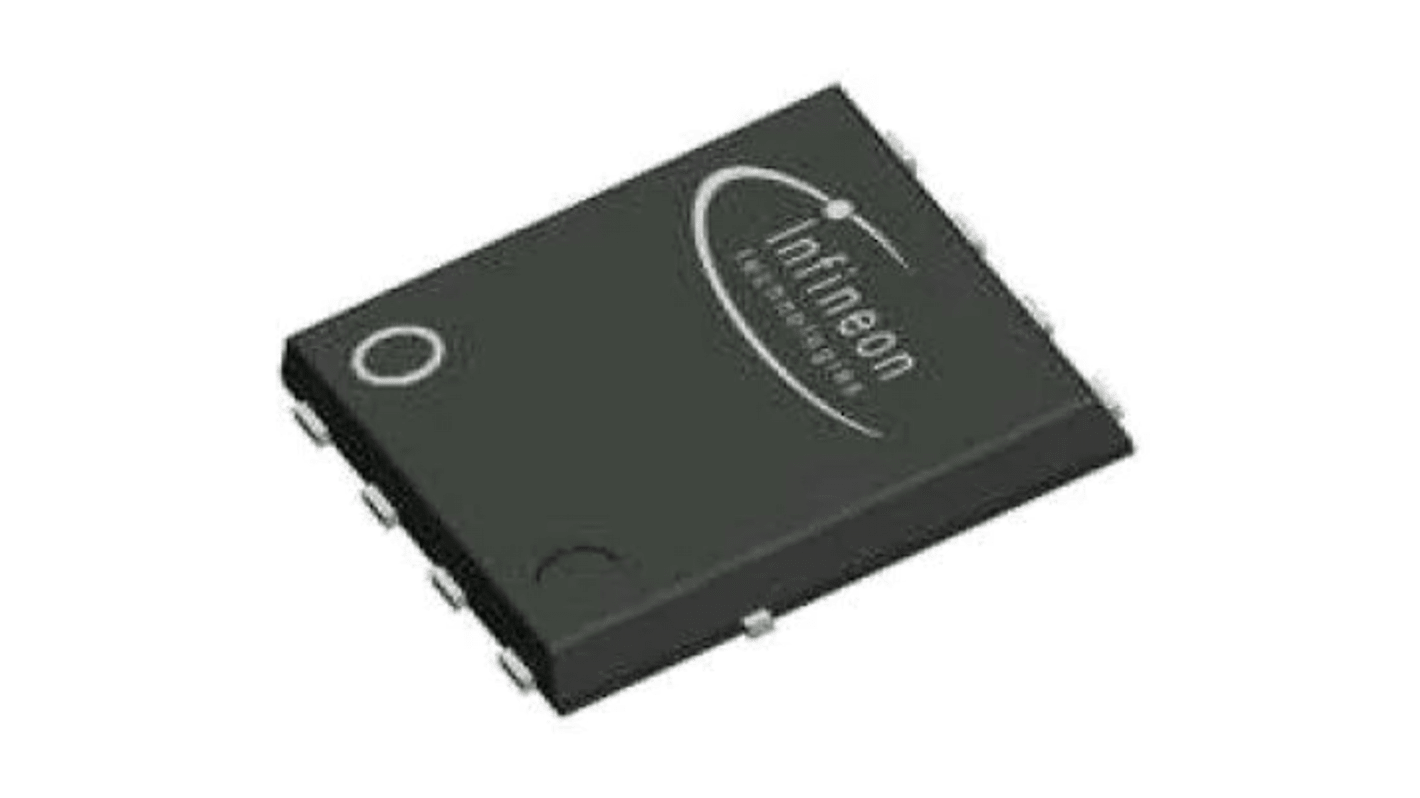

Infineon OptiMOS™ 5 Silicon N-Channel MOSFET, 120 A, 40 V, 8-Pin SuperSO8 5 x 6 IAUC120N04S6L008ATMA1
- RS Stock No.:
- 229-1793
- Mfr. Part No.:
- IAUC120N04S6L008ATMA1
- Brand:
- Infineon
Subtotal (1 reel of 5000 units)*
£2,960.00
(exc. VAT)
£3,550.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 5000 + | £0.592 | £2,960.00 |
*price indicative
- RS Stock No.:
- 229-1793
- Mfr. Part No.:
- IAUC120N04S6L008ATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 120 A | |
| Maximum Drain Source Voltage | 40 V | |
| Series | OptiMOS™ 5 | |
| Package Type | SuperSO8 5 x 6 | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 0.0008 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Number of Elements per Chip | 1 | |
| Transistor Material | Silicon | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 120 A | ||
Maximum Drain Source Voltage 40 V | ||
Series OptiMOS™ 5 | ||
Package Type SuperSO8 5 x 6 | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 0.0008 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Number of Elements per Chip 1 | ||
Transistor Material Silicon | ||
The Infineon power MOSFET is used for automotive applications. It n channel MOSFET and 100 percent avalanche tested. It has leadless package with highest quality level and robustness for automotive applications. It is n channel logic level MOSFET.
It is RoHS compliant and AEC Q101 qualified
It has 175°C operating temperature
It has 175°C operating temperature
