Infineon AUIRF Type N-Channel MOSFET, 545 A, 40 V Enhancement, 15-Pin DirectFET AUIRF8739L2TR
- RS Stock No.:
- 229-1738
- Mfr. Part No.:
- AUIRF8739L2TR
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 2 units)*
£13.14
(exc. VAT)
£15.76
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3,920 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £6.57 | £13.14 |
| 10 - 18 | £5.915 | £11.83 |
| 20 - 48 | £5.585 | £11.17 |
| 50 - 98 | £5.19 | £10.38 |
| 100 + | £4.795 | £9.59 |
*price indicative
- RS Stock No.:
- 229-1738
- Mfr. Part No.:
- AUIRF8739L2TR
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 545A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | DirectFET | |
| Series | AUIRF | |
| Mount Type | Surface | |
| Pin Count | 15 | |
| Maximum Drain Source Resistance Rds | 0.6mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 375nC | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.2V | |
| Maximum Gate Source Voltage Vgs | 40 V | |
| Maximum Power Dissipation Pd | 340W | |
| Maximum Operating Temperature | 175°C | |
| Length | 9.15mm | |
| Standards/Approvals | No | |
| Height | 0.74mm | |
| Width | 7.1 mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 545A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type DirectFET | ||
Series AUIRF | ||
Mount Type Surface | ||
Pin Count 15 | ||
Maximum Drain Source Resistance Rds 0.6mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 375nC | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.2V | ||
Maximum Gate Source Voltage Vgs 40 V | ||
Maximum Power Dissipation Pd 340W | ||
Maximum Operating Temperature 175°C | ||
Length 9.15mm | ||
Standards/Approvals No | ||
Height 0.74mm | ||
Width 7.1 mm | ||
Automotive Standard AEC-Q101 | ||

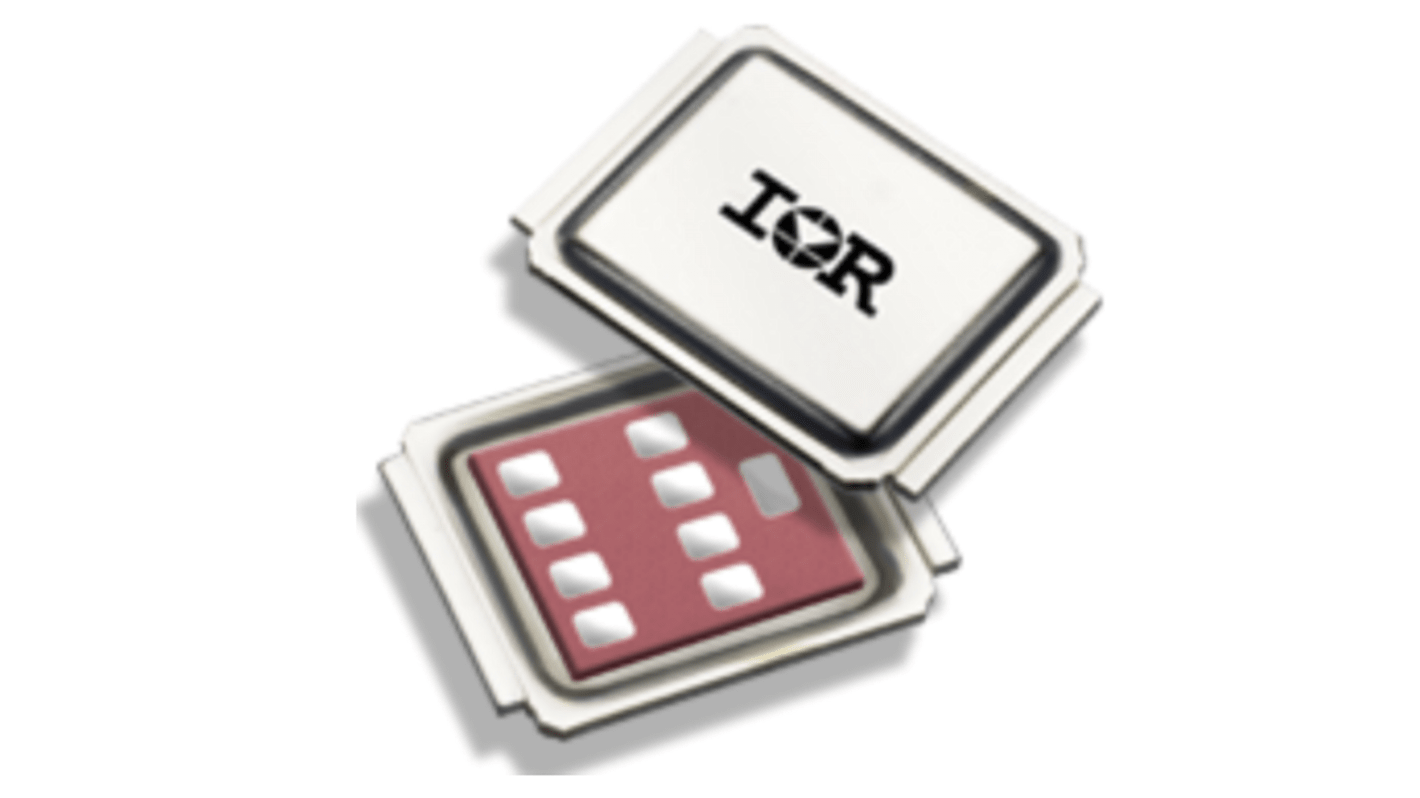

The Infineon single n channel HEXFET power MOSFET in a DirectFET L8 package allows repetitive avalanche up to Tjmax. It has fast switching speed and it is lead free.
It is RoHS compliant and AEC qualified
It has 175°C operating temperature
It has dual sided cooling
