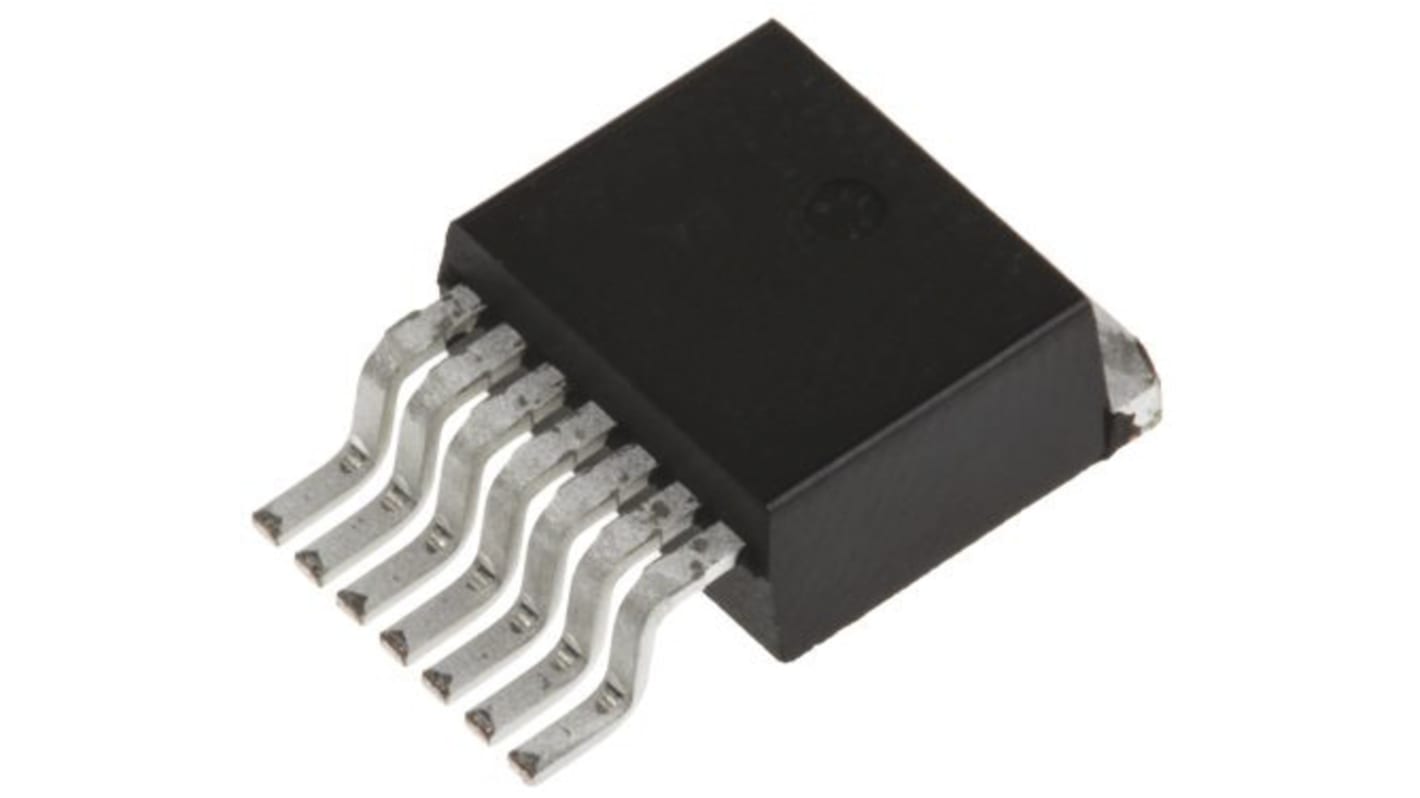

Vishay TrenchFET Type N-Channel MOSFET, 150 A, 100 V Enhancement, 7-Pin TO-263 SUM70030M-GE3
- RS Stock No.:
- 228-2985
- Mfr. Part No.:
- SUM70030M-GE3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£9.08
(exc. VAT)
£10.90
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 748 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £4.54 | £9.08 |
| 20 - 48 | £4.07 | £8.14 |
| 50 - 98 | £3.855 | £7.71 |
| 100 - 198 | £3.635 | £7.27 |
| 200 + | £3.35 | £6.70 |
*price indicative
- RS Stock No.:
- 228-2985
- Mfr. Part No.:
- SUM70030M-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 150A | |
| Maximum Drain Source Voltage Vds | 100V | |
| Package Type | TO-263 | |
| Series | TrenchFET | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 3.5mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.8V | |
| Typical Gate Charge Qg @ Vgs | 142.4nC | |
| Maximum Power Dissipation Pd | 375W | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 150A | ||
Maximum Drain Source Voltage Vds 100V | ||
Package Type TO-263 | ||
Series TrenchFET | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 3.5mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.8V | ||
Typical Gate Charge Qg @ Vgs 142.4nC | ||
Maximum Power Dissipation Pd 375W | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Vishay N-Channel 100-V (D-S) MOSFET.
100 % Rg and UIS tested
