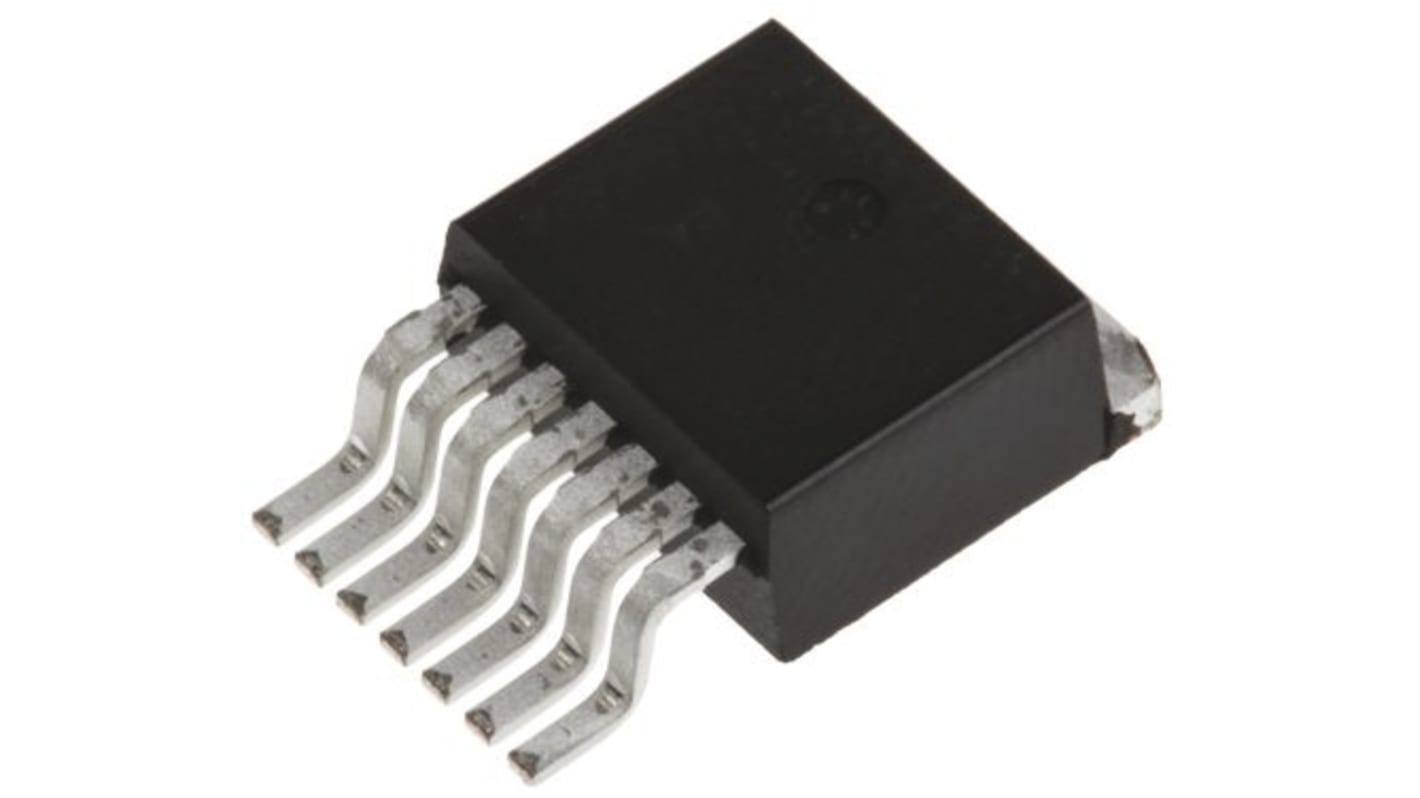

Vishay TrenchFET Type N-Channel MOSFET, 200 A, 40 V Enhancement, 7-Pin TO-263 SUM40014M-GE3
- RS Stock No.:
- 228-2981
- Mfr. Part No.:
- SUM40014M-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 2 units)*
£6.32
(exc. VAT)
£7.58
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 742 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 18 | £3.16 | £6.32 |
| 20 - 48 | £2.845 | £5.69 |
| 50 - 98 | £2.68 | £5.36 |
| 100 - 198 | £2.535 | £5.07 |
| 200 + | £2.335 | £4.67 |
*price indicative
- RS Stock No.:
- 228-2981
- Mfr. Part No.:
- SUM40014M-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 200A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | TO-263 | |
| Series | TrenchFET | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 0.99mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 375W | |
| Typical Gate Charge Qg @ Vgs | 182nC | |
| Forward Voltage Vf | 0.72V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 200A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type TO-263 | ||
Series TrenchFET | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 0.99mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 375W | ||
Typical Gate Charge Qg @ Vgs 182nC | ||
Forward Voltage Vf 0.72V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Vishay N-Channel 40-V (D-S) MOSFET.
100 % Rg and UIS tested
