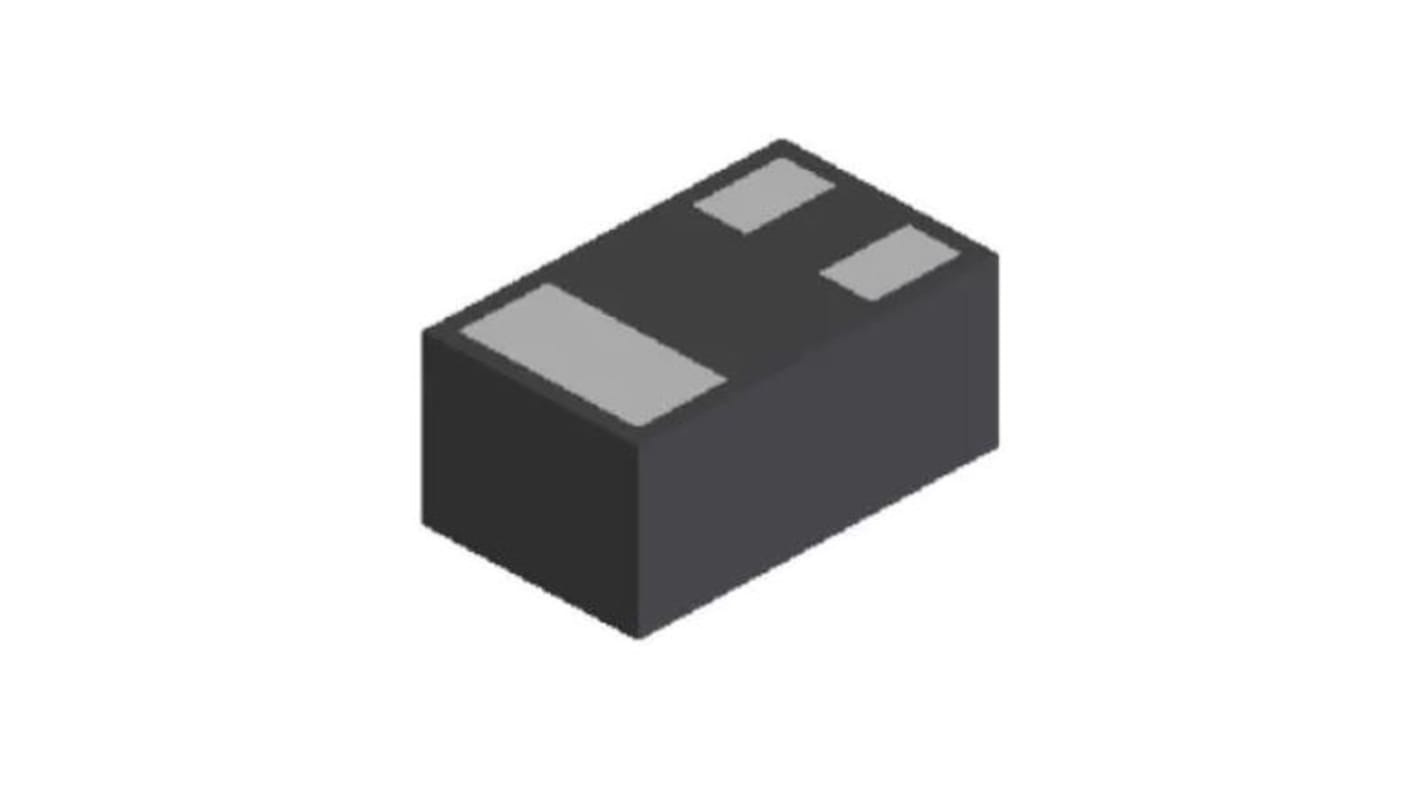

Diodes Inc DMN N-Channel MOSFET, 4.6 A, 30 V, 3-Pin X4-DSN1006-3 DMN3061LCA3-7
- RS Stock No.:
- 222-2838
- Mfr. Part No.:
- DMN3061LCA3-7
- Brand:
- DiodesZetex
Save 30% when you buy 5000 units
Subtotal (1 pack of 25 units)*
£2.75
(exc. VAT)
£3.25
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 999,999,975 unit(s) shipping from 22 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
25 - 475 | £0.11 | £2.75 |
500 - 975 | £0.083 | £2.08 |
1000 - 2475 | £0.081 | £2.03 |
2500 - 4975 | £0.079 | £1.98 |
5000 + | £0.077 | £1.93 |
*price indicative
- RS Stock No.:
- 222-2838
- Mfr. Part No.:
- DMN3061LCA3-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | DiodesZetex | |
Channel Type | N | |
Maximum Continuous Drain Current | 4.6 A | |
Maximum Drain Source Voltage | 30 V | |
Package Type | X4-DSN1006-3 | |
Series | DMN | |
Mounting Type | Surface Mount | |
Pin Count | 3 | |
Maximum Drain Source Resistance | 0.058 O | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 1.1V | |
Select all | ||
---|---|---|
Brand DiodesZetex | ||
Channel Type N | ||
Maximum Continuous Drain Current 4.6 A | ||
Maximum Drain Source Voltage 30 V | ||
Package Type X4-DSN1006-3 | ||
Series DMN | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.058 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 1.1V | ||
The DiodesZetex N-channel enhancement mode MOSFET is designed to minimize the footprint in handheld and mobile application. It can be used to replace many small signals MOSFET with as really small footprint.
Low Qg & Qgd
Small Footprint
Low Profile 0.20mm Height
Totally Lead-Free & Fully RoHS Compliant
Small Footprint
Low Profile 0.20mm Height
Totally Lead-Free & Fully RoHS Compliant
