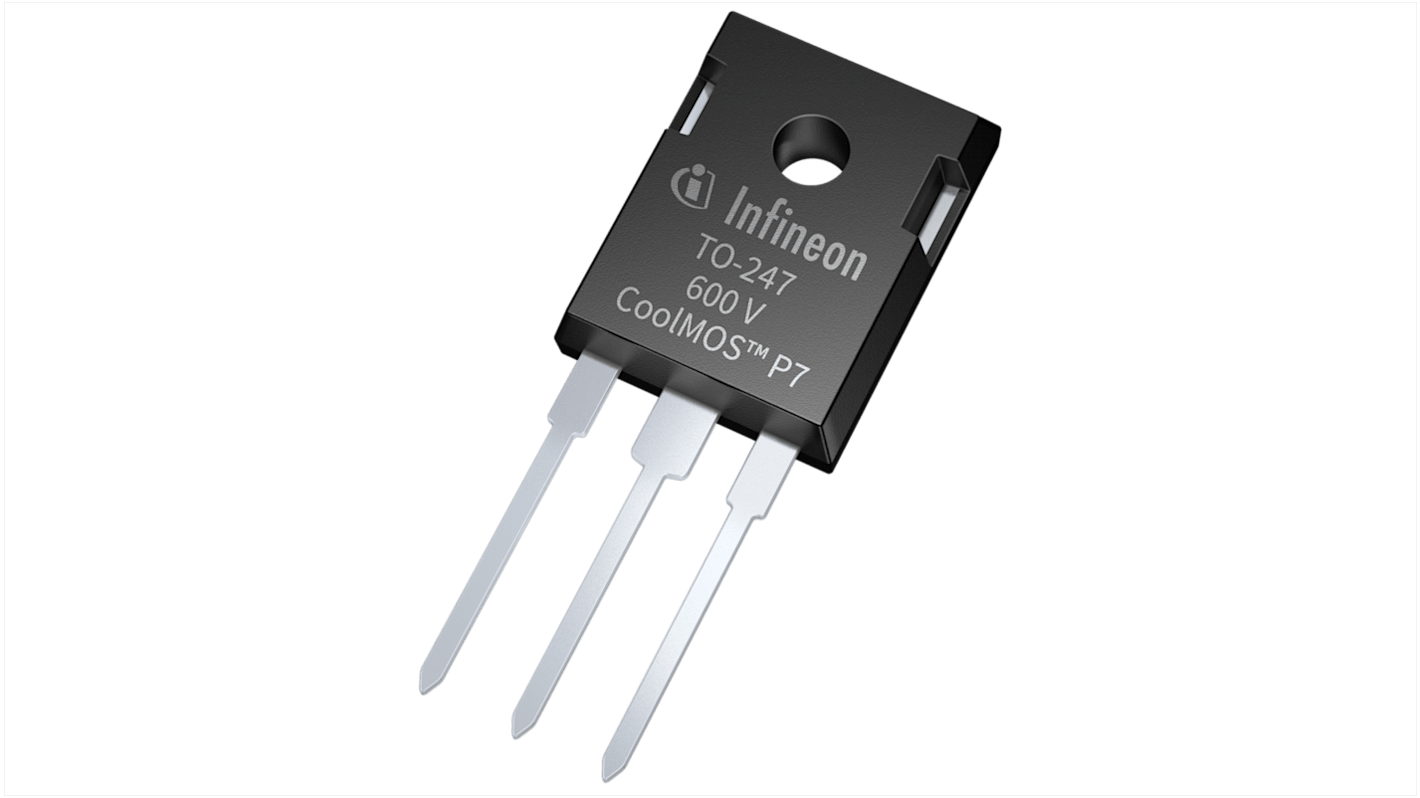

Infineon 600V CoolMOS P7 Type N-Channel MOSFET, 18 A, 600 V, 3-Pin TO-247
- RS Stock No.:
- 218-3086
- Mfr. Part No.:
- IPW60R180P7XKSA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 30 units)*
£60.96
(exc. VAT)
£73.14
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 240 unit(s) shipping from 12 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 - 30 | £2.032 | £60.96 |
| 60 - 120 | £1.93 | £57.90 |
| 150 - 270 | £1.849 | £55.47 |
| 300 - 570 | £1.768 | £53.04 |
| 600 + | £1.646 | £49.38 |
*price indicative
- RS Stock No.:
- 218-3086
- Mfr. Part No.:
- IPW60R180P7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 18A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Series | 600V CoolMOS P7 | |
| Package Type | TO-247 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 180mΩ | |
| Forward Voltage Vf | 0.9V | |
| Maximum Power Dissipation Pd | 72W | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 25nC | |
| Maximum Operating Temperature | 150°C | |
| Height | 21.1mm | |
| Width | 5.21 mm | |
| Standards/Approvals | No | |
| Length | 16.13mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 18A | ||
Maximum Drain Source Voltage Vds 600V | ||
Series 600V CoolMOS P7 | ||
Package Type TO-247 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 180mΩ | ||
Forward Voltage Vf 0.9V | ||
Maximum Power Dissipation Pd 72W | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 25nC | ||
Maximum Operating Temperature 150°C | ||
Height 21.1mm | ||
Width 5.21 mm | ||
Standards/Approvals No | ||
Length 16.13mm | ||
Automotive Standard No | ||
The Infineon 600V CoolMOS™ series N-channel power MOSFET. The 600V CoolMOS™ P7 super junction (SJ) MOSFET is the successor to the 600V CoolMOS™ P6 series. It continues to balance the need for high efficiency against the ease-of-use in the design process.
Suitable for hard and soft switching (PFC and LLC) due to an outstanding commutation ruggedness
Significant reduction of switching and conduction losses
Excellent ESD robustness >2kV (HBM) for all products
