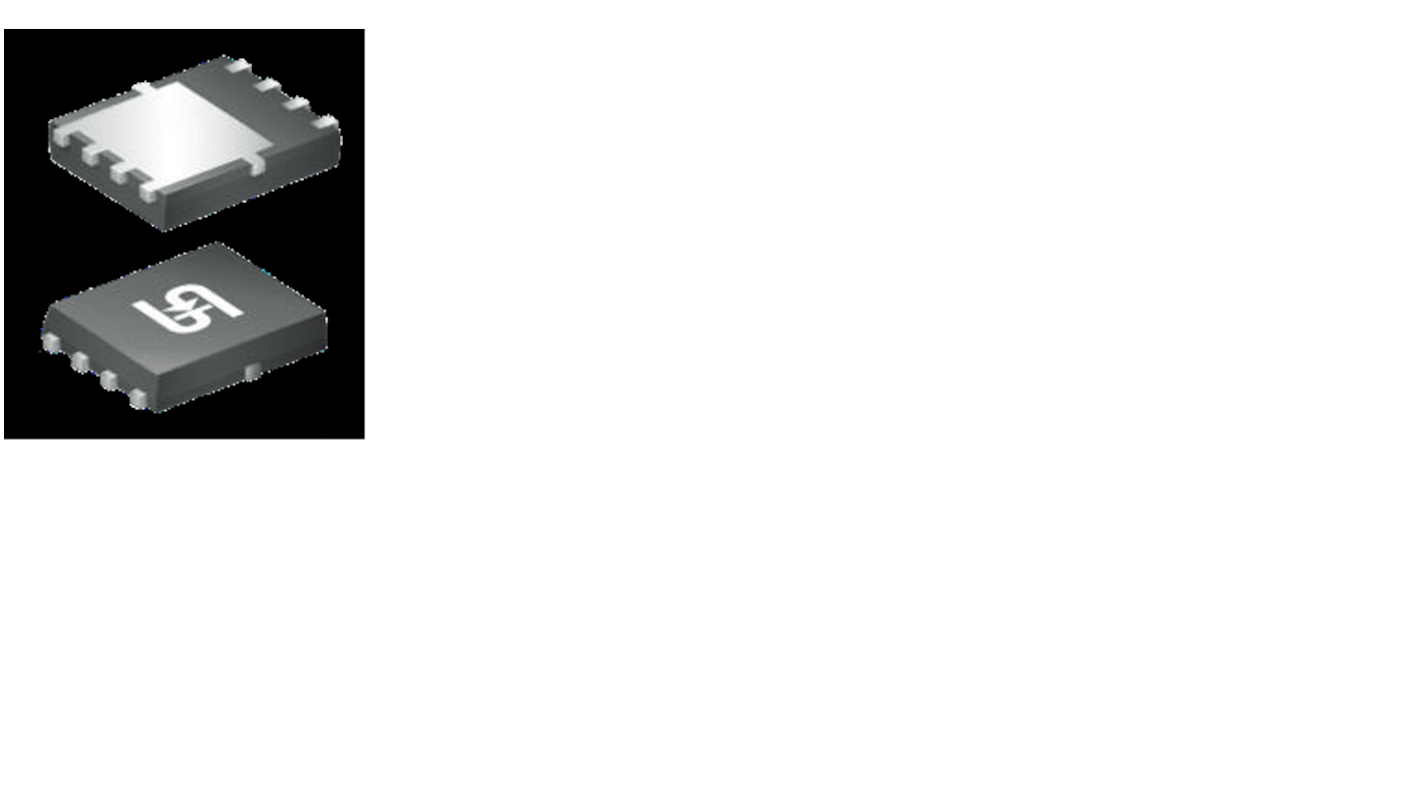

Silicon MOSFET, 35 A, 60 V, 8-Pin PDFN56 Taiwan Semi TSM220NB06CR
- RS Stock No.:
- 216-9702
- Mfr. Part No.:
- TSM220NB06CR
- Brand:
- Taiwan Semiconductor
5000 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 25)
£0.679
(exc. VAT)
£0.815
(inc. VAT)
| Units | Per unit | Per Pack* |
| 25 - 25 | £0.679 | £16.975 |
| 50 - 75 | £0.666 | £16.65 |
| 100 - 225 | £0.612 | £15.30 |
| 250 - 975 | £0.60 | £15.00 |
| 1000 + | £0.558 | £13.95 |
| *price indicative | ||
- RS Stock No.:
- 216-9702
- Mfr. Part No.:
- TSM220NB06CR
- Brand:
- Taiwan Semiconductor
Technical Reference
Legislation and Compliance
Product Details
The Taiwan semiconductor single N channel power MOSFET transistors, stands for ’Metal Oxide Semiconductor Field-Effect Transistors’. MOSFETs are transistor devices which are controlled by a capacitor. The "Field-Effect" means that they are controlled by voltage. The aim of a MOSFET is to control the flow of the current passing through from the source to the drain terminals.
Low RDS(ON) to minimize conductive losses Low gate charge for fast power switching 100% UIS and Rg tested
Specifications
Attribute | Value |
|---|---|
| Maximum Continuous Drain Current | 35 A |
| Maximum Drain Source Voltage | 60 V |
| Series | TSM025 |
| Package Type | PDFN56 |
| Pin Count | 8 |
| Maximum Drain Source Resistance | 22 mΩ |
| Channel Mode | Enhancement |
| Maximum Gate Threshold Voltage | 4V |
| Transistor Material | Silicon |
