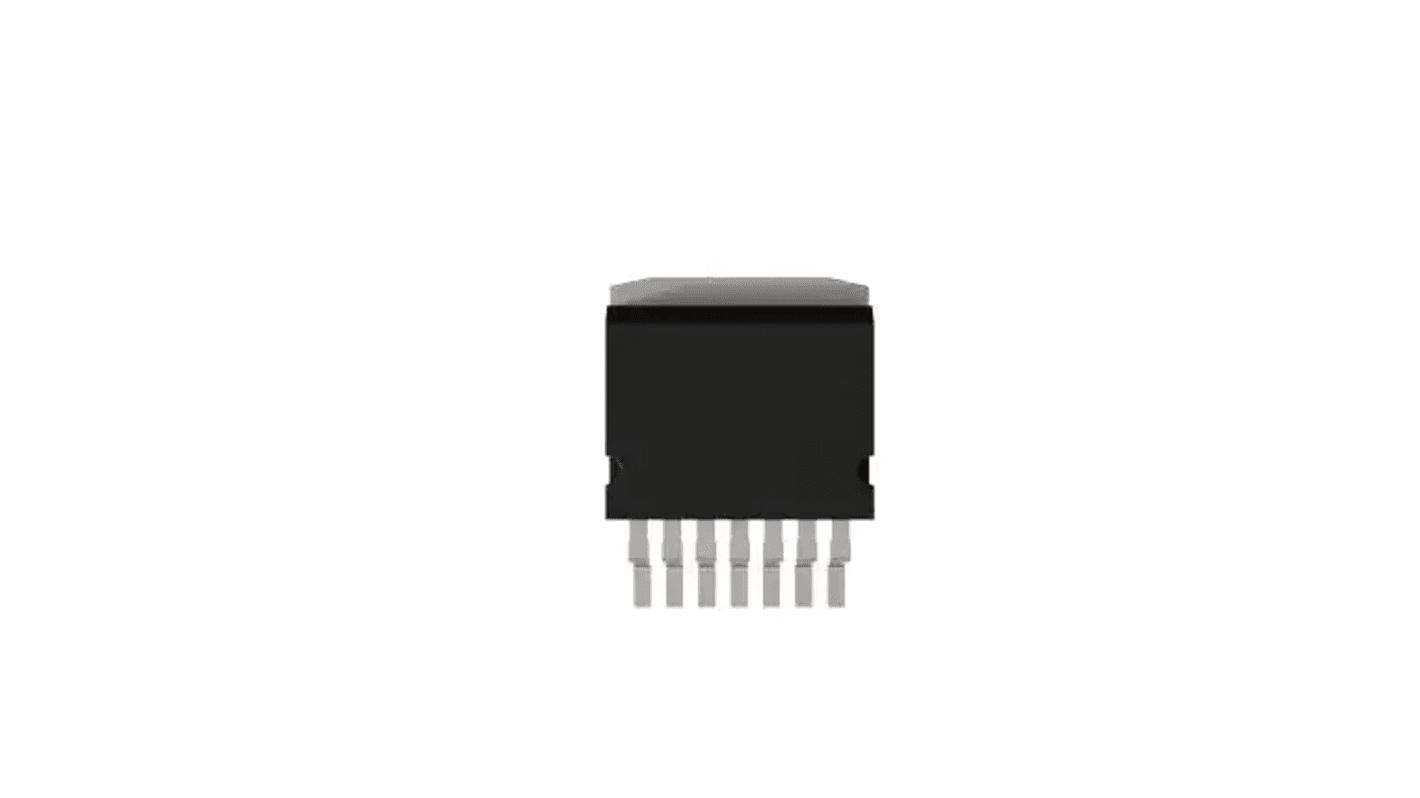

ROHM SCT SiC N-Channel MOSFET, 56 A, 1200 V, 7-Pin D2PAK SCT3040KW7TL
- RS Stock No.:
- 215-9937
- Mfr. Part No.:
- SCT3040KW7TL
- Brand:
- ROHM
Unavailable
RS will no longer stock this product.
- RS Stock No.:
- 215-9937
- Mfr. Part No.:
- SCT3040KW7TL
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 56 A | |
| Maximum Drain Source Voltage | 1200 V | |
| Series | SCT | |
| Package Type | TO-263-7 | |
| Mounting Type | Surface Mount | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance | 40 mO | |
| Maximum Gate Threshold Voltage | 5.6V | |
| Transistor Material | SiC | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand ROHM | ||
Channel Type N | ||
Maximum Continuous Drain Current 56 A | ||
Maximum Drain Source Voltage 1200 V | ||
Series SCT | ||
Package Type TO-263-7 | ||
Mounting Type Surface Mount | ||
Pin Count 7 | ||
Maximum Drain Source Resistance 40 mO | ||
Maximum Gate Threshold Voltage 5.6V | ||
Transistor Material SiC | ||
Number of Elements per Chip 1 | ||
The Rohm N-channel power MOSFET featured with very fast switching and low resistance. It is mainly used in solar inverters, DC-DC converter, motor drive and induction heating.
Simple to drive
Easy to parallel
Easy to parallel
