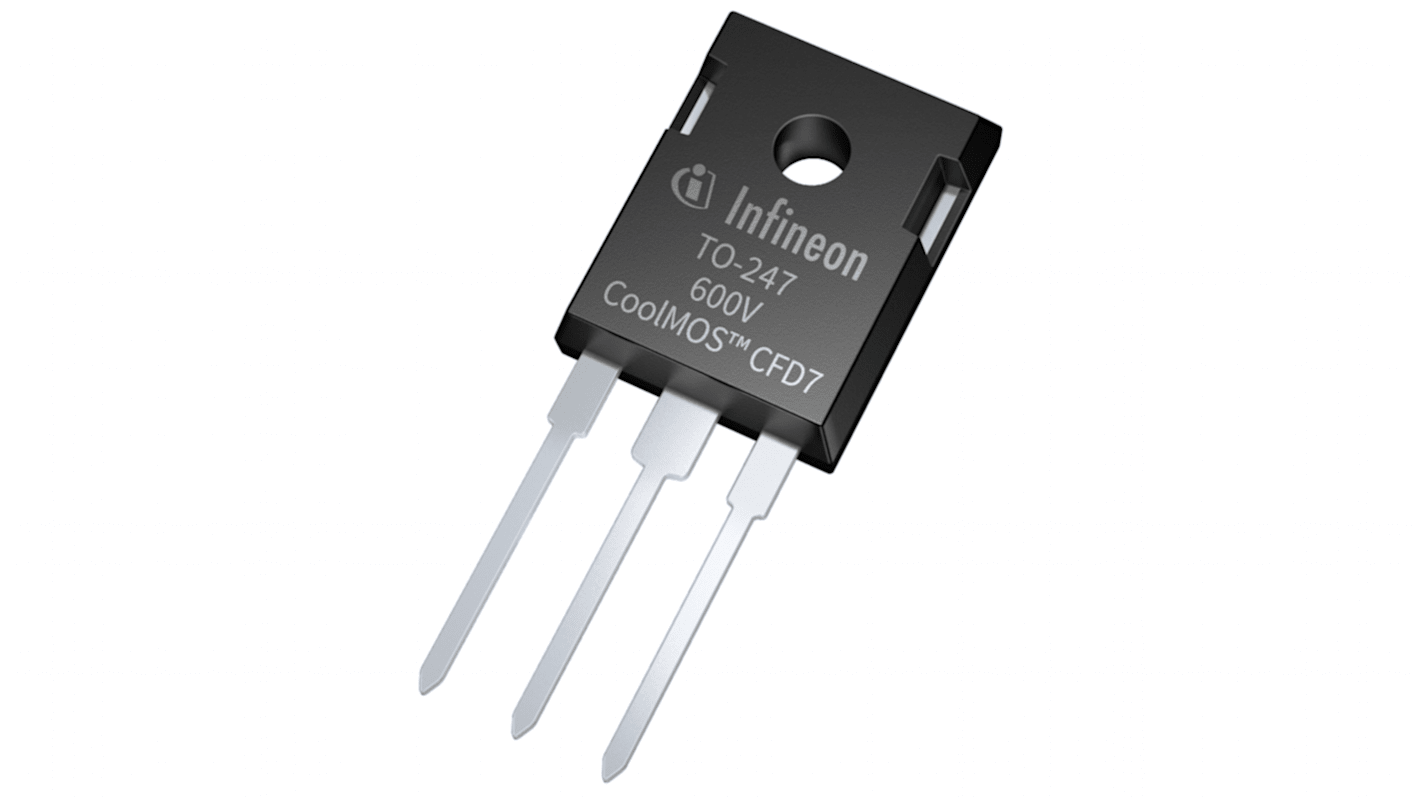

Infineon CoolMOS™ CFD7 N-Channel MOSFET, 38 A, 600 V, 3-Pin TO-247 IPW60R055CFD7XKSA1
- RS Stock No.:
- 215-2564
- Mfr. Part No.:
- IPW60R055CFD7XKSA1
- Brand:
- Infineon
Save 30% when you buy 100 units
Subtotal (1 pack of 2 units)*
£11.98
(exc. VAT)
£14.38
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 126 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £5.99 | £11.98 |
| 10 - 18 | £5.15 | £10.30 |
| 20 - 48 | £4.79 | £9.58 |
| 50 - 98 | £4.495 | £8.99 |
| 100 + | £4.135 | £8.27 |
*price indicative
- RS Stock No.:
- 215-2564
- Mfr. Part No.:
- IPW60R055CFD7XKSA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 38 A | |
| Maximum Drain Source Voltage | 600 V | |
| Series | CoolMOS™ CFD7 | |
| Package Type | TO-247 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.055 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 4.5V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 38 A | ||
Maximum Drain Source Voltage 600 V | ||
Series CoolMOS™ CFD7 | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.055 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4.5V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
The Infineon 600V Cool MOS™ CFD7 is Infineon’s latest high voltage super junction MOSFET technology with integrated fast body diode, completing the Cool MOS™ 7 series. Cool MOS™ CFD7 comes with reduced gate charge (Qg), improved turn-off behaviour and a reverse recovery charge (Qrr) of up to 69% lower compared to the competition, as well as the lowest reverse recovery time (trr) in the market.
Ultra-fast body diode
Best-in-class reverse recovery charge (Qrr)
Improved reverse diode dv/dt and dif/dt ruggedness
Lowest FOM RDS(on) x Qg and Eoss
Best-in-class RDS(on)/package combinations
Best-in-class reverse recovery charge (Qrr)
Improved reverse diode dv/dt and dif/dt ruggedness
Lowest FOM RDS(on) x Qg and Eoss
Best-in-class RDS(on)/package combinations
