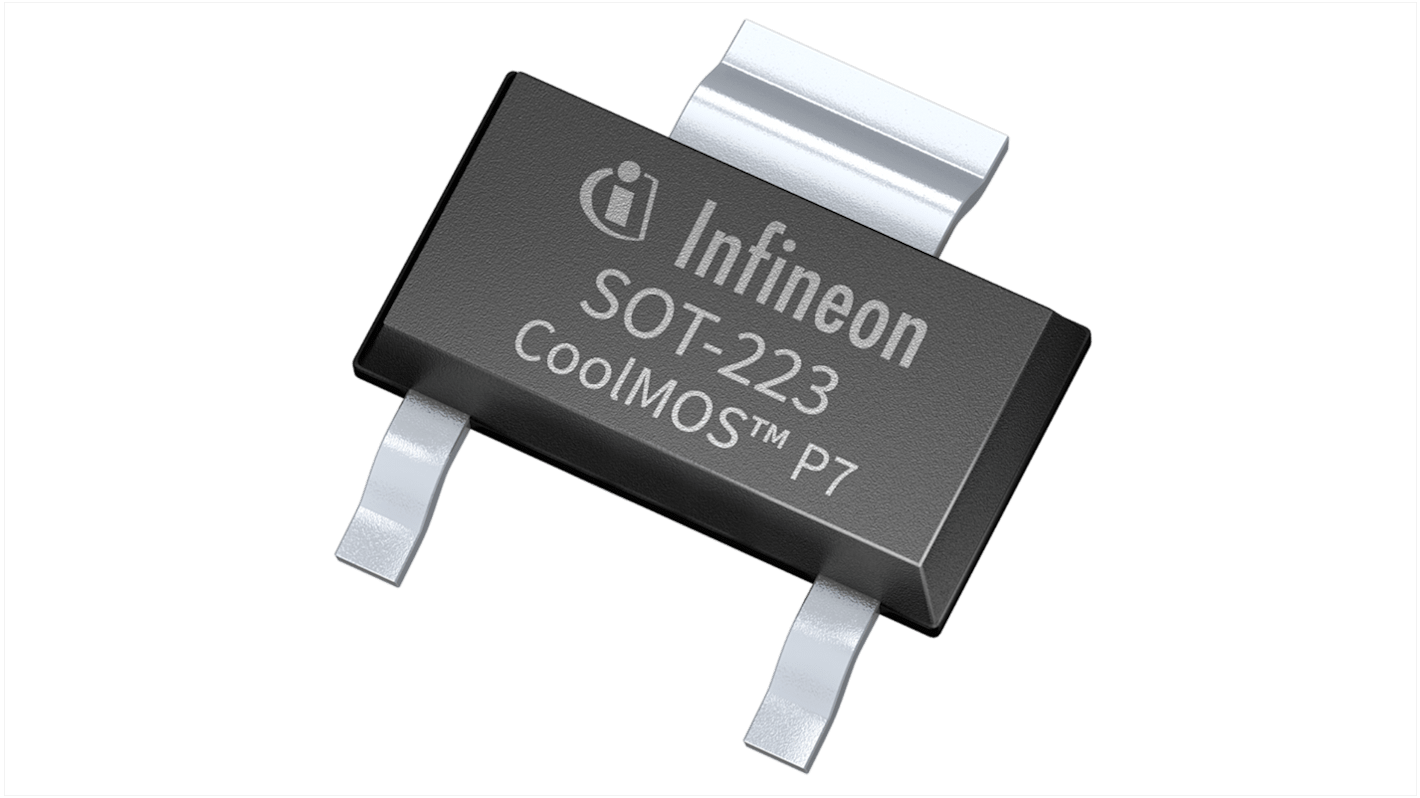

Infineon CoolMOS™ P7 N-Channel MOSFET, 12.5 A, 700 V, 3-Pin SOT-223 IPN70R360P7SATMA1
- RS Stock No.:
- 215-2526
- Mfr. Part No.:
- IPN70R360P7SATMA1
- Brand:
- Infineon
Save 19% when you buy 1000 units
Subtotal (1 pack of 20 units)*
£11.36
(exc. VAT)
£13.64
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,260 unit(s) ready to ship
- Plus 999,995,720 unit(s) shipping from 08 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 80 | £0.568 | £11.36 |
| 100 - 180 | £0.54 | £10.80 |
| 200 - 480 | £0.517 | £10.34 |
| 500 - 980 | £0.494 | £9.88 |
| 1000 + | £0.46 | £9.20 |
*price indicative
- RS Stock No.:
- 215-2526
- Mfr. Part No.:
- IPN70R360P7SATMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 12.5 A | |
| Maximum Drain Source Voltage | 700 V | |
| Package Type | SOT-223 | |
| Series | CoolMOS™ P7 | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 0.36 Ω | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 3.5V | |
| Transistor Material | Si | |
| Number of Elements per Chip | 1 | |
Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type N | ||
Maximum Continuous Drain Current 12.5 A | ||
Maximum Drain Source Voltage 700 V | ||
Package Type SOT-223 | ||
Series CoolMOS™ P7 | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 0.36 Ω | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3.5V | ||
Transistor Material Si | ||
Number of Elements per Chip 1 | ||
The Infineon 700V Cool MOS™ P7 super junction MOSFET series addresses the low power SMPS market, such as mobile phone chargers or notebook adapters by offering fundamental performance gains compared to super junction technologies used today. The technology meets highest efficiency standards and supports high power density, enabling customers going towards very slim designs. The latest CoolMOS™P7 is an optimized platform tailored to target cost sensitive applications in consumer markets such as charger, adapter, lighting, TV, etc.
Extremely low losses due to very low FOMRDS(on)*Qg and RDS(on)*Eoss
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
Excellent thermal behaviour
Integrated ESD protection diode
Low switching losses (Eoss)
