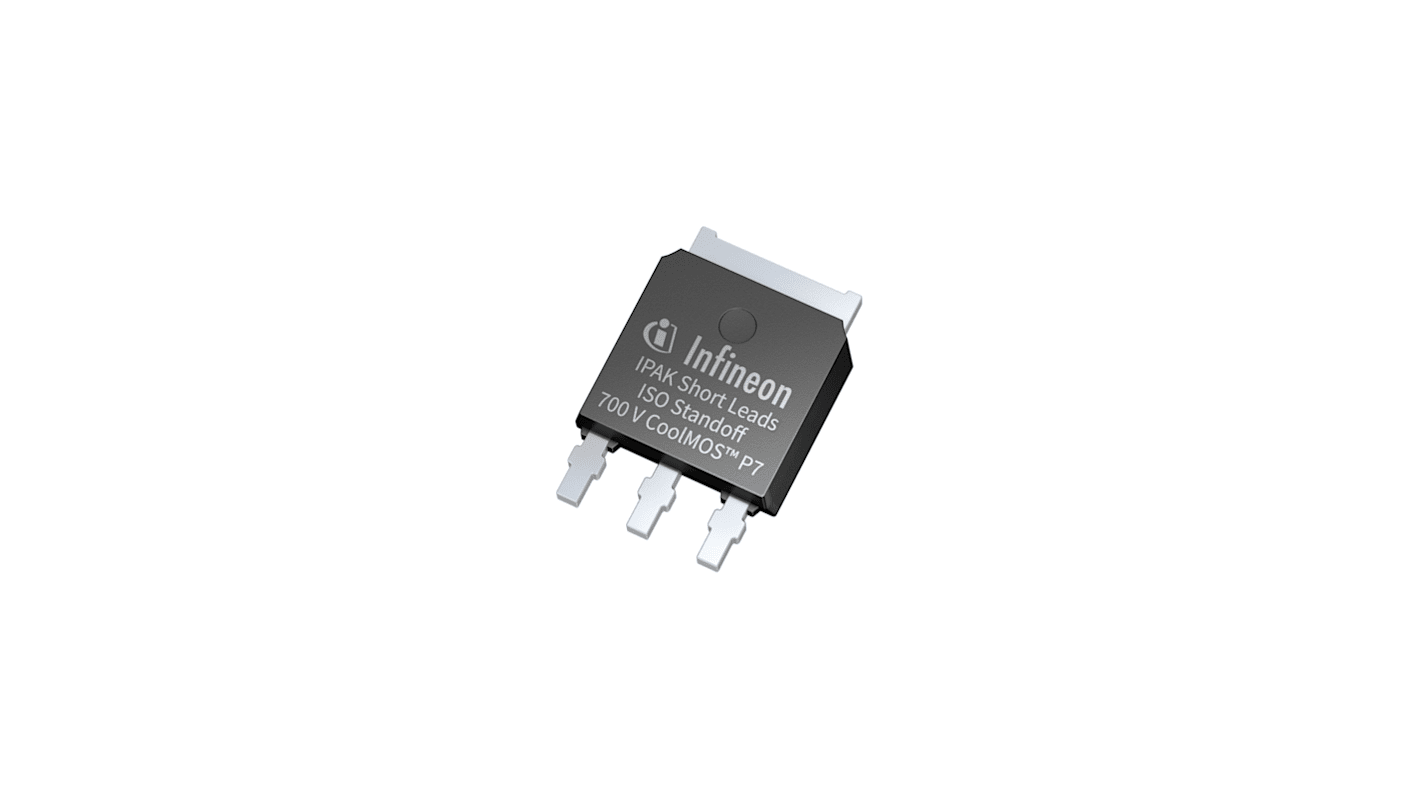

Infineon 700V CoolMOS P7 Type N-Channel MOSFET, 12.5 A, 700 V Enhancement, 3-Pin IPAK IPSA70R360P7SAKMA1
- RS Stock No.:
- 214-4422
- Mfr. Part No.:
- IPSA70R360P7SAKMA1
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 20 units)*
£10.24
(exc. VAT)
£12.28
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1,240 unit(s) shipping from 26 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 80 | £0.512 | £10.24 |
| 100 - 180 | £0.394 | £7.88 |
| 200 - 480 | £0.369 | £7.38 |
| 500 - 980 | £0.343 | £6.86 |
| 1000 + | £0.318 | £6.36 |
*price indicative
- RS Stock No.:
- 214-4422
- Mfr. Part No.:
- IPSA70R360P7SAKMA1
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 12.5A | |
| Maximum Drain Source Voltage Vds | 700V | |
| Series | 700V CoolMOS P7 | |
| Package Type | IPAK | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 360mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 16.4nC | |
| Forward Voltage Vf | 0.9V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Power Dissipation Pd | 59.5W | |
| Maximum Gate Source Voltage Vgs | 16 V | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | No | |
| Height | 2.3mm | |
| Length | 6.6mm | |
| Width | 6.1 mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 12.5A | ||
Maximum Drain Source Voltage Vds 700V | ||
Series 700V CoolMOS P7 | ||
Package Type IPAK | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 360mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 16.4nC | ||
Forward Voltage Vf 0.9V | ||
Minimum Operating Temperature -40°C | ||
Maximum Power Dissipation Pd 59.5W | ||
Maximum Gate Source Voltage Vgs 16 V | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals No | ||
Height 2.3mm | ||
Length 6.6mm | ||
Width 6.1 mm | ||
Automotive Standard No | ||
The 700V Cool MOS P7 super junction MOSFET series addresses the low power SMPS market, such as mobile phone chargers or notebook adapters by offering fundamental performance gains.
It supports less magnetic size with lower BOM costs
It has high ESD ruggedness
