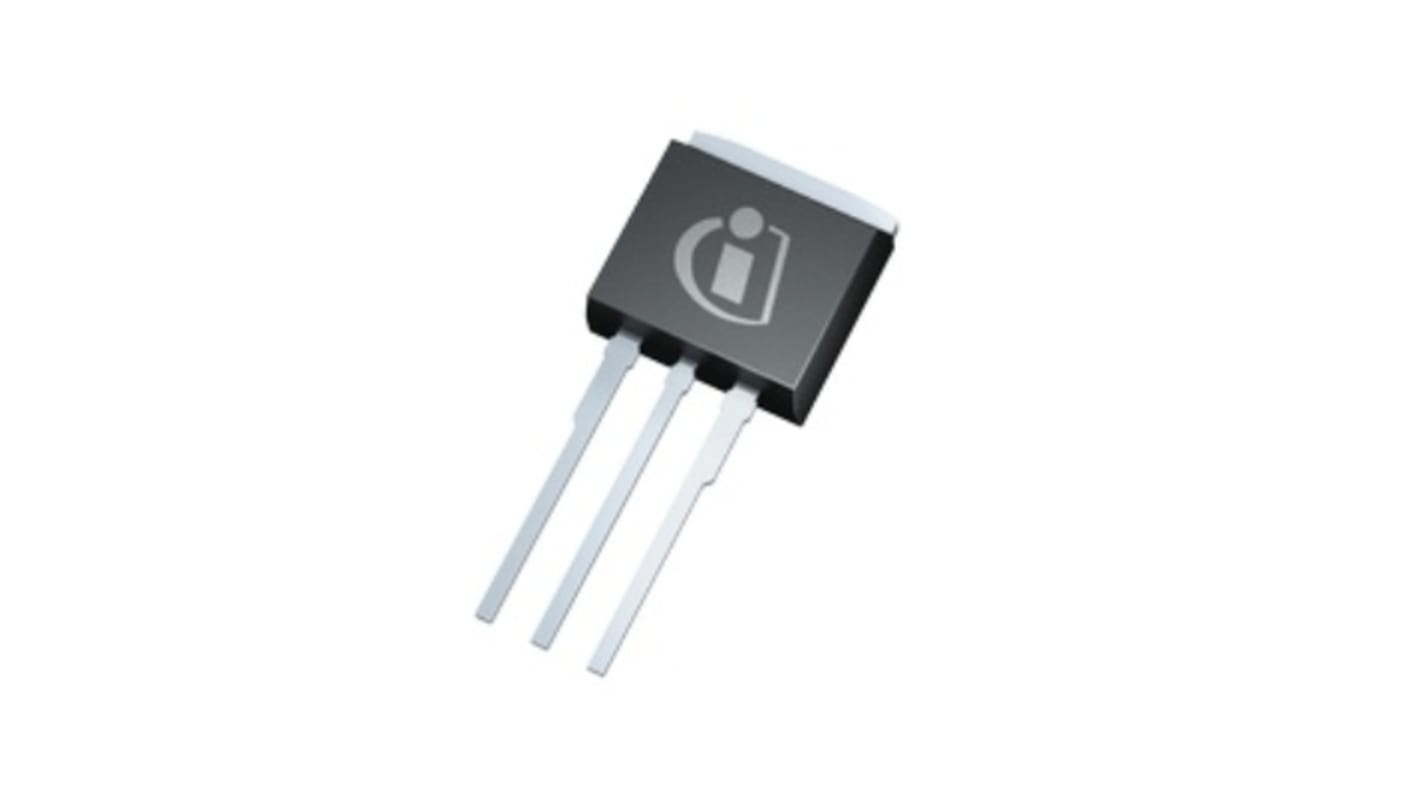

Infineon OptiMOS-T2 Type N-Channel MOSFET, 80 A, 60 V Enhancement, 3-Pin TO-262
- RS Stock No.:
- 214-9067
- Mfr. Part No.:
- IPI80N06S4L07AKSA2
- Brand:
- Infineon
Bulk discount available
Subtotal (1 tube of 50 units)*
£30.05
(exc. VAT)
£36.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 250 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 50 - 50 | £0.601 | £30.05 |
| 100 - 200 | £0.584 | £29.20 |
| 250 - 450 | £0.569 | £28.45 |
| 500 - 950 | £0.554 | £27.70 |
| 1000 + | £0.541 | £27.05 |
*price indicative
- RS Stock No.:
- 214-9067
- Mfr. Part No.:
- IPI80N06S4L07AKSA2
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 80A | |
| Maximum Drain Source Voltage Vds | 60V | |
| Package Type | TO-262 | |
| Series | OptiMOS-T2 | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 6.7mΩ | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 58nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 79W | |
| Maximum Gate Source Voltage Vgs | 16 V | |
| Forward Voltage Vf | 1.3V | |
| Maximum Operating Temperature | 175°C | |
| Height | 23.45mm | |
| Standards/Approvals | No | |
| Width | 4.4 mm | |
| Length | 10.2mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 80A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type TO-262 | ||
Series OptiMOS-T2 | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 6.7mΩ | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 58nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 79W | ||
Maximum Gate Source Voltage Vgs 16 V | ||
Forward Voltage Vf 1.3V | ||
Maximum Operating Temperature 175°C | ||
Height 23.45mm | ||
Standards/Approvals No | ||
Width 4.4 mm | ||
Length 10.2mm | ||
Automotive Standard AEC-Q101 | ||
The Infineon range of new OptiMOS -T2 has a range of energy efficient MOSFET transistors with CO2 reduction and electric drives. The new OptiMOS -T2 product family extends the existing families of OptiMOS -T and OptiMOS. OptiMOS products are available in high performance packages to tackle the most challenging applications giving full flexibility in limited spaces. These Infineon products are designed to meet and exceed the energy efficiency and power density requirements of the sharpened next generation voltage regulation standards in computing applications.
The product is AEC Q101 qualified
It has 175°C operating temperature
100% Avalanche tested
