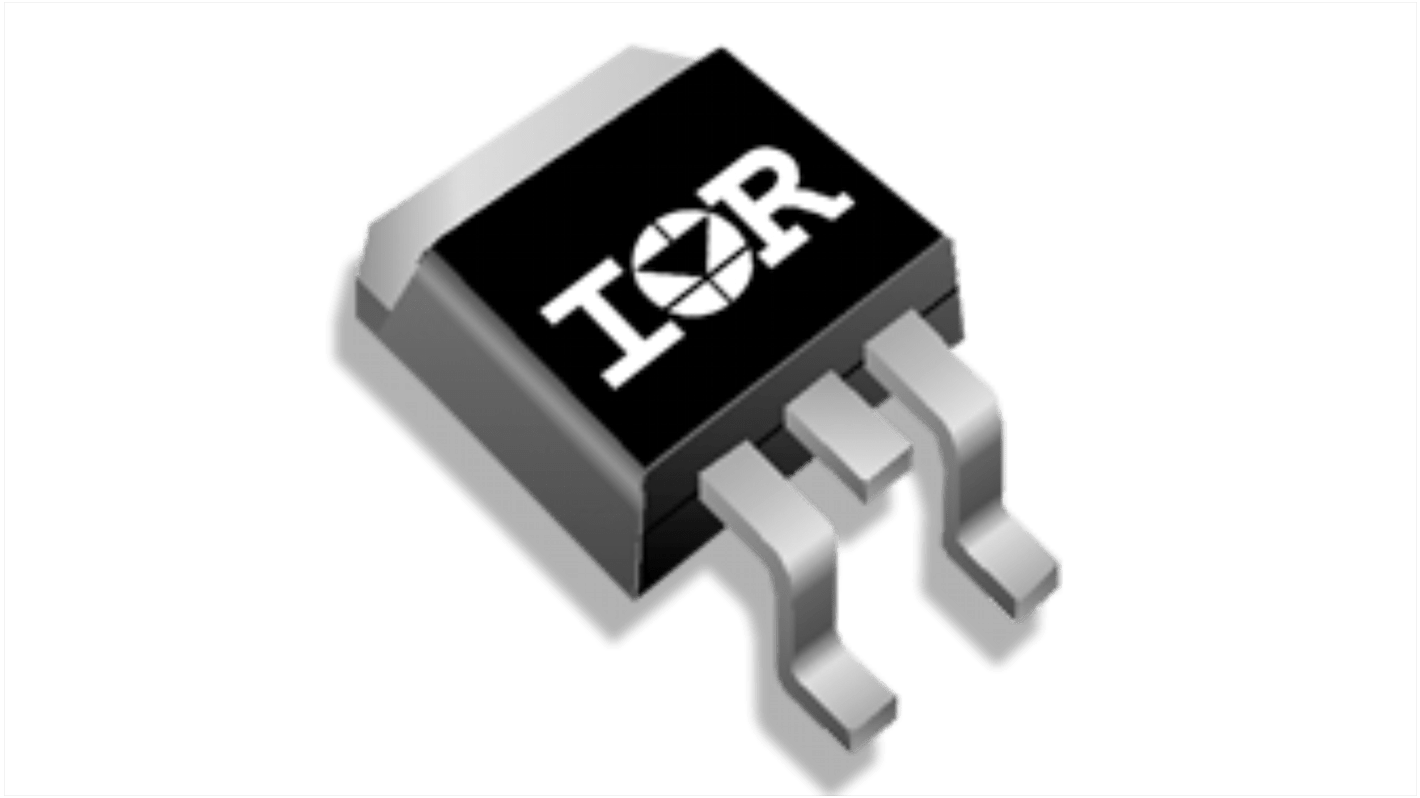

Infineon HEXFET Type N-Channel MOSFET, 82 A, 75 V, 3-Pin TO-263 IRF2807STRLPBF
- RS Stock No.:
- 214-4444
- Mfr. Part No.:
- IRF2807STRLPBF
- Brand:
- Infineon
Bulk discount available
Subtotal (1 pack of 10 units)*
£12.30
(exc. VAT)
£14.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 850 unit(s) ready to ship
- Plus 2,550 unit(s) shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 40 | £1.23 | £12.30 |
| 50 - 90 | £1.169 | £11.69 |
| 100 - 240 | £1.119 | £11.19 |
| 250 - 490 | £1.07 | £10.70 |
| 500 + | £0.996 | £9.96 |
*price indicative
- RS Stock No.:
- 214-4444
- Mfr. Part No.:
- IRF2807STRLPBF
- Brand:
- Infineon
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 82A | |
| Maximum Drain Source Voltage Vds | 75V | |
| Package Type | TO-263 | |
| Series | HEXFET | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 13mΩ | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 230W | |
| Typical Gate Charge Qg @ Vgs | 160nC | |
| Forward Voltage Vf | 1.2V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Distrelec Product Id | 304-39-413 | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 82A | ||
Maximum Drain Source Voltage Vds 75V | ||
Package Type TO-263 | ||
Series HEXFET | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 13mΩ | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 230W | ||
Typical Gate Charge Qg @ Vgs 160nC | ||
Forward Voltage Vf 1.2V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals No | ||
Automotive Standard No | ||
Distrelec Product Id 304-39-413 | ||
- COO (Country of Origin):
- CN
This Infineon HEXFET Power MOSFET utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit combined with the fast switching speed and ruggedized device design provides reliable and efficient device
It is fully avalanche rated
