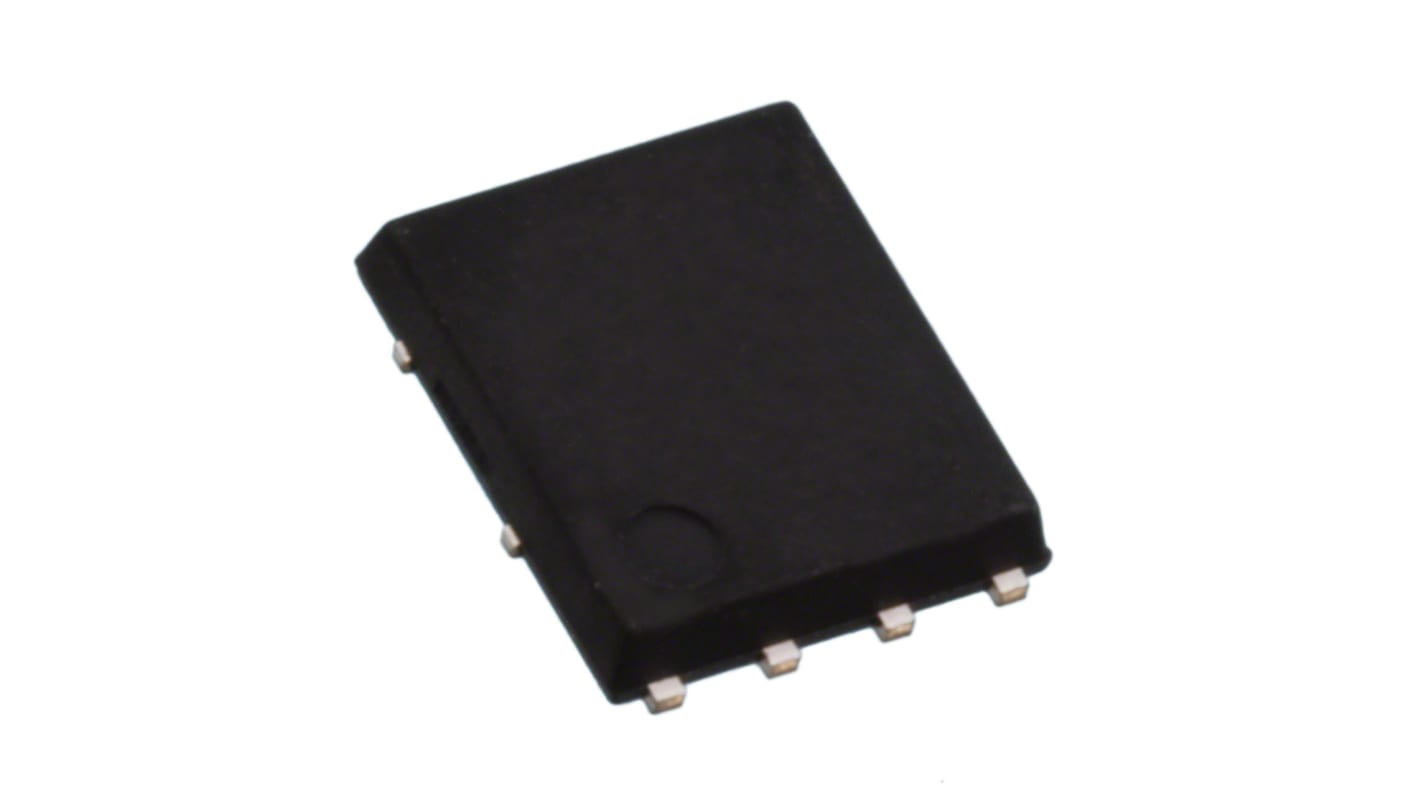

DiodesZetex DMTH15H017SPS Type N-Channel MOSFET, 61 A, 150 V Enhancement, 8-Pin PowerDI5060 DMTH15H017SPS-13

View all MOSFETs
Bulk discount available

Subtotal (1 pack of 5 units)*

£7.98

(exc. VAT)

£9.575

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
5 - 45£1.596£7.98
50 - 95£1.552£7.76
100 - 245£1.508£7.54
250 - 995£1.472£7.36
1000 +£1.436£7.18

*price indicative

Packaging Options:
RS Stock No.:
213-9232
Mfr. Part No.:
DMTH15H017SPS-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Channel Type

Type N

Product Type

MOSFET

Maximum Continuous Drain Current Id

61A

Maximum Drain Source Voltage Vds

150V

Package Type

PowerDI5060

Series

DMTH15H017SPS

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

190mΩ

Channel Mode

Enhancement

Forward Voltage Vf

1.2V

Maximum Gate Source Voltage Vgs

20 V

Maximum Power Dissipation Pd

1.5W

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

175°C

Height

1mm

Length

6.15mm

Width

5.15 mm

Standards/Approvals

No

Automotive Standard

No

The DiodesZetex DMTH15H017SPS series is N-channel MOSFET. It is ideally used in battery power management, load switch, motor control and DC-DC converters.

Low input capacitance

Fast switching speed
