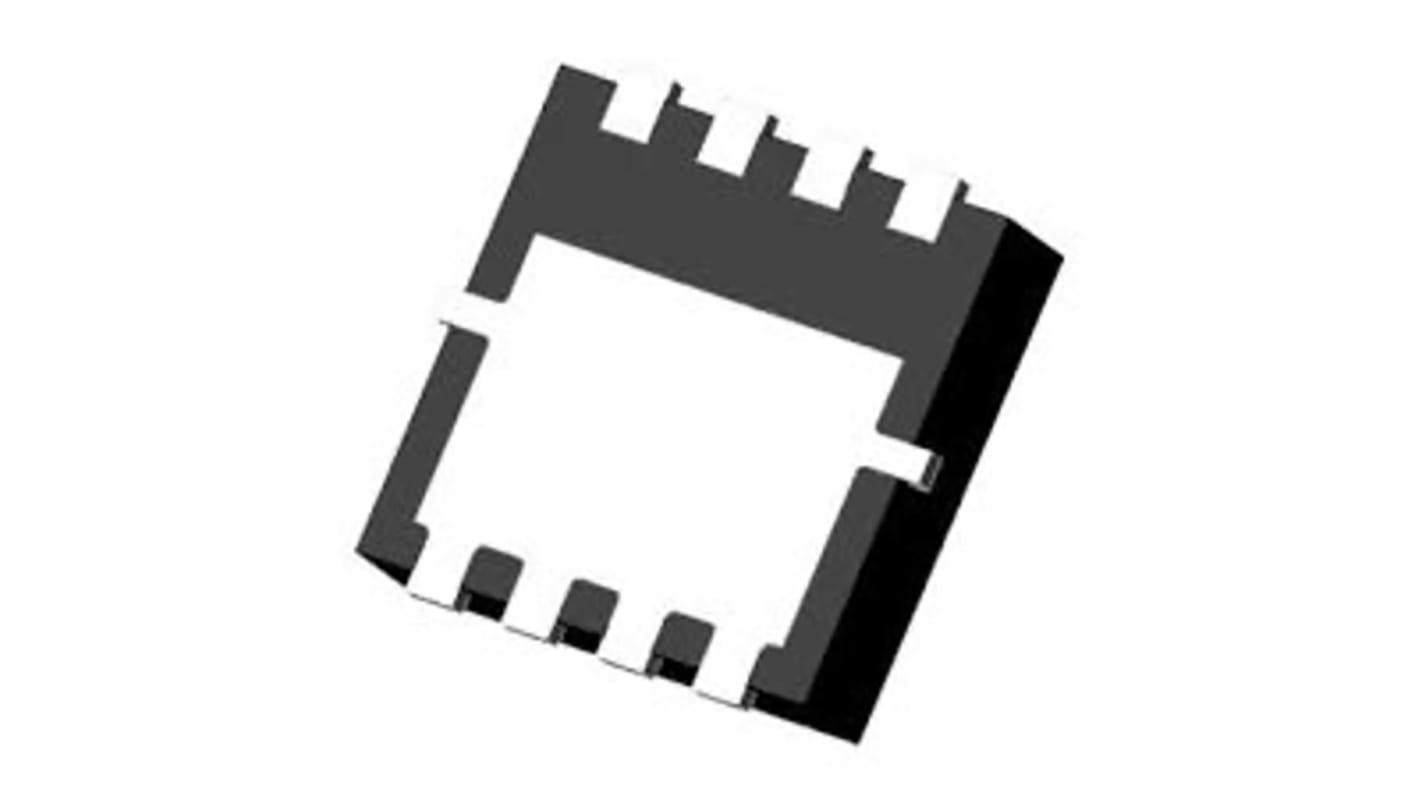

DiodesZetex DMP4013 Type P-Channel MOSFET, 61 A, 40 V Enhancement, 8-Pin PowerDI5060

View all MOSFETs

Subtotal (1 reel of 2500 units)*

£962.50

(exc. VAT)

£1,155.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 04 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.385£962.50

*price indicative

RS Stock No.:
206-0131
Mfr. Part No.:
DMP4013SPS-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Channel Type

Type P

Product Type

MOSFET

Maximum Continuous Drain Current Id

61A

Maximum Drain Source Voltage Vds

40V

Series

DMP4013

Package Type

PowerDI5060

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

23mΩ

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

20 V

Maximum Power Dissipation Pd

1.6W

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

67nC

Forward Voltage Vf

-1.2V

Maximum Operating Temperature

150°C

Standards/Approvals

No

Length

6.15mm

Height

0.9mm

Width

5.15 mm

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN
The DiodesZetex 40V,8 pin P- channel enhancement mode MOSFET is designed to minimize the on-state resistance yet maintain superior switching performance, making it ideal for high-efficiency power management application. Its gate-source voltage is 20V with 1.6 W thermal power dissipation.

Low on-resistance

Fast switching speed
