Vishay SQJQ148E Type N-Channel MOSFET, 375 A, 40 V Enhancement, 4-Pin PowerPAK (8x8L) SQJQ148E-T1_GE3
- RS Stock No.:
- 210-5060
- Mfr. Part No.:
- SQJQ148E-T1_GE3
- Brand:
- Vishay
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 210-5060
- Mfr. Part No.:
- SQJQ148E-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 375A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | PowerPAK (8x8L) | |
| Series | SQJQ148E | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 1.3mΩ | |
| Channel Mode | Enhancement | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 1.1V | |
| Maximum Power Dissipation Pd | 325W | |
| Typical Gate Charge Qg @ Vgs | 69nC | |
| Maximum Operating Temperature | 175°C | |
| Height | 1.7mm | |
| Standards/Approvals | No | |
| Length | 8mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 375A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type PowerPAK (8x8L) | ||
Series SQJQ148E | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 1.3mΩ | ||
Channel Mode Enhancement | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 1.1V | ||
Maximum Power Dissipation Pd 325W | ||
Typical Gate Charge Qg @ Vgs 69nC | ||
Maximum Operating Temperature 175°C | ||
Height 1.7mm | ||
Standards/Approvals No | ||
Length 8mm | ||
Automotive Standard AEC-Q101 | ||

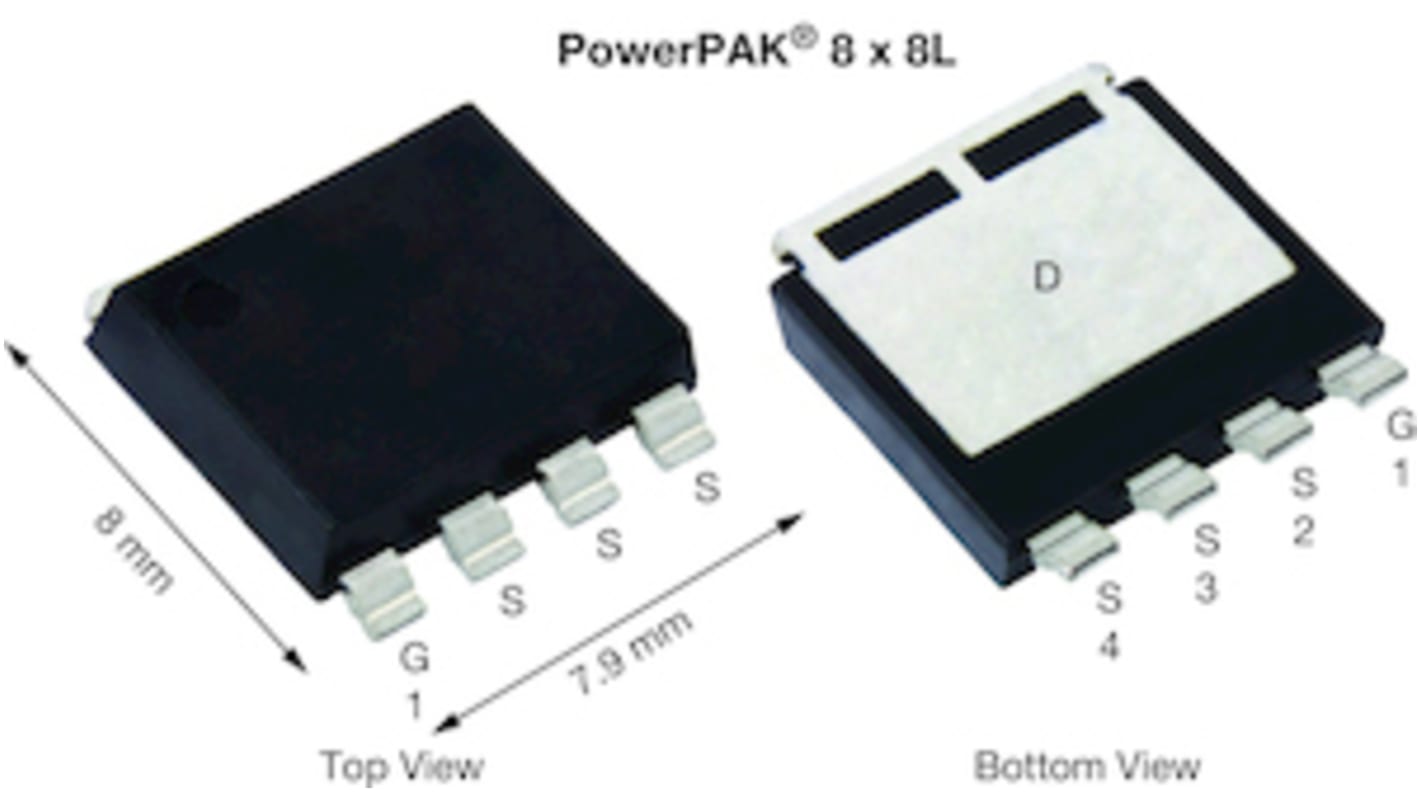

The Vishay Automotive N-Channel 40 V (D-S) 175 °C MOSFET has PowerPAK 8 x 8L package type with 375 A drain current.
TrenchFET Gen IV power MOSFET
AEC-Q101 qualified
100 % Rg and UIS tested
Thin 1.6 mm package
Very low thermal resistance
