Vishay SQJQ142E Type N-Channel MOSFET, 460 A, 40 V Enhancement, 4-Pin PowerPAK (8x8L) SQJQ142E-T1_GE3
- RS Stock No.:
- 210-5058
- Mfr. Part No.:
- SQJQ142E-T1_GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£8.86
(exc. VAT)
£10.63
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £1.772 | £8.86 |
| 50 - 120 | £1.596 | £7.98 |
| 125 - 245 | £1.33 | £6.65 |
| 250 - 495 | £1.064 | £5.32 |
| 500 + | £0.886 | £4.43 |
*price indicative
- RS Stock No.:
- 210-5058
- Mfr. Part No.:
- SQJQ142E-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 460A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Series | SQJQ142E | |
| Package Type | PowerPAK (8x8L) | |
| Mount Type | Surface | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance Rds | 1mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.1V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 92nC | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 500W | |
| Maximum Operating Temperature | 175°C | |
| Length | 8mm | |
| Height | 1.7mm | |
| Standards/Approvals | No | |
| Width | 8.1 mm | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 460A | ||
Maximum Drain Source Voltage Vds 40V | ||
Series SQJQ142E | ||
Package Type PowerPAK (8x8L) | ||
Mount Type Surface | ||
Pin Count 4 | ||
Maximum Drain Source Resistance Rds 1mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.1V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 92nC | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 500W | ||
Maximum Operating Temperature 175°C | ||
Length 8mm | ||
Height 1.7mm | ||
Standards/Approvals No | ||
Width 8.1 mm | ||
Automotive Standard AEC-Q101 | ||

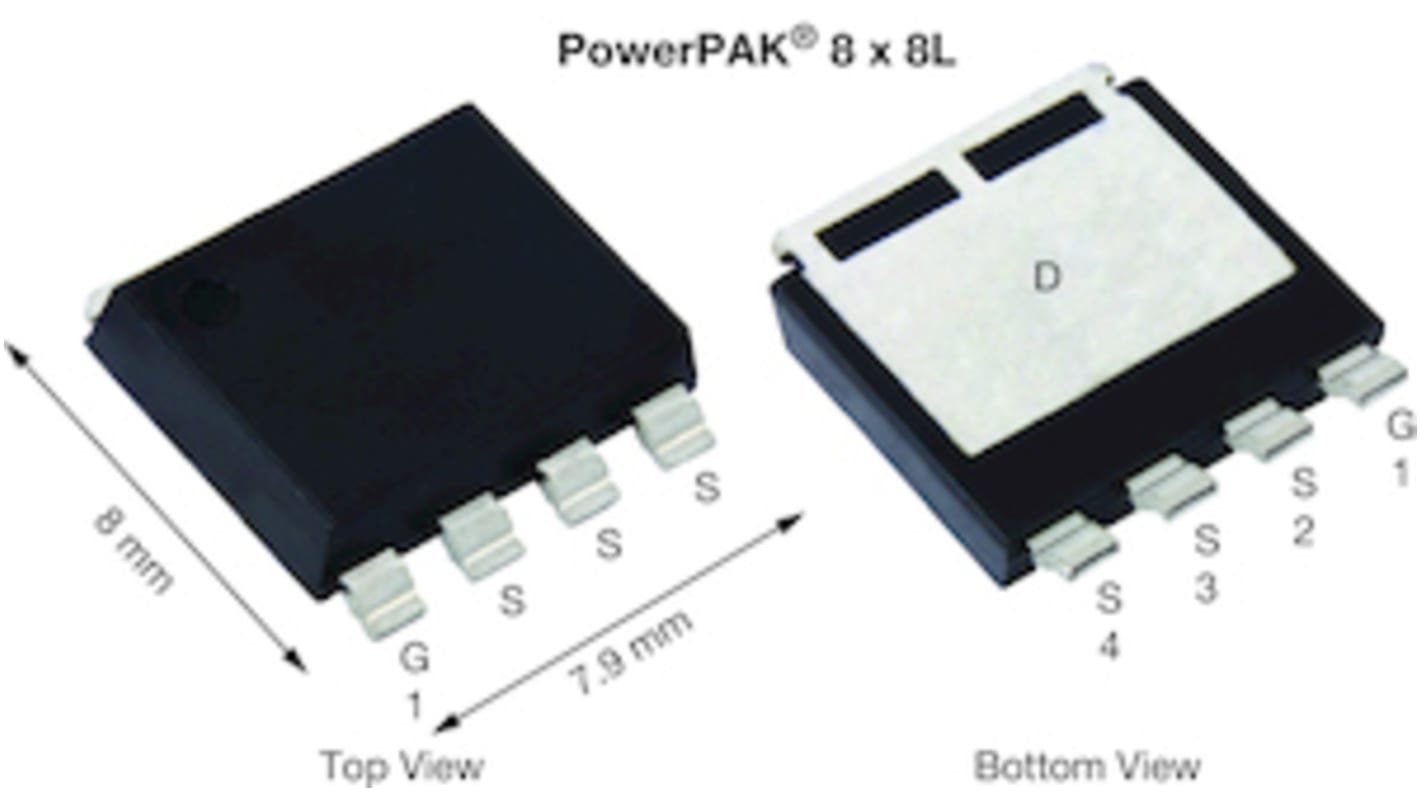

The Vishay Automotive N-Channel 40 V (D-S) 175 °C MOSFET has PowerPAK 8 x 8L package type.
TrenchFET® Gen IV power MOSFET
AEC-Q101 qualified
100 % Rg and UIS tested
Thin 1.6 mm package
Very low thermal resistance
