Vishay EF Type N-Channel MOSFET, 8.4 A, 600 V Enhancement, 3-Pin TO-247
- RS Stock No.:
- 210-4987
- Mfr. Part No.:
- SiHG186N60EF-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 tube of 25 units)*
£43.25
(exc. VAT)
£52.00
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 300 unit(s), ready to ship
Units | Per unit | Per Tube* |
|---|---|---|
| 25 - 25 | £1.73 | £43.25 |
| 50 - 100 | £1.626 | £40.65 |
| 125 - 225 | £1.47 | £36.75 |
| 250 - 600 | £1.391 | £34.78 |
| 625 + | £1.356 | £33.90 |
*price indicative
- RS Stock No.:
- 210-4987
- Mfr. Part No.:
- SiHG186N60EF-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 8.4A | |
| Maximum Drain Source Voltage Vds | 600V | |
| Package Type | TO-247 | |
| Series | EF | |
| Mount Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 168mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.2V | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 21nC | |
| Maximum Power Dissipation Pd | 156W | |
| Maximum Gate Source Voltage Vgs | 30 V | |
| Maximum Operating Temperature | 150°C | |
| Length | 33.91mm | |
| Height | 4.58mm | |
| Width | 15.29 mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 8.4A | ||
Maximum Drain Source Voltage Vds 600V | ||
Package Type TO-247 | ||
Series EF | ||
Mount Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 168mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.2V | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 21nC | ||
Maximum Power Dissipation Pd 156W | ||
Maximum Gate Source Voltage Vgs 30 V | ||
Maximum Operating Temperature 150°C | ||
Length 33.91mm | ||
Height 4.58mm | ||
Width 15.29 mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||

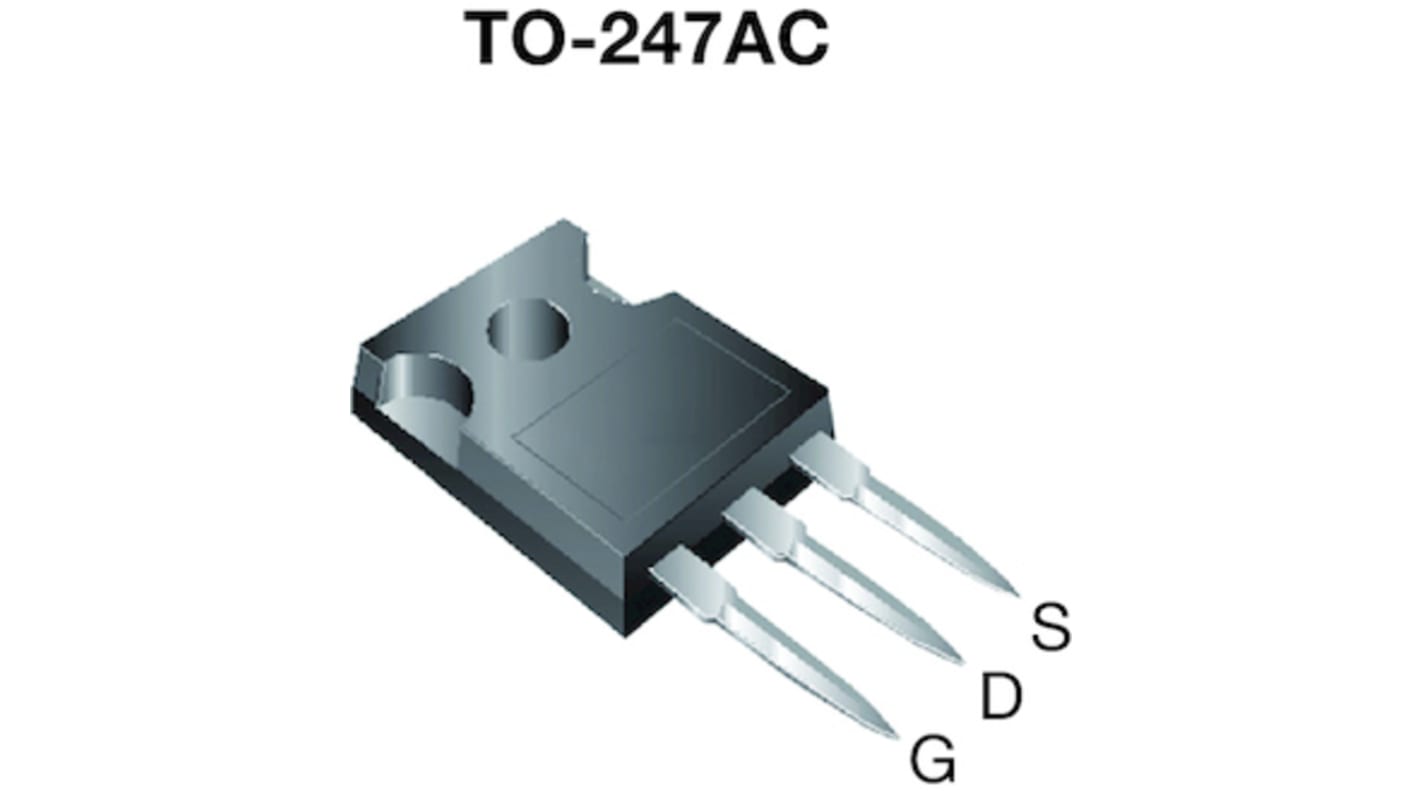

The Vishay EF Series Power MOSFET With Fast Body Diode has TO-247AC package type.
4th generation E series technology
Low figure-of-merit (FOM) Ron x Qg
Low effective capacitance (Co(er))
Reduced switching and conduction losses
Avalanche energy rated (UIS)
