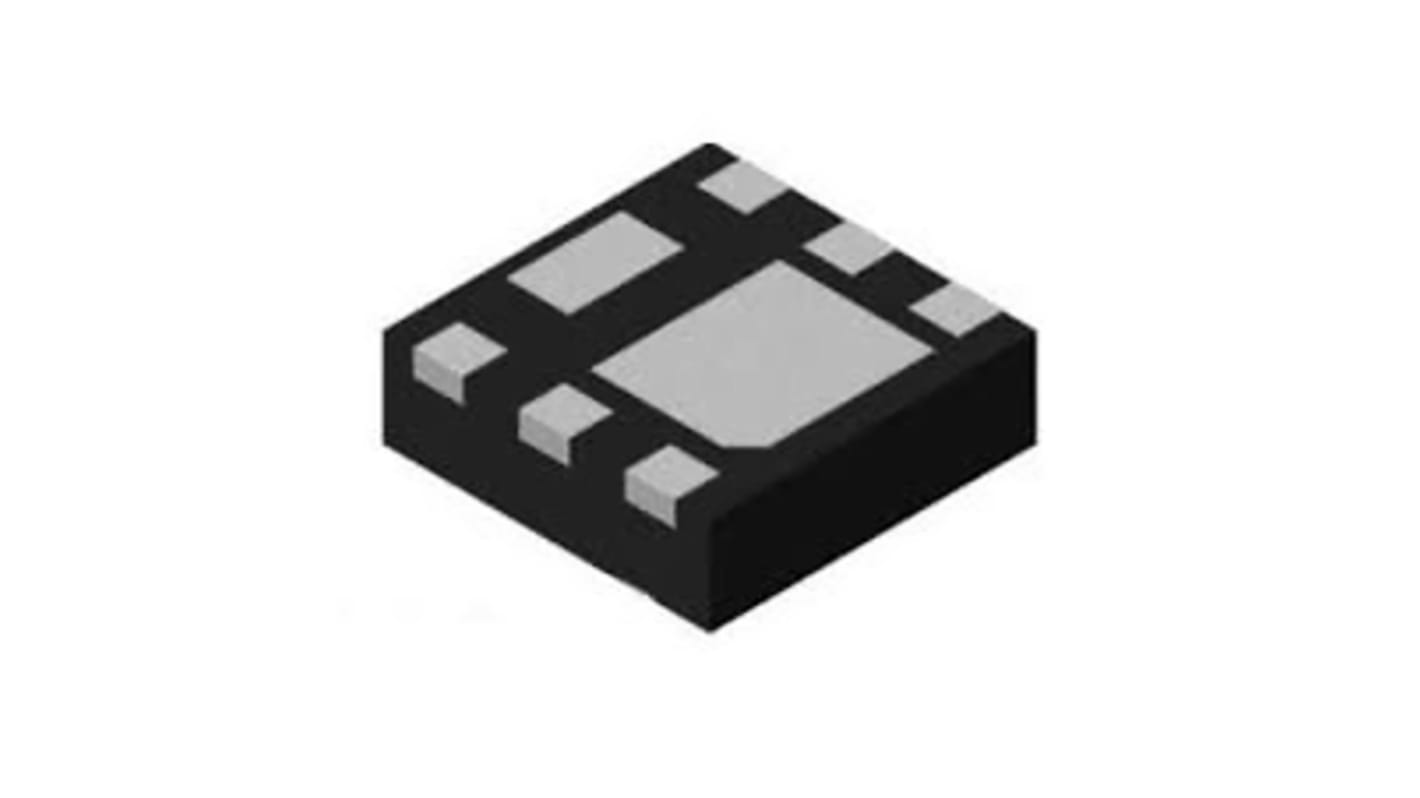

DiodesZetex DMP1009 Type P-Channel MOSFET, 15 A, 12 V Enhancement, 6-Pin UDFN DMP1009UFDFQ-7

View all MOSFETs

Subtotal (1 pack of 25 units)*

£7.90

(exc. VAT)

£9.475

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 6,000 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
25 +£0.316£7.90

*price indicative

Packaging Options:
RS Stock No.:
206-0107
Mfr. Part No.:
DMP1009UFDFQ-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Channel Type

Type P

Product Type

MOSFET

Maximum Continuous Drain Current Id

15A

Maximum Drain Source Voltage Vds

12V

Package Type

UDFN

Series

DMP1009

Mount Type

Surface

Pin Count

6

Maximum Drain Source Resistance Rds

30mΩ

Channel Mode

Enhancement

Typical Gate Charge Qg @ Vgs

26nC

Minimum Operating Temperature

-55°C

Forward Voltage Vf

-1.2V

Maximum Power Dissipation Pd

0.8W

Maximum Gate Source Voltage Vgs

8 V

Maximum Operating Temperature

150°C

Width

1.95 mm

Length

1.95mm

Standards/Approvals

No

Height

0.57mm

Automotive Standard

AEC-Q200, AEC-Q101, AEC-Q100

COO (Country of Origin):
CN
The DiodesZetex 12V N channel enhancement mode MOSFET is designed to meet the stringent requirements of automotive application. It is qualified to AEC-Q101, supported by a PPAP, and is ideal for use in DC-DC converter and battery management application.

Low on-resistance

Low input capacitance
