DiodesZetex Type P-Channel MOSFET, 10.7 A, 12 V Enhancement, 6-Pin UDFN-2020

View all MOSFETs

Subtotal (1 reel of 3000 units)*

£309.00

(exc. VAT)

£372.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 3,000 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3000 +£0.103£309.00

*price indicative

RS Stock No.:
246-6817
Mfr. Part No.:
DMP2016UFDF-7
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

MOSFET

Channel Type

Type P

Maximum Continuous Drain Current Id

10.7A

Maximum Drain Source Voltage Vds

12V

Package Type

UDFN-2020

Mount Type

Surface

Pin Count

6

Maximum Drain Source Resistance Rds

41mΩ

Channel Mode

Enhancement

Minimum Operating Temperature

-55°C

Forward Voltage Vf

1.2V

Maximum Gate Source Voltage Vgs

8 V

Maximum Power Dissipation Pd

1.73W

Maximum Operating Temperature

175°C

Length

2.05mm

Standards/Approvals

No

Width

2.05 mm

Height

0.63mm

Automotive Standard

AEC-Q101

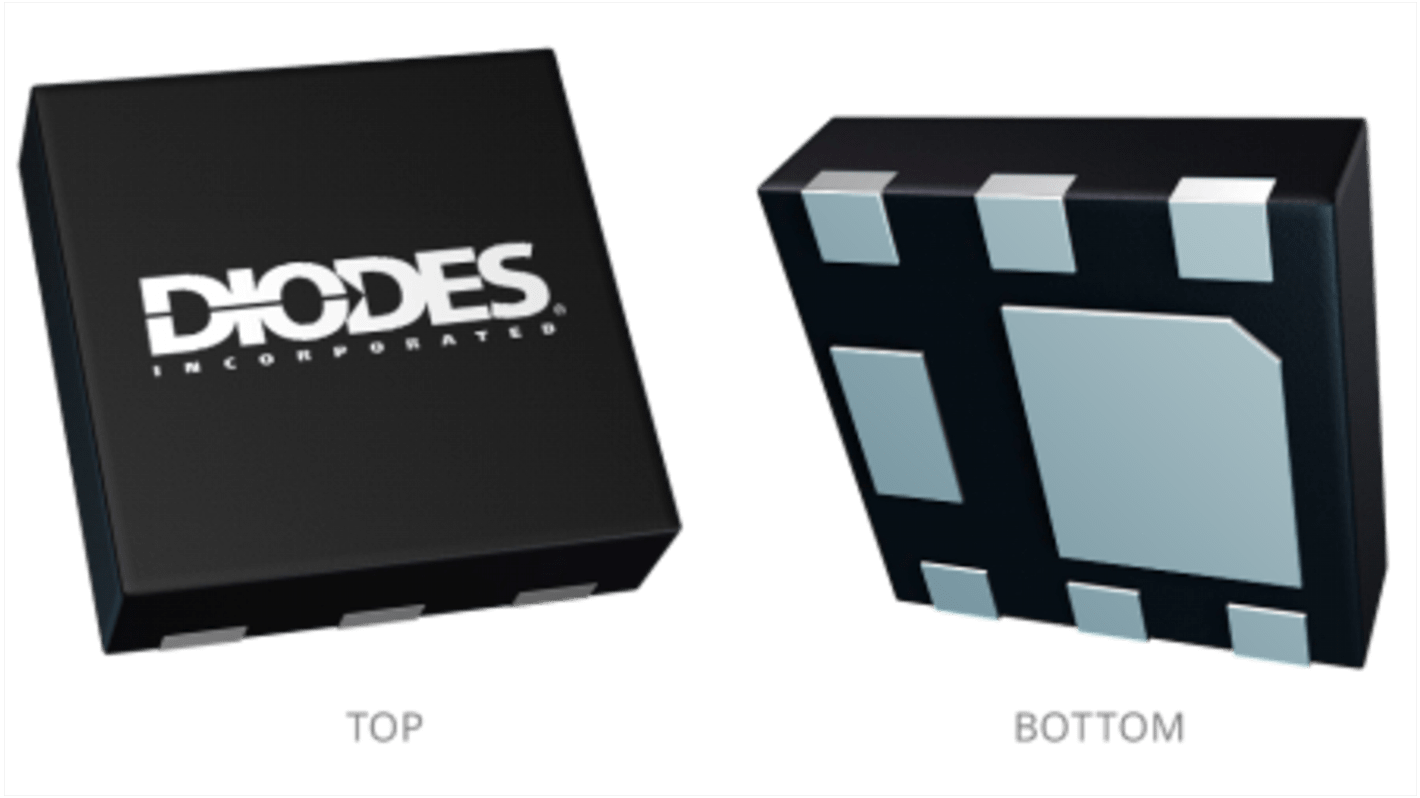

The DiodesZetex makes a P-channel enhancement mode MOSFET, designed to minimize the on-state resistance (RDS(ON)) yet maintain superior switching performance, making it ideal for high-efficiency power management applications. It is a green device and, totally Lead, halogen and Antimony free. This MOSFET comes in U-DFN2020-6 packaging and 0.6mm profile makes it ideal for low profile applications . It offers fast switching and high efficiency. Its 100% unclamped inductive switching ensures more reliable and robust end application.

Maximum drain to source voltage is 20 V Maximum gate to source voltage is ±8 V It has PCB Footprint of 4mm^2 It offers low gate threshold voltage It provides an ESD protected Gate
