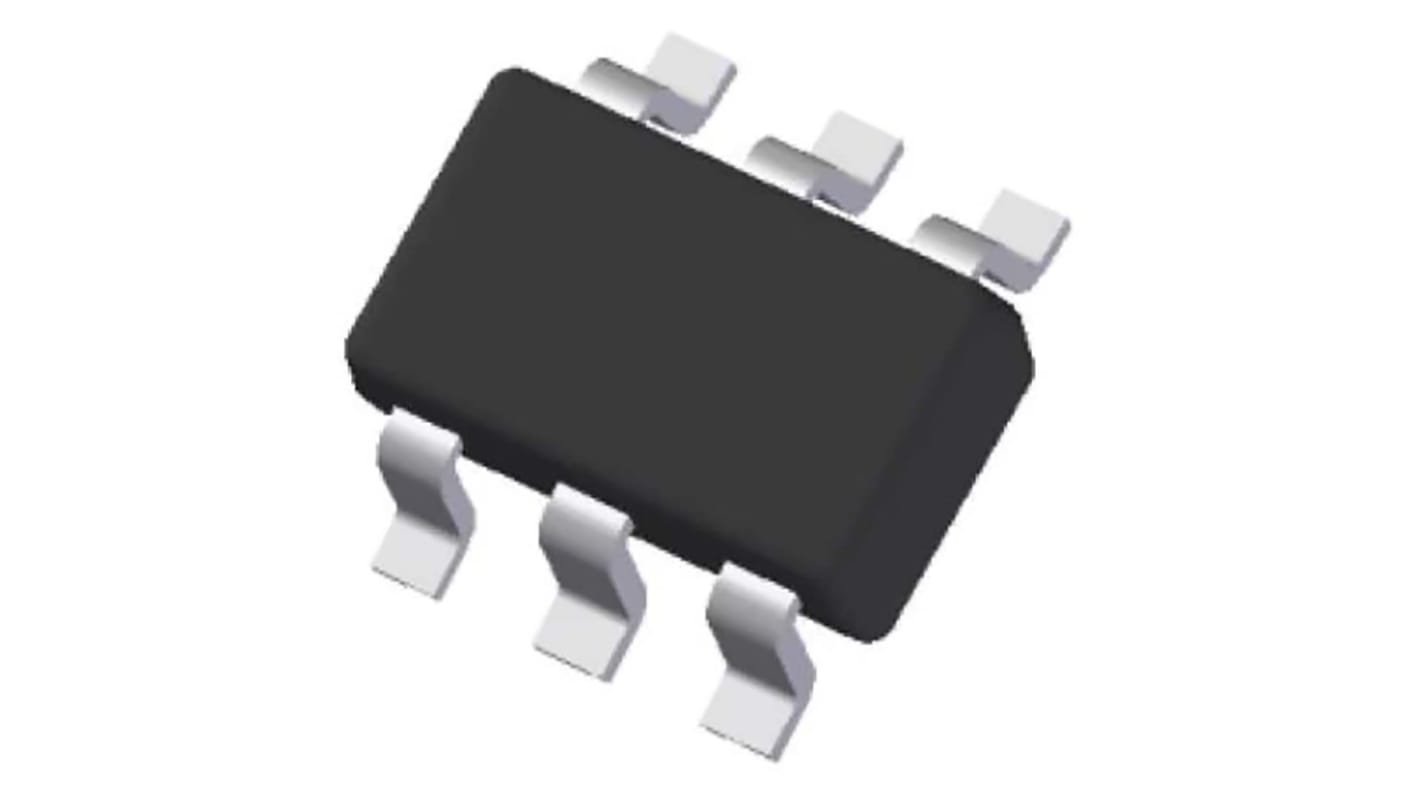

DiodesZetex Dual DMN3401 2 Type N-Channel MOSFET, 800 mA, 30 V Enhancement, 6-Pin SOT-363 DMN3401LDW-7
- RS Stock No.:
- 206-0084
- Mfr. Part No.:
- DMN3401LDW-7
- Brand:
- DiodesZetex
Bulk discount available
Subtotal (1 reel of 3000 units)*
£177.00
(exc. VAT)
£213.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 - 6000 | £0.059 | £177.00 |
| 9000 - 21000 | £0.057 | £171.00 |
| 24000 - 42000 | £0.056 | £168.00 |
| 45000 + | £0.054 | £162.00 |
*price indicative
- RS Stock No.:
- 206-0084
- Mfr. Part No.:
- DMN3401LDW-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 800mA | |
| Maximum Drain Source Voltage Vds | 30V | |
| Package Type | SOT-363 | |
| Series | DMN3401 | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 700mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 1.2V | |
| Typical Gate Charge Qg @ Vgs | 0.5nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Gate Source Voltage Vgs | 20 V | |
| Maximum Power Dissipation Pd | 0.35W | |
| Maximum Operating Temperature | 150°C | |
| Transistor Configuration | Dual | |
| Height | 0.95mm | |
| Standards/Approvals | No | |
| Length | 2.15mm | |
| Width | 1.3 mm | |
| Number of Elements per Chip | 2 | |
| Automotive Standard | AEC-Q200, AEC-Q101, AEC-Q100 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 800mA | ||
Maximum Drain Source Voltage Vds 30V | ||
Package Type SOT-363 | ||
Series DMN3401 | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 700mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 1.2V | ||
Typical Gate Charge Qg @ Vgs 0.5nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Gate Source Voltage Vgs 20 V | ||
Maximum Power Dissipation Pd 0.35W | ||
Maximum Operating Temperature 150°C | ||
Transistor Configuration Dual | ||
Height 0.95mm | ||
Standards/Approvals No | ||
Length 2.15mm | ||
Width 1.3 mm | ||
Number of Elements per Chip 2 | ||
Automotive Standard AEC-Q200, AEC-Q101, AEC-Q100 | ||
- COO (Country of Origin):
- CN
The DiodesZetex 30V dual N- channel enhancement mode MOSFET is designed to minimize the on-state resistance yet maintain superior switching performance, making it ideal for high-efficiency power management application. Its gate-source voltage is 20 V with 0.29 W thermal power dissipation.
Low on-resistance
Low input capacitance
