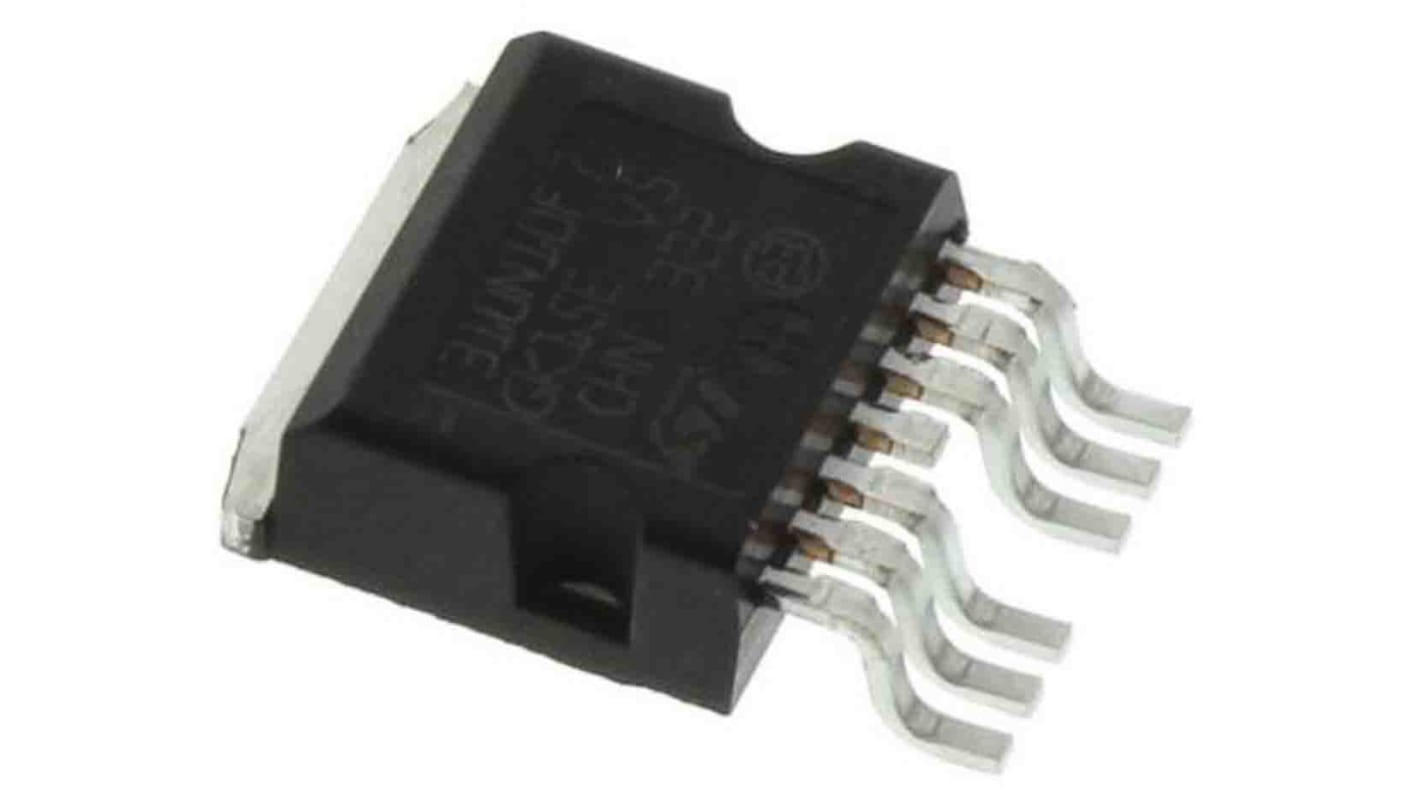

STMicroelectronics SCT Type N-Channel MOSFET, 100 A, 1200 V Depletion, 7-Pin H2PAK
- RS Stock No.:
- 202-5485
- Mfr. Part No.:
- SCTW100N65G2AG
- Brand:
- STMicroelectronics
Subtotal (1 tube of 30 units)*
£673.56
(exc. VAT)
£808.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 02 November 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £22.452 | £673.56 |
*price indicative
- RS Stock No.:
- 202-5485
- Mfr. Part No.:
- SCTW100N65G2AG
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | MOSFET | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 100A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | SCT | |
| Package Type | H2PAK | |
| Mount Type | Surface | |
| Pin Count | 7 | |
| Maximum Drain Source Resistance Rds | 0.105Ω | |
| Channel Mode | Depletion | |
| Maximum Power Dissipation Pd | 420W | |
| Typical Gate Charge Qg @ Vgs | 162nC | |
| Maximum Gate Source Voltage Vgs | 22 V | |
| Minimum Operating Temperature | -55°C | |
| Forward Voltage Vf | 2.8V | |
| Maximum Operating Temperature | 200°C | |
| Standards/Approvals | No | |
| Length | 15.75mm | |
| Width | 5.15 mm | |
| Height | 34.95mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type MOSFET | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 100A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series SCT | ||
Package Type H2PAK | ||
Mount Type Surface | ||
Pin Count 7 | ||
Maximum Drain Source Resistance Rds 0.105Ω | ||
Channel Mode Depletion | ||
Maximum Power Dissipation Pd 420W | ||
Typical Gate Charge Qg @ Vgs 162nC | ||
Maximum Gate Source Voltage Vgs 22 V | ||
Minimum Operating Temperature -55°C | ||
Forward Voltage Vf 2.8V | ||
Maximum Operating Temperature 200°C | ||
Standards/Approvals No | ||
Length 15.75mm | ||
Width 5.15 mm | ||
Height 34.95mm | ||
Automotive Standard No | ||
The STMicroelectronics automotive-grade silicon carbide power MOSFET has been developed using ST’s advanced and innovative 2nd generation SiC MOSFET technology. The device features remarkably low on-resistance per unit area and very good switching performance.
Very fast and robust intrinsic body diode
Low capacitance
