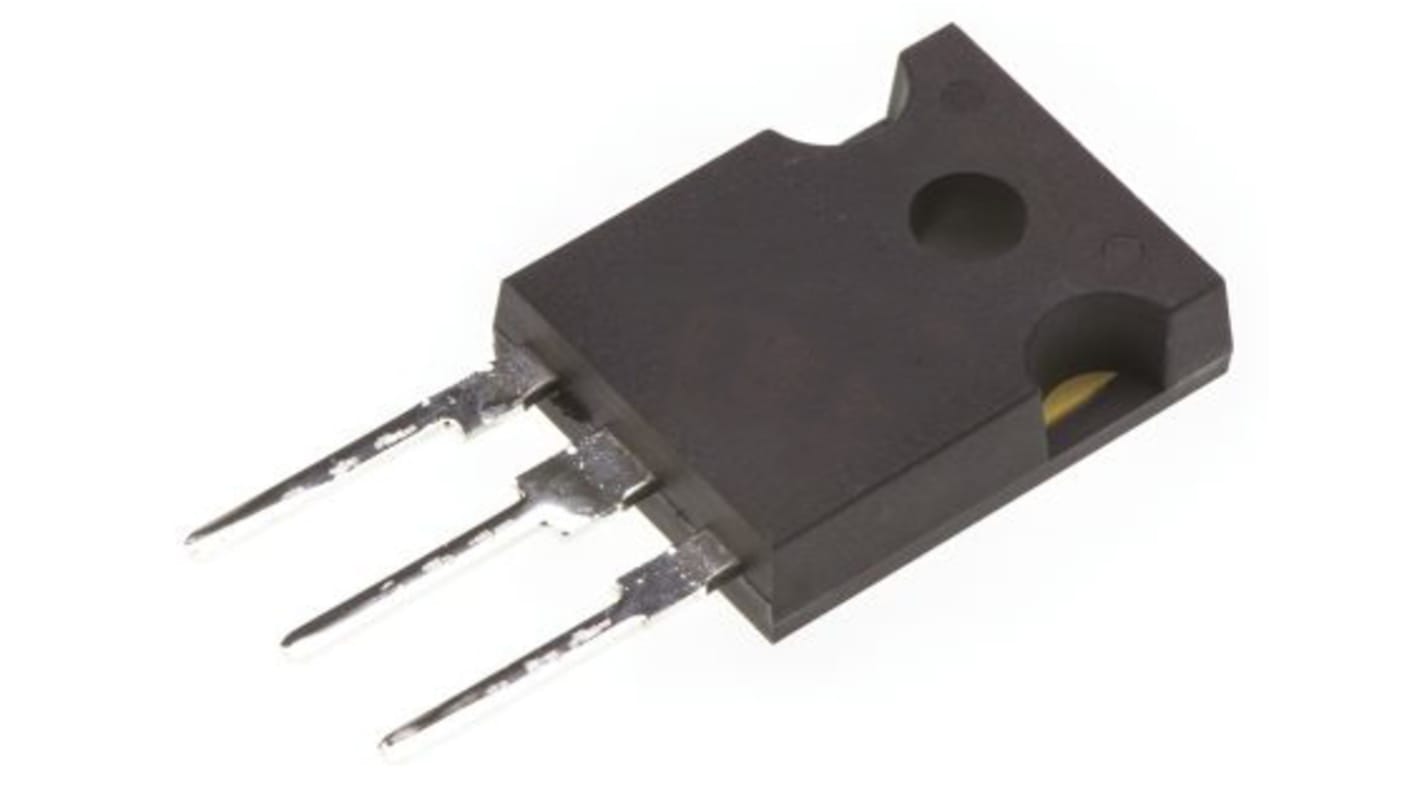

onsemi N-Channel MOSFET, 65 A, 650 V, 3-Pin TO-247 NTHL040N65S3HF

View all MOSFETs

Subtotal (1 pack of 2 units)*

£12.87

(exc. VAT)

£15.444

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 892 unit(s), ready to ship
Units
Per unit
Per Pack*
2 +£6.435£12.87

*price indicative

Packaging Options:
RS Stock No.:
195-2501
Mfr. Part No.:
NTHL040N65S3HF
Brand:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Channel Type

N

Maximum Continuous Drain Current

65 A

Maximum Drain Source Voltage

650 V

Package Type

TO-247

Mounting Type

Through Hole

Pin Count

3

Maximum Drain Source Resistance

40 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

5V

Minimum Gate Threshold Voltage

3V

Maximum Power Dissipation

446 W

Transistor Configuration

Single

Maximum Gate Source Voltage

±30 V

Number of Elements per Chip

1

Maximum Operating Temperature

+150 °C

Typical Gate Charge @ Vgs

159 @ 10 V nC

Length

15.87mm

Width

4.82mm

Forward Diode Voltage

1.3V

Minimum Operating Temperature

-55 °C

Height

20.82mm

SUPERFET III MOSFET is ON Semiconductor’s brand−new high voltage super−junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on−resistance and lower gate charge performance. This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate. Consequently, SUPERFET III MOSFET is very suitable for the various power systems for miniaturization and higher efficiency. SUPERFET III FRFET MOSFET’s optimized reverse recovery performance of body diode can remove additional component and improve system reliability.
