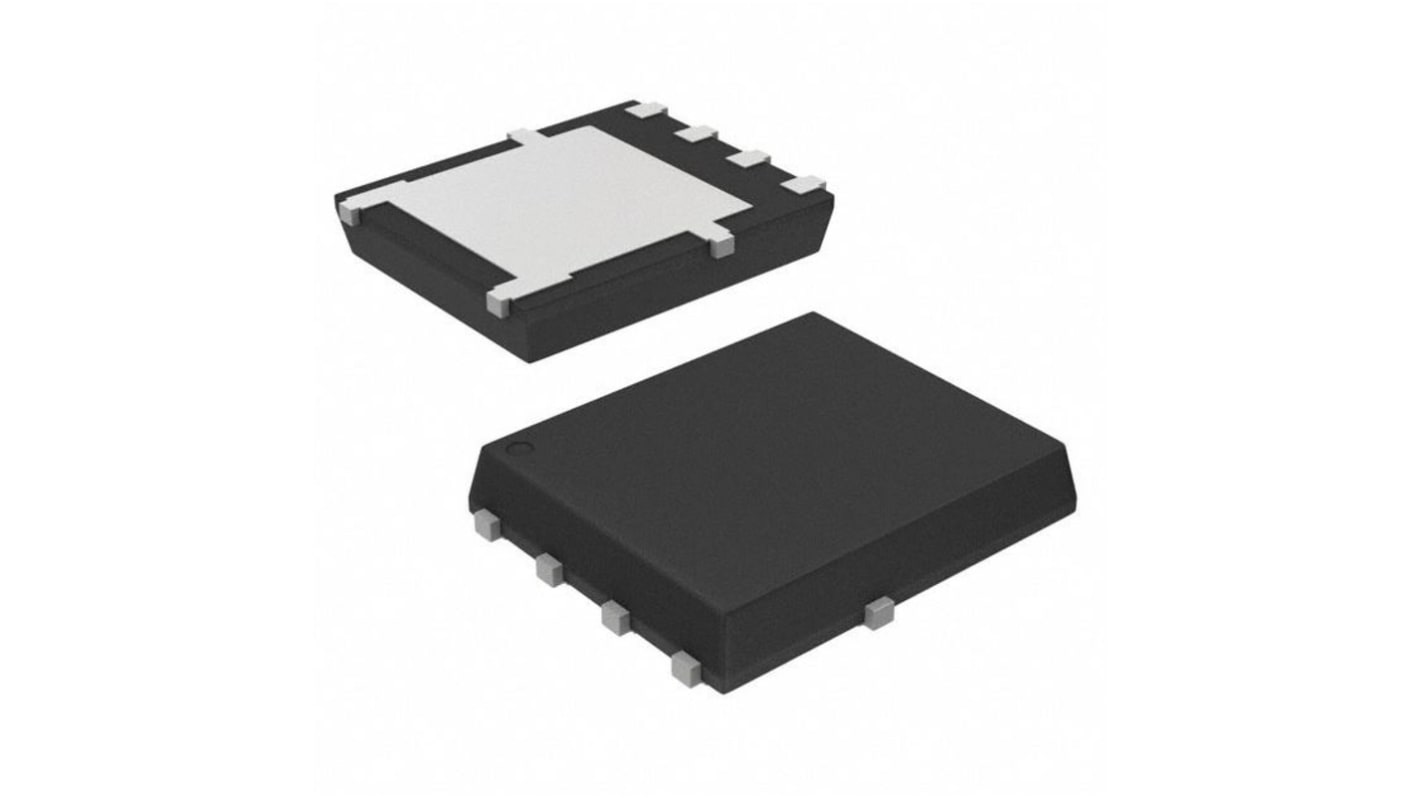

onsemi N-Channel MOSFET, 362 A, 40 V, 5-Pin DFN NVMFS5C406NLT1G
- RS Stock No.:
- 189-0435
- Mfr. Part No.:
- NVMFS5C406NLT1G
- Brand:
- onsemi
Subtotal (1 pack of 5 units)*
£19.00
(exc. VAT)
£22.80
(inc. VAT)
FREE delivery for orders over £50.00
- 1,295 unit(s) ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £3.80 | £19.00 |
| 50 - 95 | £3.276 | £16.38 |
| 100 + | £2.84 | £14.20 |
*price indicative
- RS Stock No.:
- 189-0435
- Mfr. Part No.:
- NVMFS5C406NLT1G
- Brand:
- onsemi
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 362 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | DFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 5 | |
| Maximum Drain Source Resistance | 1.1 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1.2V | |
| Maximum Power Dissipation | 179 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±20 V | |
| Length | 6.1mm | |
| Typical Gate Charge @ Vgs | 149 nC @ 10 V | |
| Maximum Operating Temperature | +175 °C | |
| Number of Elements per Chip | 1 | |
| Width | 5.1mm | |
| Automotive Standard | AEC-Q101 | |
| Minimum Operating Temperature | -55 °C | |
| Height | 1.05mm | |
| Forward Diode Voltage | 1.2V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 362 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type DFN | ||
Mounting Type Surface Mount | ||
Pin Count 5 | ||
Maximum Drain Source Resistance 1.1 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 1.2V | ||
Maximum Power Dissipation 179 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±20 V | ||
Length 6.1mm | ||
Typical Gate Charge @ Vgs 149 nC @ 10 V | ||
Maximum Operating Temperature +175 °C | ||
Number of Elements per Chip 1 | ||
Width 5.1mm | ||
Automotive Standard AEC-Q101 | ||
Minimum Operating Temperature -55 °C | ||
Height 1.05mm | ||
Forward Diode Voltage 1.2V | ||
Low RDS(on)
Low QG and Capacitance
NVMFS5C404NLWF - Wettable Flank Optic
PPAP Capable
Compact Design
Minimize Conduction Losses
Minimize Driver Losses
Enhanced Optical
Applications
Reverser Battery protection
Switching power supplies
Power switches (High Side Driver, Low Side Driver, H-Bridges etc.)
End Products
Solenoid Driver - ABS, Fuel injection
Motor Control - EPS, Wipers, Fans, Seats, etc.
Load Switch - ECU, Chassis, Body
