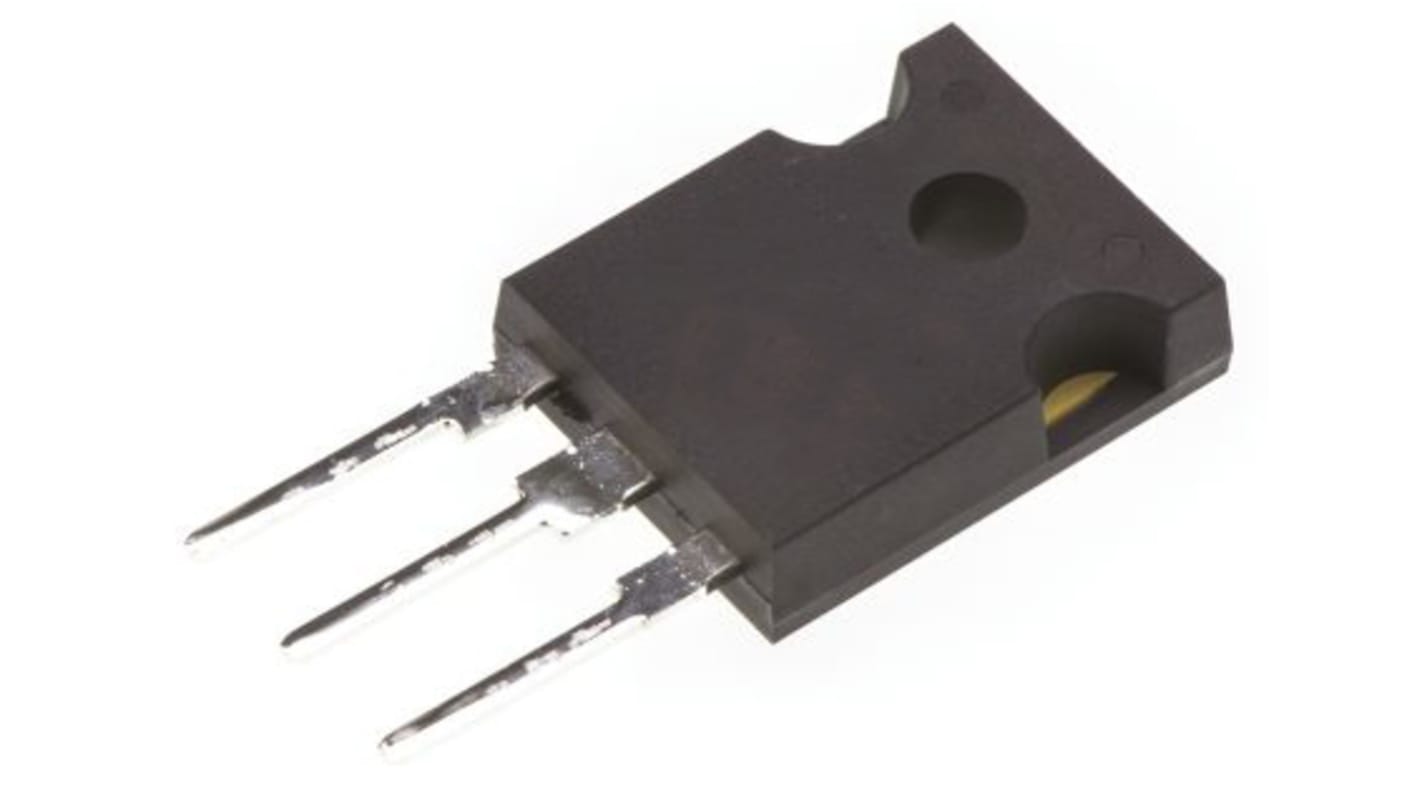

onsemi N-Channel MOSFET, 70 A, 650 V, 3-Pin TO-247 NTHL033N65S3HF
- RS Stock No.:
- 189-0397
- Mfr. Part No.:
- NTHL033N65S3HF
- Brand:
- onsemi
Bulk discount available
Subtotal (1 unit)*
£8.42
(exc. VAT)
£10.10
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 415 left, ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £8.42 |
| 10 + | £7.26 |
*price indicative
- RS Stock No.:
- 189-0397
- Mfr. Part No.:
- NTHL033N65S3HF
- Brand:
- onsemi
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 70 A | |
| Maximum Drain Source Voltage | 650 V | |
| Package Type | TO-247 | |
| Mounting Type | Through Hole | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance | 33 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 5V | |
| Minimum Gate Threshold Voltage | 3V | |
| Maximum Power Dissipation | 500 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | ±30 V | |
| Length | 15.87mm | |
| Maximum Operating Temperature | +150 °C | |
| Typical Gate Charge @ Vgs | 188 nC @ 10 V | |
| Width | 4.82mm | |
| Number of Elements per Chip | 1 | |
| Minimum Operating Temperature | -55 °C | |
| Height | 20.82mm | |
| Forward Diode Voltage | 1.3V | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 70 A | ||
Maximum Drain Source Voltage 650 V | ||
Package Type TO-247 | ||
Mounting Type Through Hole | ||
Pin Count 3 | ||
Maximum Drain Source Resistance 33 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 5V | ||
Minimum Gate Threshold Voltage 3V | ||
Maximum Power Dissipation 500 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage ±30 V | ||
Length 15.87mm | ||
Maximum Operating Temperature +150 °C | ||
Typical Gate Charge @ Vgs 188 nC @ 10 V | ||
Width 4.82mm | ||
Number of Elements per Chip 1 | ||
Minimum Operating Temperature -55 °C | ||
Height 20.82mm | ||
Forward Diode Voltage 1.3V | ||
