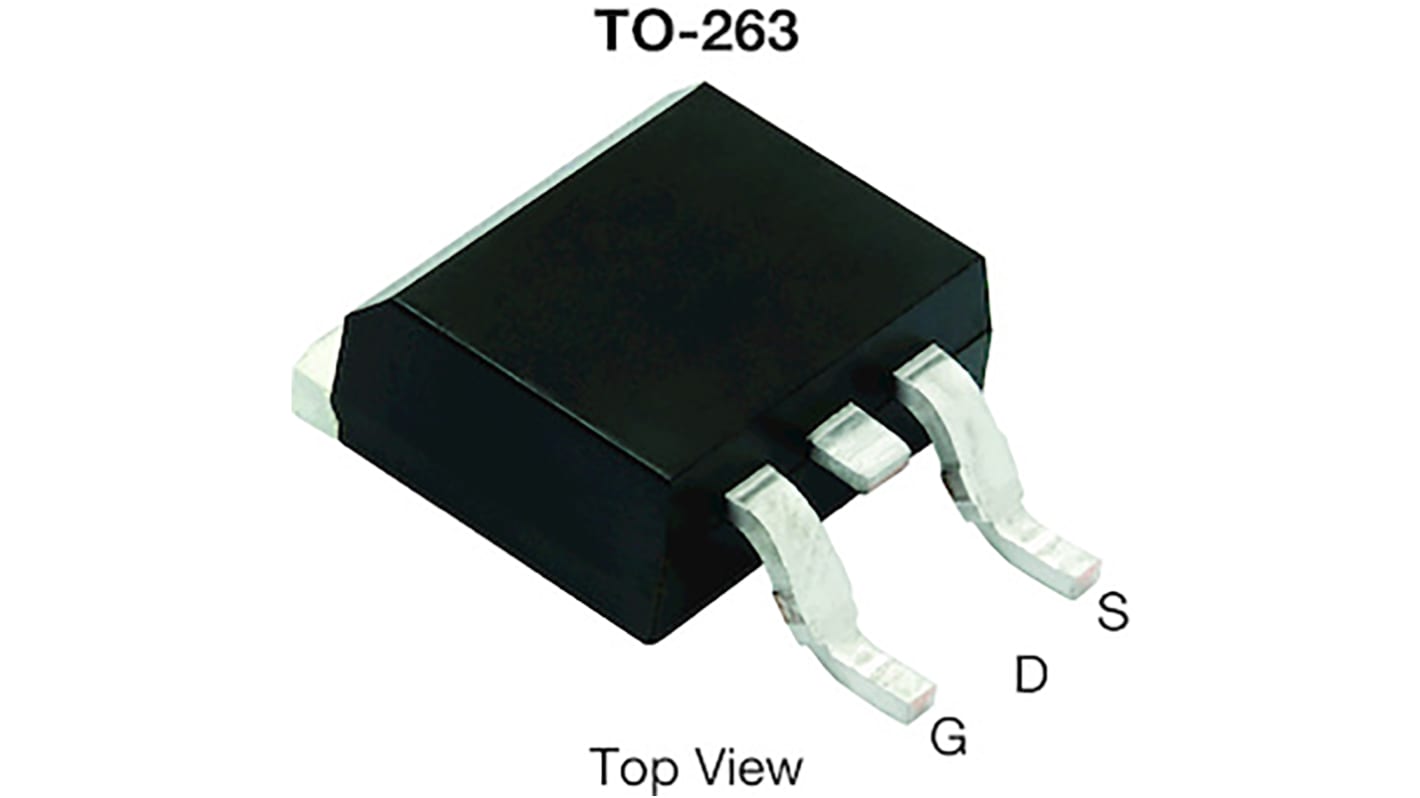

Vishay SQM40020E Type N-Channel MOSFET, 100 A, 40 V Enhancement, 3-Pin TO-263 SQM40020E_GE3
- RS Stock No.:
- 188-4954
- Mfr. Part No.:
- SQM40020E_GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 5 units)*
£11.95
(exc. VAT)
£14.35
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 630 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 45 | £2.39 | £11.95 |
| 50 - 120 | £2.152 | £10.76 |
| 125 - 245 | £2.056 | £10.28 |
| 250 - 495 | £1.912 | £9.56 |
| 500 + | £1.792 | £8.96 |
*price indicative
- RS Stock No.:
- 188-4954
- Mfr. Part No.:
- SQM40020E_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 100A | |
| Maximum Drain Source Voltage Vds | 40V | |
| Package Type | TO-263 | |
| Series | SQM40020E | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.00233Ω | |
| Channel Mode | Enhancement | |
| Typical Gate Charge Qg @ Vgs | 130nC | |
| Maximum Gate Source Voltage Vgs | ±20 V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 150W | |
| Forward Voltage Vf | 1.5V | |
| Maximum Operating Temperature | 175°C | |
| Length | 10.41mm | |
| Height | 4.57mm | |
| Width | 9.65 mm | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 100A | ||
Maximum Drain Source Voltage Vds 40V | ||
Package Type TO-263 | ||
Series SQM40020E | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.00233Ω | ||
Channel Mode Enhancement | ||
Typical Gate Charge Qg @ Vgs 130nC | ||
Maximum Gate Source Voltage Vgs ±20 V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 150W | ||
Forward Voltage Vf 1.5V | ||
Maximum Operating Temperature 175°C | ||
Length 10.41mm | ||
Height 4.57mm | ||
Width 9.65 mm | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
Automotive N-Channel 40 V (D-S) 175 °C MOSFET.
TrenchFET® power MOSFET
Package with low thermal resistance
