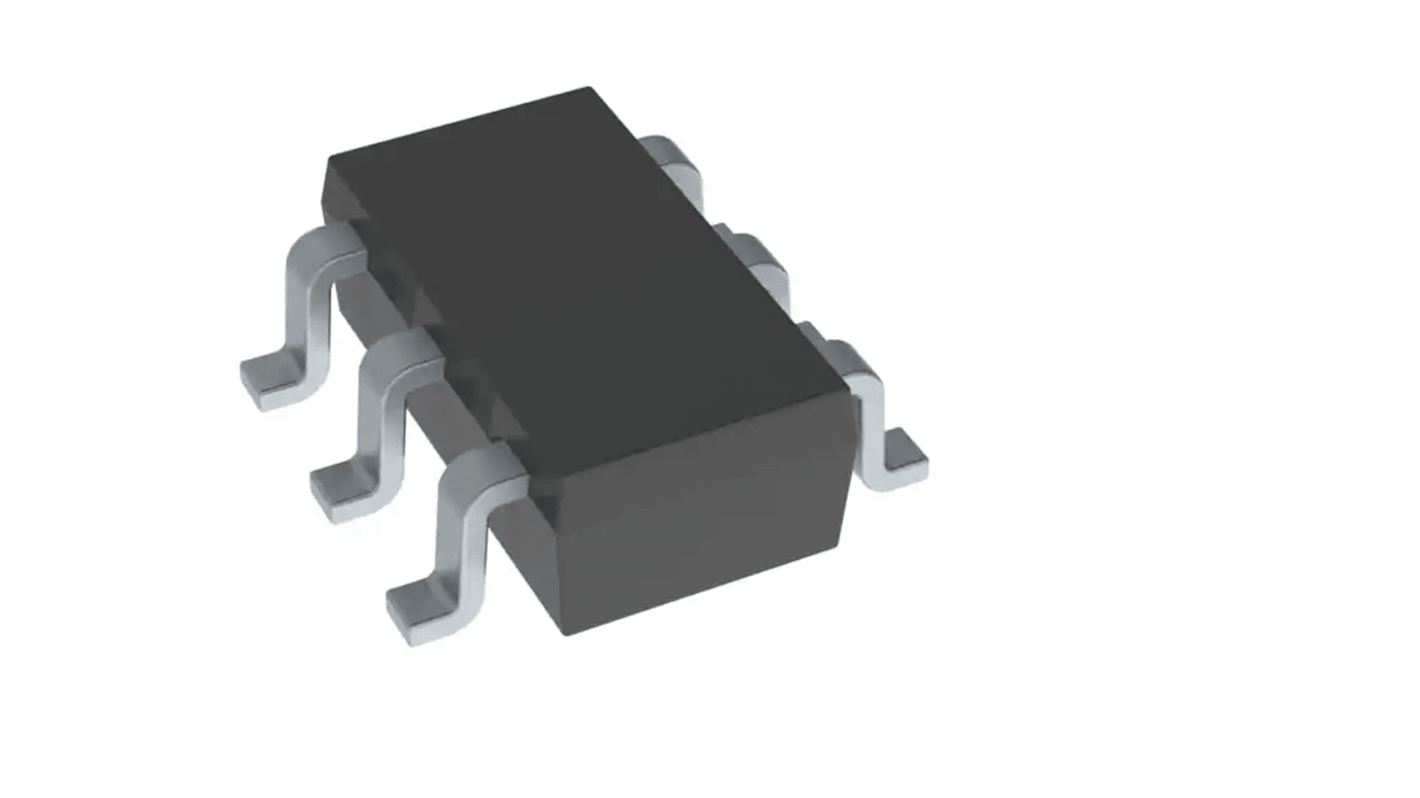

Vishay TrenchFET P-Channel MOSFET, 8 A, 30 V, 6-Pin TSOP-6 SI3421DV-T1-GE3
- RS Stock No.:
- 180-7895
- Mfr. Part No.:
- SI3421DV-T1-GE3
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 20 units)*
£6.74
(exc. VAT)
£8.08
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 3,460 unit(s), ready to ship
Units | Per unit | Per Pack* |
---|---|---|
20 - 180 | £0.337 | £6.74 |
200 - 480 | £0.253 | £5.06 |
500 - 980 | £0.219 | £4.38 |
1000 - 1980 | £0.202 | £4.04 |
2000 + | £0.158 | £3.16 |
*price indicative
- RS Stock No.:
- 180-7895
- Mfr. Part No.:
- SI3421DV-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Vishay | |
Channel Type | P | |
Maximum Continuous Drain Current | 8 A | |
Maximum Drain Source Voltage | 30 V | |
Series | TrenchFET | |
Package Type | TSOP-6 | |
Mounting Type | Surface Mount | |
Pin Count | 6 | |
Maximum Drain Source Resistance | 0.0192 O | |
Channel Mode | Enhancement | |
Maximum Gate Threshold Voltage | 3V | |
Number of Elements per Chip | 1 | |
Select all | ||
---|---|---|
Brand Vishay | ||
Channel Type P | ||
Maximum Continuous Drain Current 8 A | ||
Maximum Drain Source Voltage 30 V | ||
Series TrenchFET | ||
Package Type TSOP-6 | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Maximum Drain Source Resistance 0.0192 O | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 3V | ||
Number of Elements per Chip 1 | ||
- COO (Country of Origin):
- CN
Vishay MOSFET
The Vishay surface mount P-channel MOSFET is a new age product with a drain-source voltage of 30V and a maximum gate-source voltage of 20V. It has drain-source resistance of 19.2mohm at a gate-source voltage of 10V. It has a maximum power dissipation of 4.2W and continuous drain current of 8A. The minimum and a maximum driving voltage for this transistor are 4.5V and 10V respectively. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.
Features and Benefits
• Halogen free
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
• Lead (Pb) free
• Operating temperature ranges between -55°C and 150°C
• TrenchFET power MOSFET
Applications
• Adaptor switch
• DC/DC converter
• For mobile computing/consumer
• Load switches
• DC/DC converter
• For mobile computing/consumer
• Load switches
Certifications
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEC 61249-2-21
• Rg tested
• UIS tested
• BS EN 61340-5-1:2007
• IEC 61249-2-21
• Rg tested
• UIS tested
