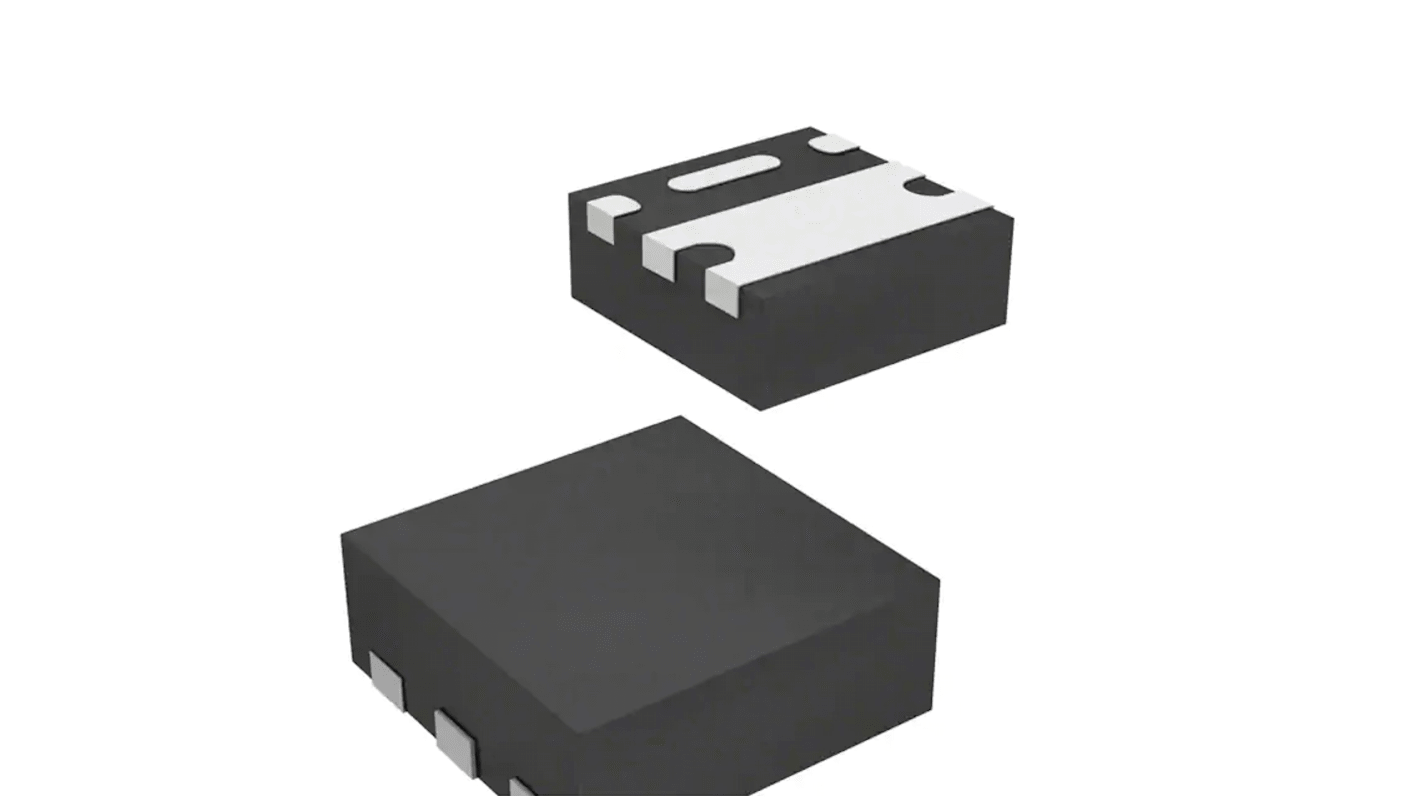

Vishay Single 1 Type P-Channel MOSFET, 29.7 A, 20 V, 6-Pin PowerPAK SC-70-6L SIA437DJ-T1-GE3
- RS Stock No.:
- 180-7780
- Mfr. Part No.:
- SIA437DJ-T1-GE3
- Brand:
- Vishay
Subtotal (1 pack of 20 units)*
£3.62
(exc. VAT)
£4.34
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 2,780 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.181 | £3.62 |
*price indicative
- RS Stock No.:
- 180-7780
- Mfr. Part No.:
- SIA437DJ-T1-GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Channel Type | Type P | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 29.7A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Package Type | PowerPAK SC-70-6L | |
| Mount Type | Surface | |
| Pin Count | 6 | |
| Maximum Drain Source Resistance Rds | 0.065Ω | |
| Typical Gate Charge Qg @ Vgs | 28nC | |
| Maximum Power Dissipation Pd | 19W | |
| Minimum Operating Temperature | 50°C | |
| Transistor Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Standards/Approvals | RoHS | |
| Height | 0.8mm | |
| Length | 2.05mm | |
| Number of Elements per Chip | 1 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Channel Type Type P | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 29.7A | ||
Maximum Drain Source Voltage Vds 20V | ||
Package Type PowerPAK SC-70-6L | ||
Mount Type Surface | ||
Pin Count 6 | ||
Maximum Drain Source Resistance Rds 0.065Ω | ||
Typical Gate Charge Qg @ Vgs 28nC | ||
Maximum Power Dissipation Pd 19W | ||
Minimum Operating Temperature 50°C | ||
Transistor Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Standards/Approvals RoHS | ||
Height 0.8mm | ||
Length 2.05mm | ||
Number of Elements per Chip 1 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
The Vishay SIA437DJ is a P-channel MOSFET having drain to source voltage(Vds) of -20V and gate to source voltage (VGS) 8V. It is having Power PAK SC-70 package. It is offers drain to source resistance (RDS.) of 0.0145ohms at 4.5VGS and 0.0205ohms at 2.5VGS. Maximum drain current 29.7A.
Trench FET power MOSFET
Thermally enhanced Power PAK SC-70 package
100 % Rg tested
