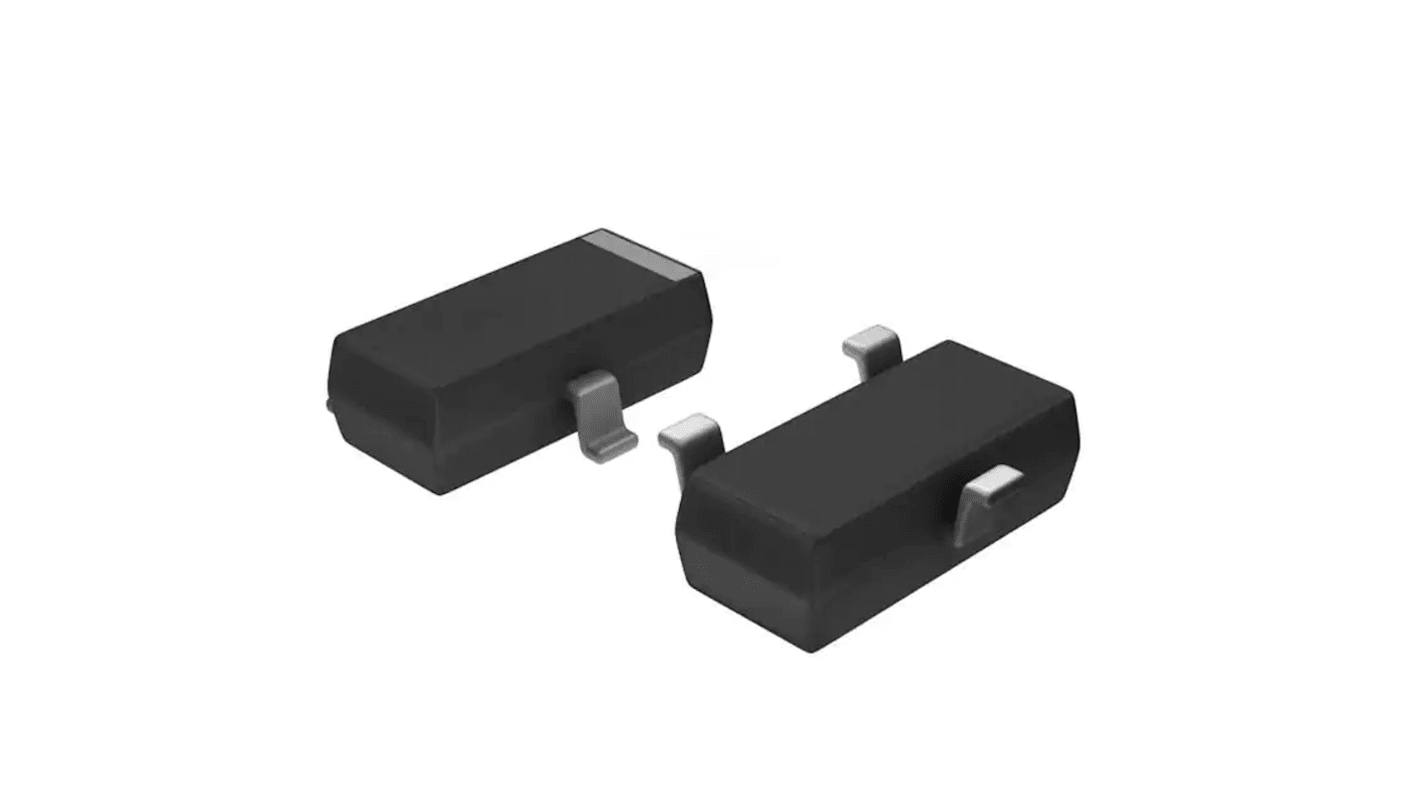

Vishay TrenchFET N-Channel MOSFET, 8 A, 40 V, 3-Pin SOT-23 SQ2318AES-T1_GE3

View all MOSFETs
Currently unavailable
Sorry, we don't know when this will be back in stock.
RS Stock No.:
180-7398
Mfr. Part No.:
SQ2318AES-T1_GE3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Channel Type

N

Maximum Continuous Drain Current

8 A

Maximum Drain Source Voltage

40 V

Package Type

SOT-23

Series

TrenchFET

Mounting Type

Surface Mount

Pin Count

3

Maximum Drain Source Resistance

0.036 O

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

2.5V

Number of Elements per Chip

1

COO (Country of Origin):
CN

Vishay MOSFET


The Vishay surface mount N-channel MOSFET is a new age product with a drain-source voltage of 40V and a maximum gate-source voltage of 20V. It has drain-source resistance of 31mohm at a gate-source voltage of 10V. It has a maximum power dissipation of 3W and continuous drain current of 8A. The minimum and a maximum driving voltage for this MOSFET is 4.5V and 10V respectively. It has application in load switches for portable devices. The MOSFET has been optimized for lower switching and conduction losses. The MOSFET offers excellent efficiency along with a long and productive life without compromising performance or functionality.

Features and Benefits


• Halogen free
• Lead (Pb) free
• Operating temperature ranges between -55°C and 175°C
• TrenchFET power MOSFET

Certifications


• AEC-Q101
• ANSI/ESD S20.20:2014
• BS EN 61340-5-1:2007
• IEC 61249-2-21
• Rg tested
• UIS tested
