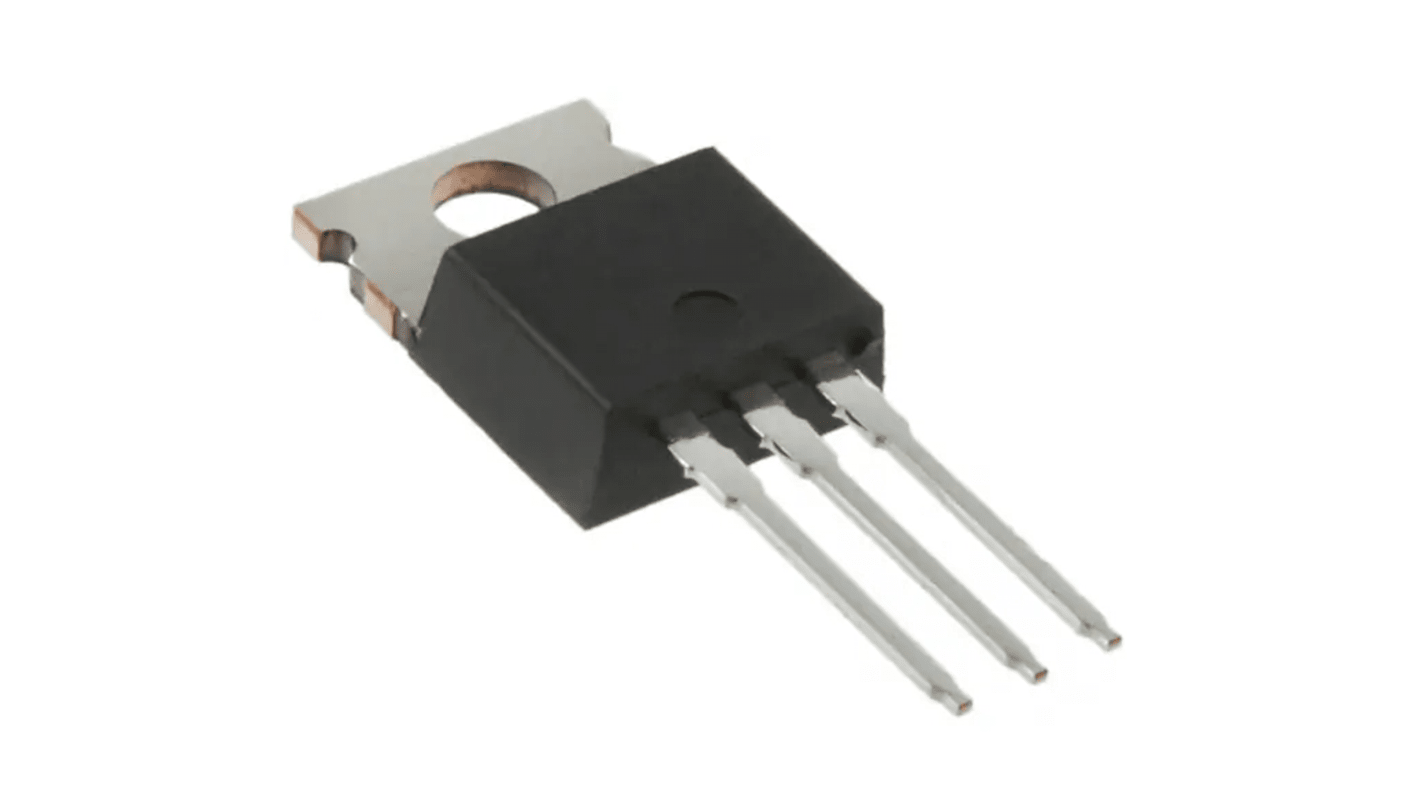

N-Channel MOSFET, 11 A, 500 V, 3-Pin TO-220AB Vishay IRFB11N50APBF
- RS Stock No.:
- 178-0823
- Mfr. Part No.:
- IRFB11N50APBF
- Brand:
- Vishay
Available to back order for despatch 07/05/2024
Added
Price Each (In a Tube of 50)
£0.563
(exc. VAT)
£0.676
(inc. VAT)
| Units | Per unit | Per Tube* |
| 50 + | £0.563 | £28.15 |
| *price indicative | ||
- RS Stock No.:
- 178-0823
- Mfr. Part No.:
- IRFB11N50APBF
- Brand:
- Vishay
Technical Reference
Legislation and Compliance
Product Details
N-Channel MOSFET, 500V, Vishay Semiconductor
MOSFET Transistors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Channel Type | N |
| Maximum Continuous Drain Current | 11 A |
| Maximum Drain Source Voltage | 500 V |
| Package Type | TO-220AB |
| Mounting Type | Through Hole |
| Pin Count | 3 |
| Maximum Drain Source Resistance | 520 mΩ |
| Channel Mode | Enhancement |
| Minimum Gate Threshold Voltage | 2V |
| Maximum Power Dissipation | 170 W |
| Transistor Configuration | Single |
| Maximum Gate Source Voltage | -30 V, +30 V |
| Number of Elements per Chip | 1 |
| Transistor Material | Si |
| Width | 4.7mm |
| Maximum Operating Temperature | +150 °C |
| Length | 10.41mm |
| Typical Gate Charge @ Vgs | 52 nC @ 10 V |
| Minimum Operating Temperature | -55 °C |
| Height | 9.01mm |
