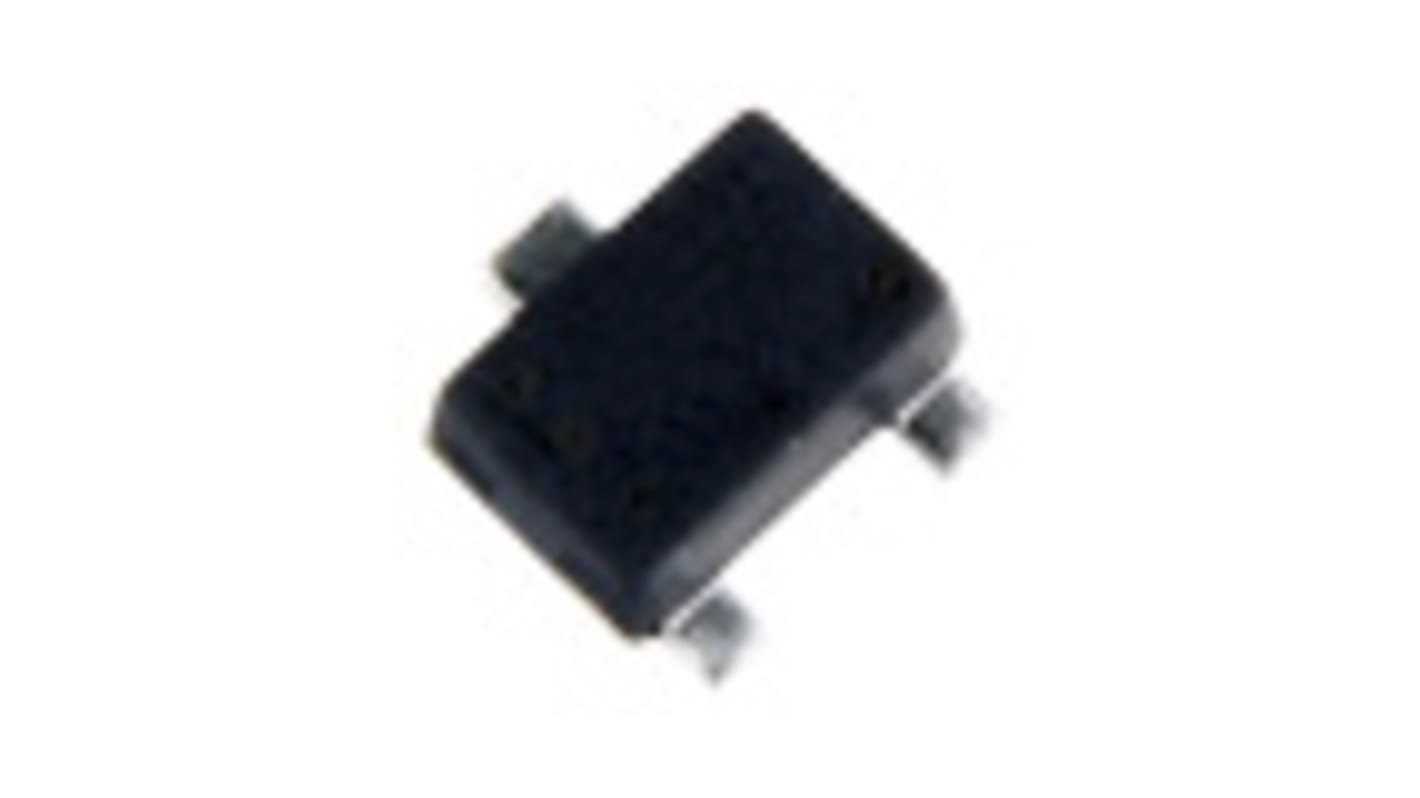

N-Channel MOSFET, 250 mA, 20 V, 3-Pin SOT-723 Toshiba SSM3K37MFV,L3F(B

RS Stock No.:: 171-2404
Mfr. Part No.:: SSM3K37MFV,L3F(B
Brand:: Toshiba

N-Channel MOSFET, 250 mA, 20 V, 3-Pin SOT-723 Toshiba SSM3K37MFV,L3F(B

8000 In stock - FREE next working day delivery available

Added

Price Each (On a Reel of 8000)

£0.035

(exc. VAT)

£0.042

(inc. VAT)

Units	Per unit	Per Reel*
8000 - 8000	£0.035	£280.00
16000 +	£0.033	£264.00
*price indicative

RS Stock No.:: 171-2404
Mfr. Part No.:: SSM3K37MFV,L3F(B
Brand:: Toshiba

Technical Reference

Legislation and Compliance

COO (Country of Origin):: TH

Product Details

1.5V drive
Low ON-resistance: Ron = 66mΩ (max) (@VGS = 1.5V)
Ron = 43mΩ (max) (@VGS = 1.8V)
Ron = 32mΩ (max) (@VGS = 2.5V)
Ron = 28mΩ (max) (@VGS = 4.0V)

Specifications

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	250 mA
Maximum Drain Source Voltage	20 V
Package Type	SOT-723
Mounting Type	Surface Mount
Pin Count	3
Maximum Drain Source Resistance	5.6 Ω
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	1V
Minimum Gate Threshold Voltage	0.35V
Maximum Power Dissipation	150 mW
Transistor Configuration	Single
Maximum Gate Source Voltage	±10 V
Maximum Operating Temperature	+150 °C
Width	1.2mm
Length	0.8mm
Number of Elements per Chip	1
Height	0.5mm
