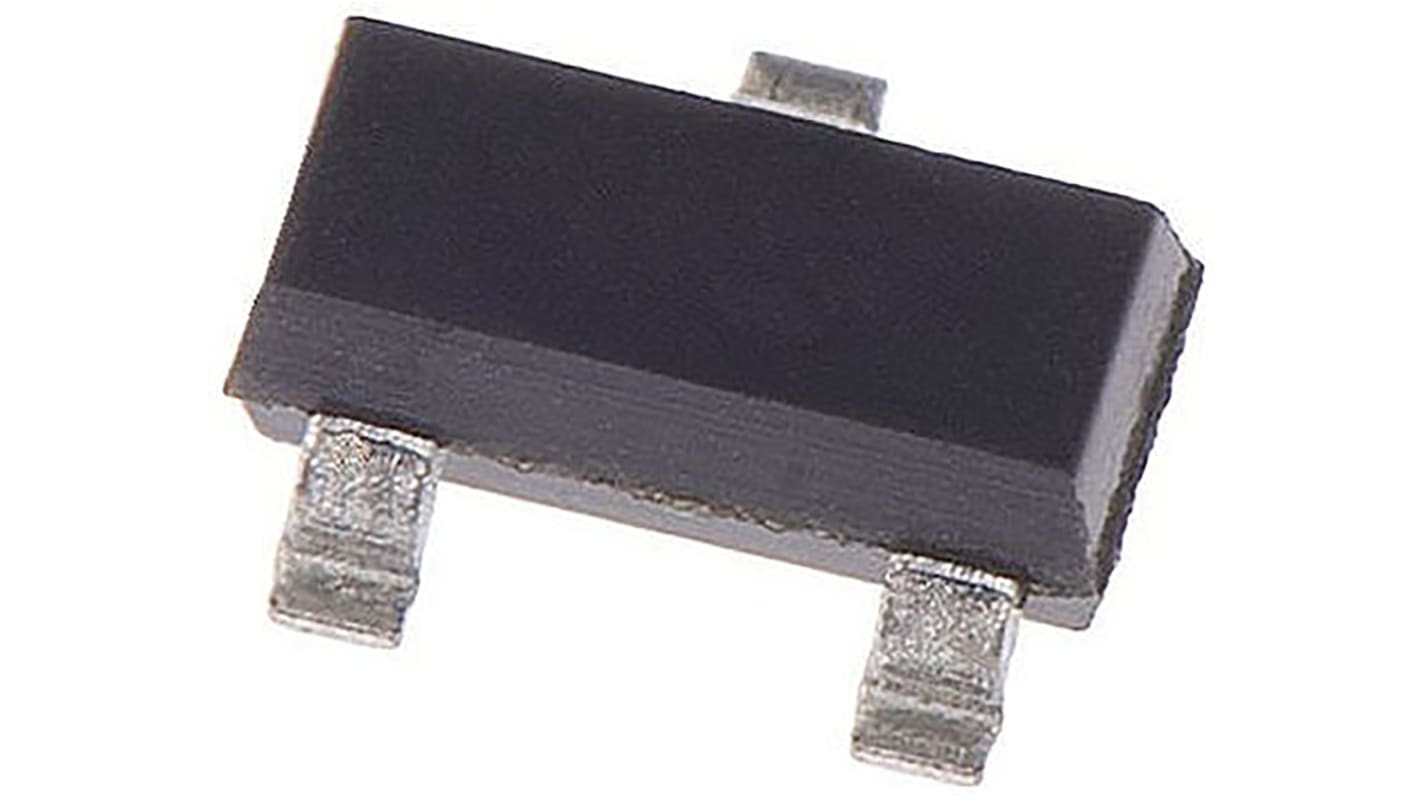

DiodesZetex DMG2302UK Type N-Channel MOSFET, 2.8 A, 20 V Enhancement, 3-Pin SOT-23
- RS Stock No.:
- 168-9568
- Mfr. Part No.:
- DMG2302UK-7
- Brand:
- DiodesZetex
Subtotal (1 reel of 3000 units)*
£120.00
(exc. VAT)
£150.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 12,000 unit(s) shipping from 29 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.04 | £120.00 |
*price indicative
- RS Stock No.:
- 168-9568
- Mfr. Part No.:
- DMG2302UK-7
- Brand:
- DiodesZetex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Channel Type | Type N | |
| Product Type | MOSFET | |
| Maximum Continuous Drain Current Id | 2.8A | |
| Maximum Drain Source Voltage Vds | 20V | |
| Package Type | SOT-23 | |
| Series | DMG2302UK | |
| Mount Type | Surface | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 120mΩ | |
| Channel Mode | Enhancement | |
| Forward Voltage Vf | 0.7V | |
| Minimum Operating Temperature | -55°C | |
| Maximum Power Dissipation Pd | 1.1W | |
| Maximum Gate Source Voltage Vgs | 12 V | |
| Typical Gate Charge Qg @ Vgs | 2.8nC | |
| Maximum Operating Temperature | 150°C | |
| Width | 1.4 mm | |
| Length | 3mm | |
| Height | 1mm | |
| Standards/Approvals | No | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Channel Type Type N | ||
Product Type MOSFET | ||
Maximum Continuous Drain Current Id 2.8A | ||
Maximum Drain Source Voltage Vds 20V | ||
Package Type SOT-23 | ||
Series DMG2302UK | ||
Mount Type Surface | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 120mΩ | ||
Channel Mode Enhancement | ||
Forward Voltage Vf 0.7V | ||
Minimum Operating Temperature -55°C | ||
Maximum Power Dissipation Pd 1.1W | ||
Maximum Gate Source Voltage Vgs 12 V | ||
Typical Gate Charge Qg @ Vgs 2.8nC | ||
Maximum Operating Temperature 150°C | ||
Width 1.4 mm | ||
Length 3mm | ||
Height 1mm | ||
Standards/Approvals No | ||
Automotive Standard AEC-Q101 | ||
- COO (Country of Origin):
- CN
N-Channel MOSFET, 12V to 28V, Diodes Inc
MOSFET Transistors, Diodes Inc.
