MPN

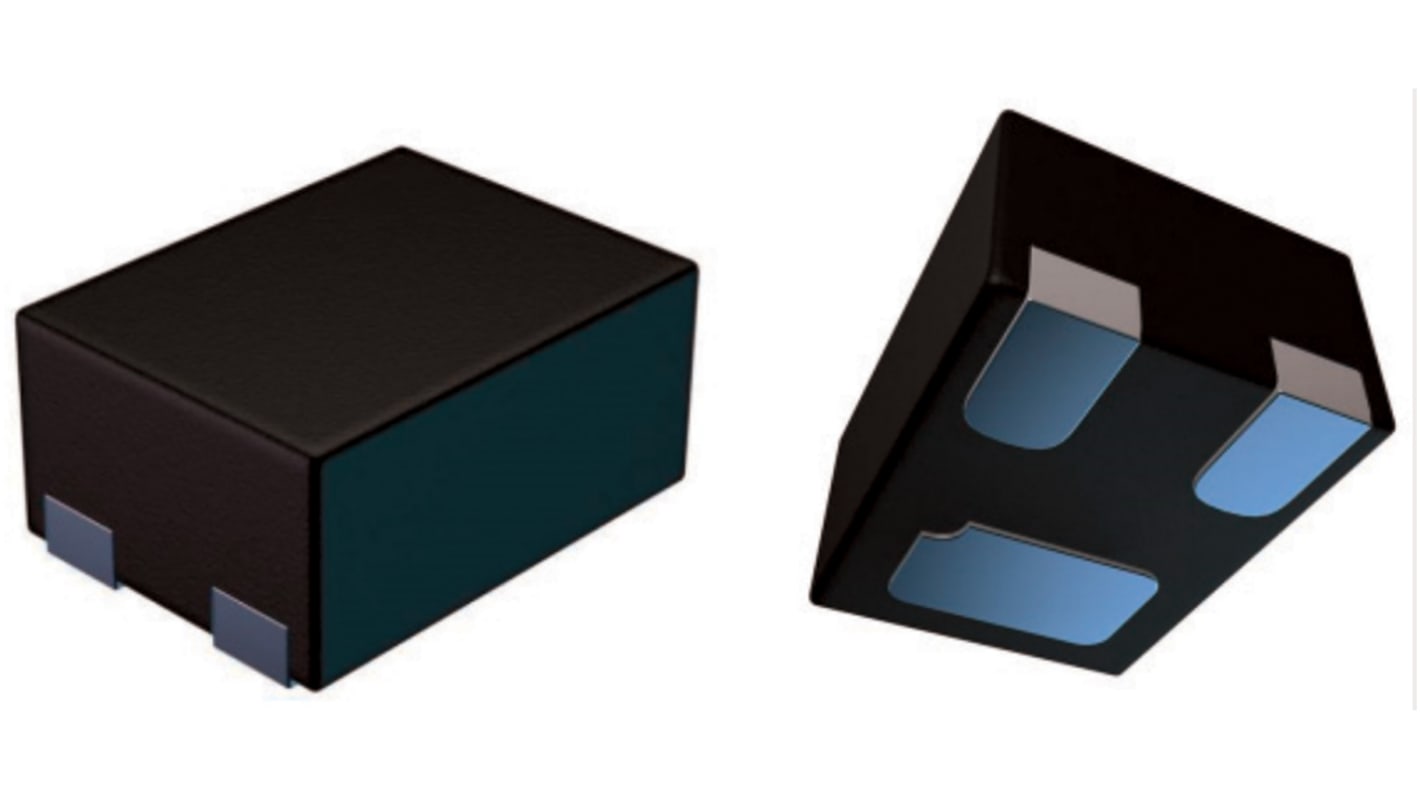

Diodes Inc N-Channel MOSFET, 500 mA, 12 V, 3-Pin X2-DFN0806 DMN1260UFA-7B

Subtotal (1 reel of 10000 units)*

£450.00

(exc. VAT)

£540.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
10000 +	£0.045	£450.00

*price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	N
	Maximum Continuous Drain Current	500 mA
	Maximum Drain Source Voltage	12 V
	Package Type	X2-DFN0806
	Mounting Type	Surface Mount
	Pin Count	3
	Maximum Drain Source Resistance	1.5 Ω
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	1V
	Minimum Gate Threshold Voltage	0.4V
	Maximum Power Dissipation	360 mW
	Transistor Configuration	Single
	Maximum Gate Source Voltage	-8 V, +8 V
	Typical Gate Charge @ Vgs	0.96 nC @ 4.5 V
	Transistor Material	Si
	Maximum Operating Temperature	+150 °C
	Number of Elements per Chip	1
	Width	0.85mm
	Length	0.65mm
	Minimum Operating Temperature	-55 °C
	Height	0.35mm
	Forward Diode Voltage	1.2V

	Select all
	Brand DiodesZetex
	Channel Type N
	Maximum Continuous Drain Current 500 mA
	Maximum Drain Source Voltage 12 V
	Package Type X2-DFN0806
	Mounting Type Surface Mount
	Pin Count 3
	Maximum Drain Source Resistance 1.5 Ω
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 1V
	Minimum Gate Threshold Voltage 0.4V
	Maximum Power Dissipation 360 mW
	Transistor Configuration Single
	Maximum Gate Source Voltage -8 V, +8 V
	Typical Gate Charge @ Vgs 0.96 nC @ 4.5 V
	Transistor Material Si
	Maximum Operating Temperature +150 °C
	Number of Elements per Chip 1
	Width 0.85mm
	Length 0.65mm
	Minimum Operating Temperature -55 °C
	Height 0.35mm
	Forward Diode Voltage 1.2V
