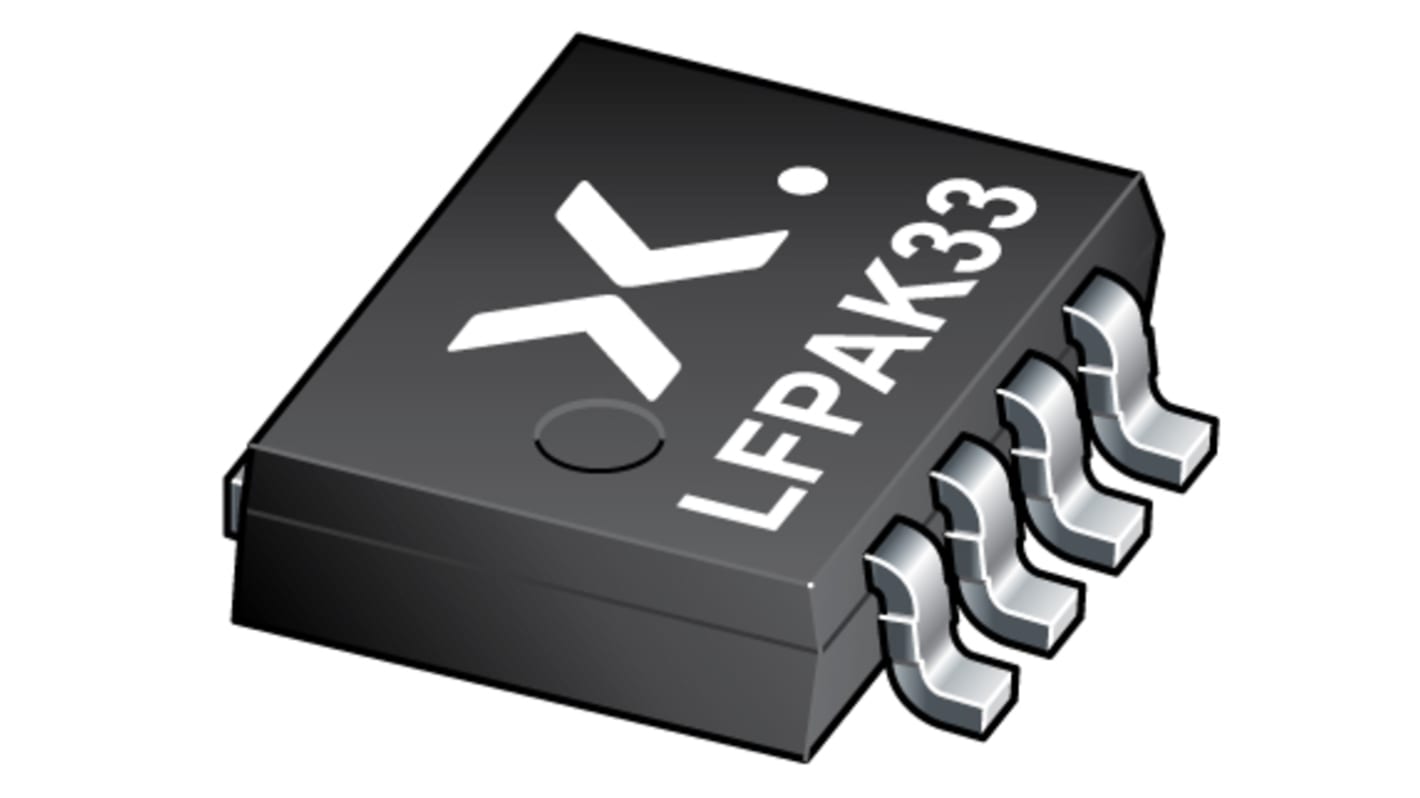

Nexperia N-Channel MOSFET, 12.8 A, 60 V, 4-Pin LFPAK33 BUK9M85-60EX

View all MOSFETs

Subtotal (1 reel of 1500 units)*

£292.50

(exc. VAT)

£351.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 21,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1500 +£0.195£292.50

*price indicative

RS Stock No.:
152-7743
Mfr. Part No.:
BUK9M85-60EX
Brand:
Nexperia
Find similar products by selecting one or more attributes.
Select all

Brand

Nexperia

Channel Type

N

Maximum Continuous Drain Current

12.8 A

Maximum Drain Source Voltage

60 V

Package Type

LFPAK33

Mounting Type

Surface Mount

Pin Count

4

Maximum Drain Source Resistance

192 mΩ

Channel Mode

Enhancement

Maximum Gate Threshold Voltage

2.45V

Minimum Gate Threshold Voltage

0.5V

Maximum Power Dissipation

31 W

Transistor Configuration

Single

Maximum Gate Source Voltage

15 V

Typical Gate Charge @ Vgs

4.4 nC @ 10 V

Width

2.6mm

Maximum Operating Temperature

+175 °C

Number of Elements per Chip

1

Length

3.4mm

Height

0.9mm

Automotive Standard

AEC-Q101

Minimum Operating Temperature

-55 °C

N-channel 60 V, 85 mΩ logic level MOSFET in LFPAK33, Logic level N-channel MOSFET in an LFPAK33 (Power33) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.

Q101 compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True logic level gate with VGS(th) rating of greater than 0.5 V at 175 °C
12 V automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
