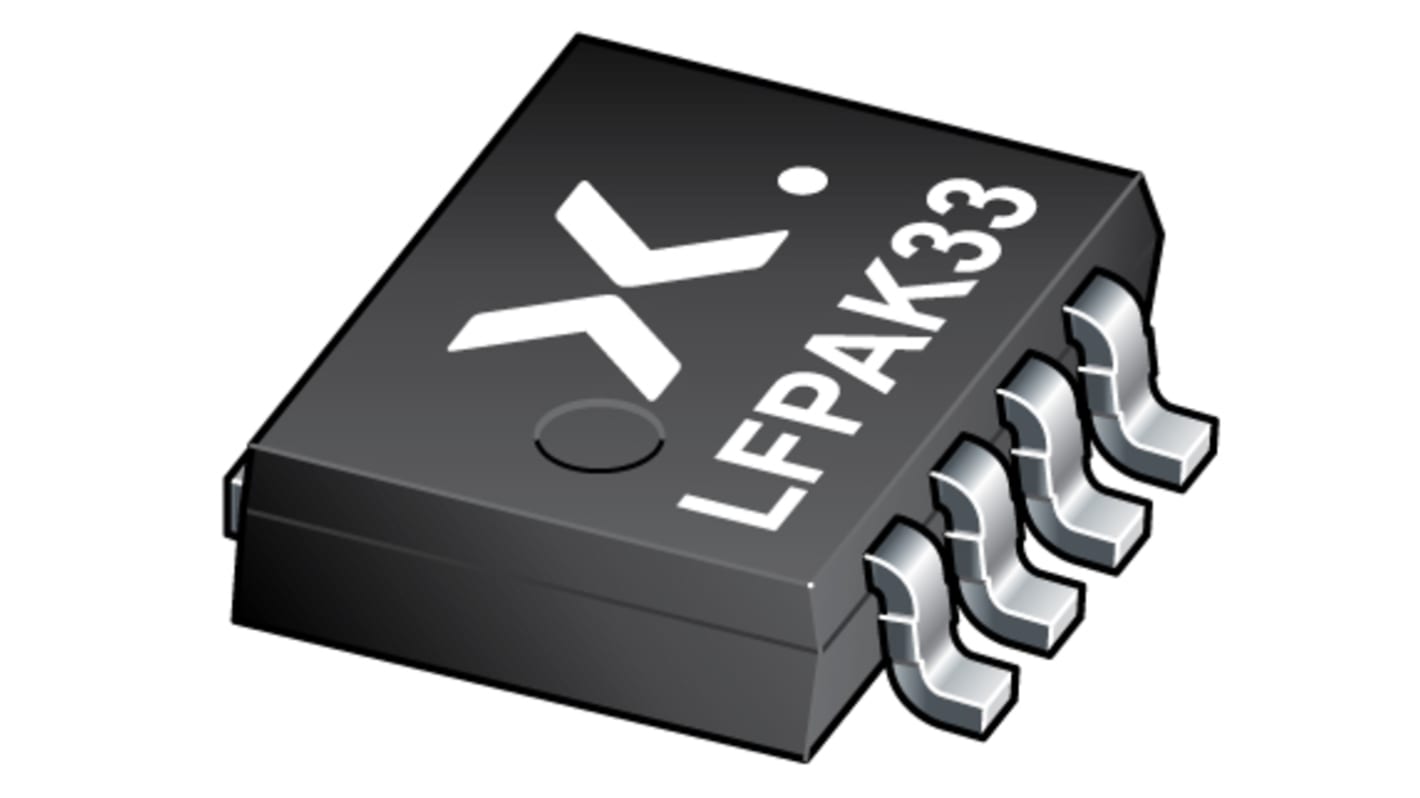

Nexperia N-Channel MOSFET, 53 A, 60 V, 4-Pin LFPAK33 BUK7M12-60EX
- RS Stock No.:
- 152-7744
- Mfr. Part No.:
- BUK7M12-60EX
- Brand:
- Nexperia
Subtotal (1 reel of 1500 units)*
£567.00
(exc. VAT)
£681.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 4,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 1500 + | £0.378 | £567.00 |
*price indicative
- RS Stock No.:
- 152-7744
- Mfr. Part No.:
- BUK7M12-60EX
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 53 A | |
| Maximum Drain Source Voltage | 60 V | |
| Package Type | LFPAK33 | |
| Mounting Type | Surface Mount | |
| Pin Count | 4 | |
| Maximum Drain Source Resistance | 27 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 4.5V | |
| Minimum Gate Threshold Voltage | 1V | |
| Maximum Power Dissipation | 75 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | 20 V | |
| Maximum Operating Temperature | +175 °C | |
| Typical Gate Charge @ Vgs | 24.8 nC @ 10 V | |
| Length | 3.4mm | |
| Number of Elements per Chip | 1 | |
| Width | 2.6mm | |
| Automotive Standard | AEC-Q101 | |
| Height | 0.9mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand Nexperia | ||
Channel Type N | ||
Maximum Continuous Drain Current 53 A | ||
Maximum Drain Source Voltage 60 V | ||
Package Type LFPAK33 | ||
Mounting Type Surface Mount | ||
Pin Count 4 | ||
Maximum Drain Source Resistance 27 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 4.5V | ||
Minimum Gate Threshold Voltage 1V | ||
Maximum Power Dissipation 75 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage 20 V | ||
Maximum Operating Temperature +175 °C | ||
Typical Gate Charge @ Vgs 24.8 nC @ 10 V | ||
Length 3.4mm | ||
Number of Elements per Chip 1 | ||
Width 2.6mm | ||
Automotive Standard AEC-Q101 | ||
Height 0.9mm | ||
Minimum Operating Temperature -55 °C | ||
N-channel 60 V, 12 mΩ standard level MOSFET in LFPAK33, Standard level N-channel MOSFET in an LFPAK33 (Power33) package using TrenchMOS technology. This product has been designed and qualified to AEC Q101 standard for use in high performance automotive applications.
Q101 Compliant
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True standard level gate with VGS(th) rating of greater than 1 V at 175 °C
12 V automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
Repetitive avalanche rated
Suitable for thermally demanding environments due to 175 °C rating
True standard level gate with VGS(th) rating of greater than 1 V at 175 °C
12 V automotive systems
Motors, lamps and solenoid control
Transmission control
Ultra high performance power switching
