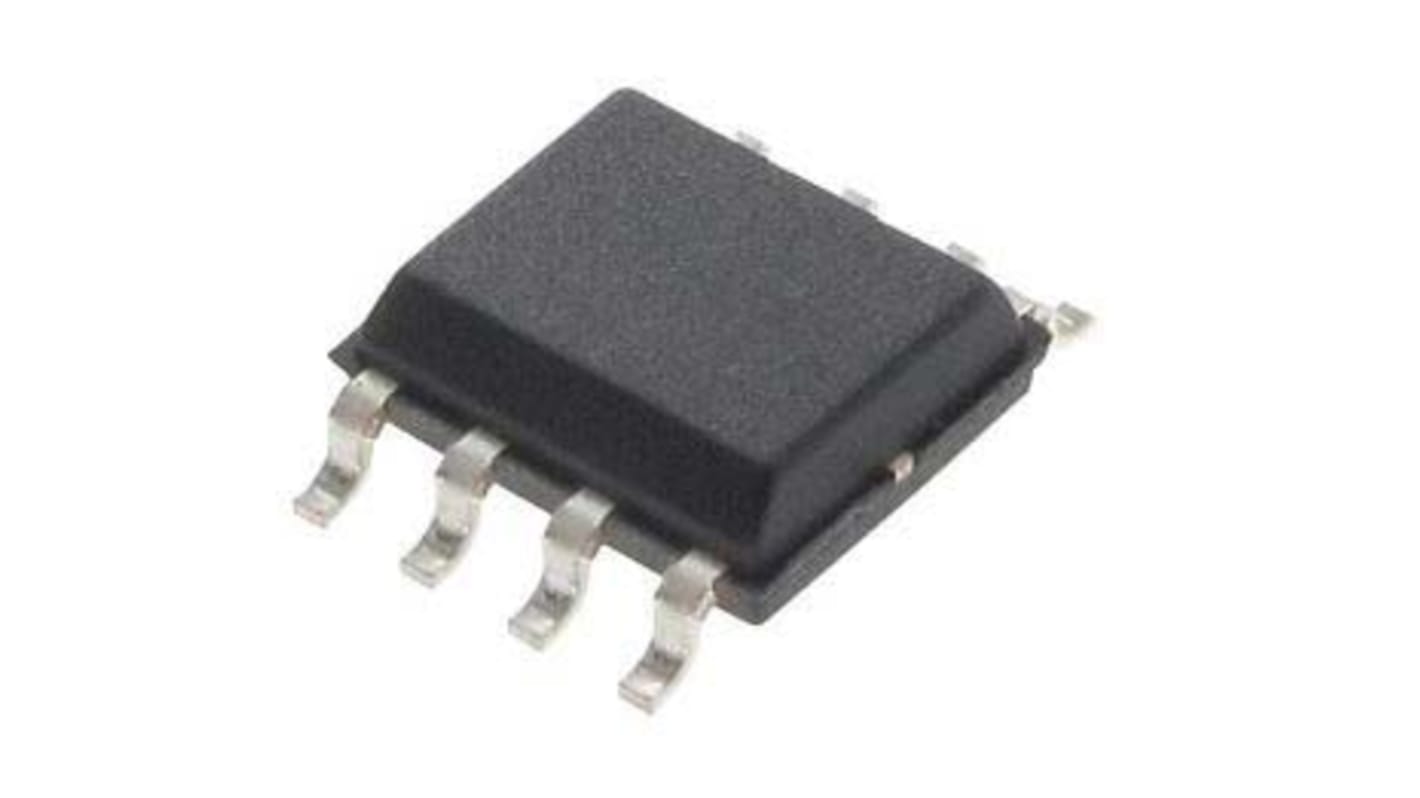

Diodes Inc DMP Dual P-Channel MOSFET, 5.2 A, 60 V, 8-Pin SOIC DMPH6050SSD-13

Subtotal (1 reel of 2500 units)*

£907.50

(exc. VAT)

£1,090.00

(inc. VAT)

Temporarily out of stock

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit	Per Reel*
2500 +	£0.363	£907.50

*price indicative

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Channel Type	P
	Maximum Continuous Drain Current	5.2 A
	Maximum Drain Source Voltage	60 V
	Package Type	SOIC
	Series	DMP
	Mounting Type	Surface Mount
	Pin Count	8
	Maximum Drain Source Resistance	60 mΩ
	Channel Mode	Enhancement
	Maximum Gate Threshold Voltage	3V
	Minimum Gate Threshold Voltage	1V
	Maximum Power Dissipation	1.5 W
	Maximum Gate Source Voltage	±20 V
	Maximum Operating Temperature	+175 °C
	Typical Gate Charge @ Vgs	30.6 @ 10 V nC
	Number of Elements per Chip	2
	Width	3.95mm
	Length	4.95mm
	Forward Diode Voltage	1.2V
	Height	1.5mm
	Automotive Standard	AEC-Q101
	Minimum Operating Temperature	-55 °C

	Select all
	Brand DiodesZetex
	Channel Type P
	Maximum Continuous Drain Current 5.2 A
	Maximum Drain Source Voltage 60 V
	Package Type SOIC
	Series DMP
	Mounting Type Surface Mount
	Pin Count 8
	Maximum Drain Source Resistance 60 mΩ
	Channel Mode Enhancement
	Maximum Gate Threshold Voltage 3V
	Minimum Gate Threshold Voltage 1V
	Maximum Power Dissipation 1.5 W
	Maximum Gate Source Voltage ±20 V
	Maximum Operating Temperature +175 °C
	Typical Gate Charge @ Vgs 30.6 @ 10 V nC
	Number of Elements per Chip 2
	Width 3.95mm
	Length 4.95mm
	Forward Diode Voltage 1.2V
	Height 1.5mm
	Automotive Standard AEC-Q101
	Minimum Operating Temperature -55 °C

MOSFET Transistors, Diodes Inc.
