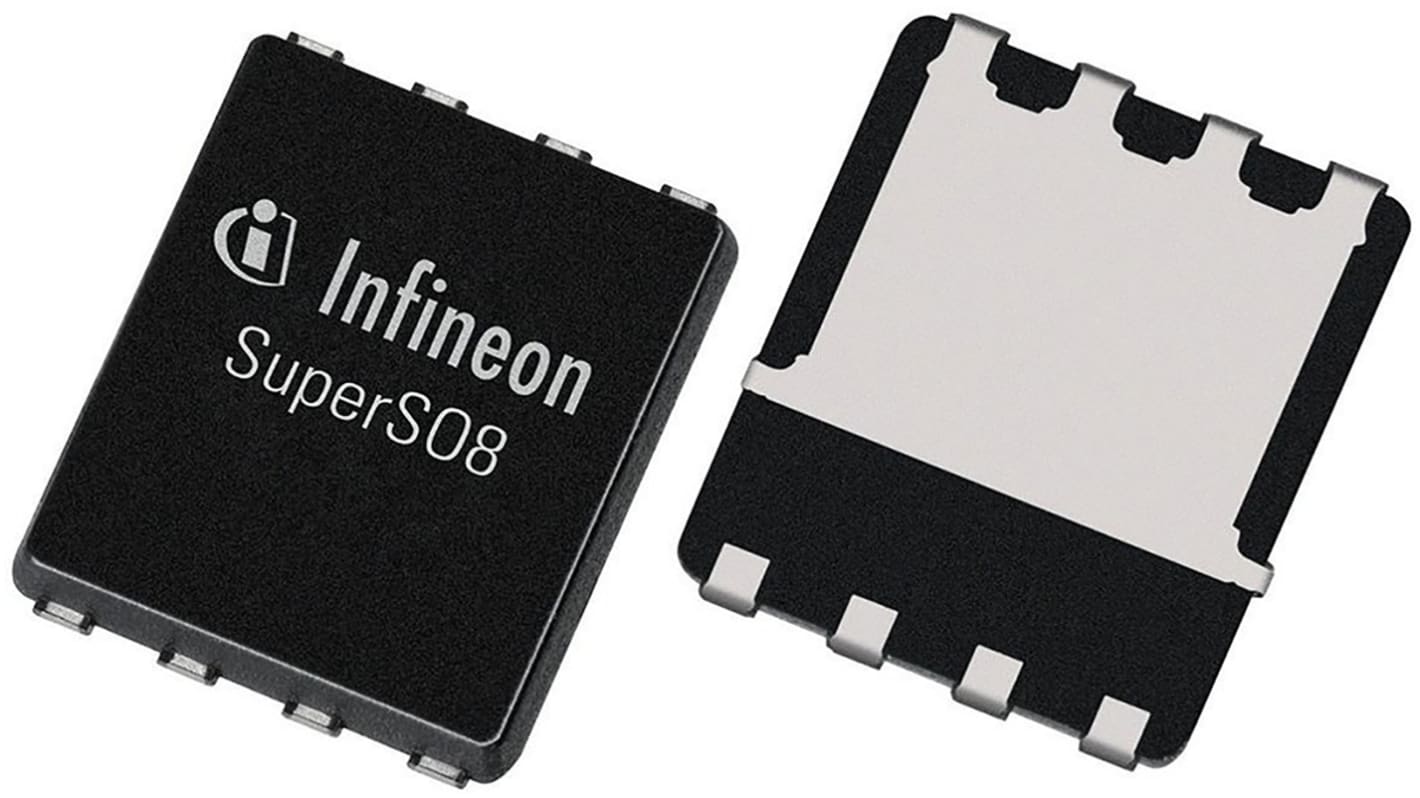

N-Channel MOSFET, 100 A, 25 V, 8-Pin SuperSO8 5 x 6 Infineon BSC009NE2LS5IATMA1

RS Stock No.:: 133-6577
Mfr. Part No.:: BSC009NE2LS5IATMA1
Brand:: Infineon

Technical Reference

N-Channel MOSFET, 100 A, 25 V, 8-Pin SuperSO8 5 x 6 Infineon BSC009NE2LS5IATMA1

View all MOSFETs

Available to back order for despatch 07/07/2025

Price Each (On a Reel of 5000)

£0.674

(exc. VAT)

£0.809

(inc. VAT)

Units	Per unit	Per Reel*
5000 +	£0.674	£3,370.00

*price indicative

RS Stock No.:: 133-6577
Mfr. Part No.:: BSC009NE2LS5IATMA1
Brand:: Infineon

Attribute	Value
Channel Type	N
Maximum Continuous Drain Current	100 A
Maximum Drain Source Voltage	25 V
Series	OptiMOS™ 5
Package Type	SuperSO8 5 x 6
Mounting Type	Surface Mount
Pin Count	8
Maximum Drain Source Resistance	1.35 mΩ
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	2V
Minimum Gate Threshold Voltage	1.2V
Maximum Power Dissipation	74 W
Transistor Configuration	Single
Maximum Gate Source Voltage	+16 V
Maximum Operating Temperature	+150 °C
Transistor Material	Si
Width	6.35mm
Length	5.49mm
Typical Gate Charge @ Vgs	36 nC @ 10 V
Number of Elements per Chip	1
Forward Diode Voltage	0.62V
Height	1.1mm
Minimum Operating Temperature	-55 °C

N-Channel MOSFET, 100 A, 25 V, 8-Pin SuperSO8 5 x 6 Infineon BSC009NE2LS5IATMA1

Technical Reference

Infineon OptiMOS™5 Power MOSFETs
