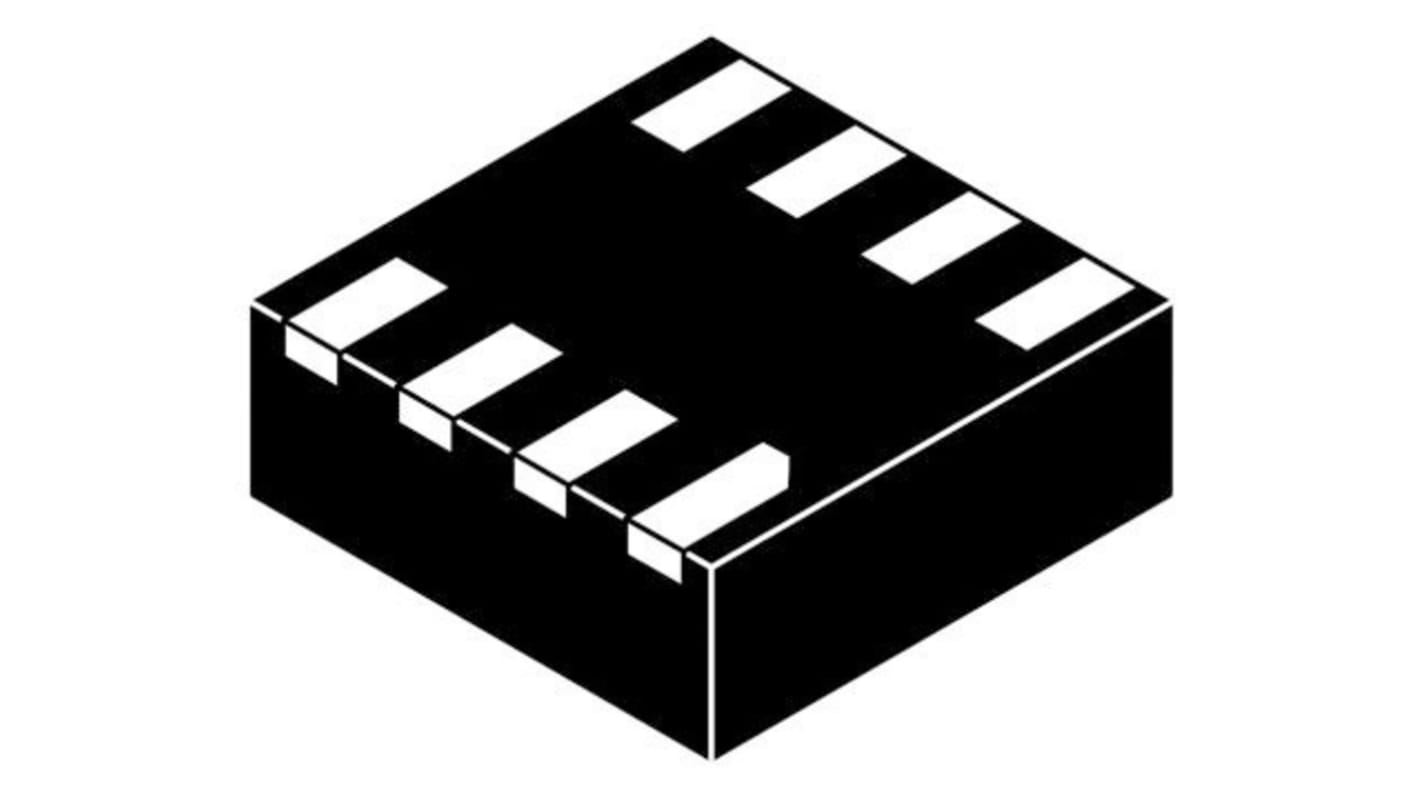

onsemi N-Channel MOSFET, 85 A, 40 V, 8-Pin WDFN NTTFS5C454NLTAG
- RS Stock No.:
- 121-7881
- Mfr. Part No.:
- NTTFS5C454NLTAG
- Brand:
- onsemi
Subtotal (1 pack of 10 units)*
£4.77
(exc. VAT)
£5.72
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 6,000 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | £0.477 | £4.77 |
*price indicative
- RS Stock No.:
- 121-7881
- Mfr. Part No.:
- NTTFS5C454NLTAG
- Brand:
- onsemi
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | onsemi | |
| Channel Type | N | |
| Maximum Continuous Drain Current | 85 A | |
| Maximum Drain Source Voltage | 40 V | |
| Package Type | WDFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance | 6 mΩ | |
| Channel Mode | Enhancement | |
| Maximum Gate Threshold Voltage | 2V | |
| Minimum Gate Threshold Voltage | 1.2V | |
| Maximum Power Dissipation | 55 W | |
| Transistor Configuration | Single | |
| Maximum Gate Source Voltage | -20 V, +20 V | |
| Width | 3.15mm | |
| Maximum Operating Temperature | +175 °C | |
| Typical Gate Charge @ Vgs | 18 nC @ 10 V | |
| Number of Elements per Chip | 1 | |
| Length | 3.15mm | |
| Transistor Material | Si | |
| Forward Diode Voltage | 1.2V | |
| Height | 0.75mm | |
| Minimum Operating Temperature | -55 °C | |
Select all | ||
|---|---|---|
Brand onsemi | ||
Channel Type N | ||
Maximum Continuous Drain Current 85 A | ||
Maximum Drain Source Voltage 40 V | ||
Package Type WDFN | ||
Mounting Type Surface Mount | ||
Pin Count 8 | ||
Maximum Drain Source Resistance 6 mΩ | ||
Channel Mode Enhancement | ||
Maximum Gate Threshold Voltage 2V | ||
Minimum Gate Threshold Voltage 1.2V | ||
Maximum Power Dissipation 55 W | ||
Transistor Configuration Single | ||
Maximum Gate Source Voltage -20 V, +20 V | ||
Width 3.15mm | ||
Maximum Operating Temperature +175 °C | ||
Typical Gate Charge @ Vgs 18 nC @ 10 V | ||
Number of Elements per Chip 1 | ||
Length 3.15mm | ||
Transistor Material Si | ||
Forward Diode Voltage 1.2V | ||
Height 0.75mm | ||
Minimum Operating Temperature -55 °C | ||
- COO (Country of Origin):
- MY
N-Channel Power MOSFET, 40V, ON Semiconductor
MOSFET Transistors, ON Semiconductor
