Vishay SQ2361CEES Type P-Channel Single MOSFETs, -2.8 A, 60 V Enhancement, 3-Pin SOT-23
- RS Stock No.:
- 653-155
- Mfr. Part No.:
- SQ2361CEES-T1_GE3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 1 unit)*
£0.27
(exc. VAT)
£0.32
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 1,737 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 24 | £0.27 |
| 25 - 99 | £0.24 |
| 100 - 499 | £0.22 |
| 500 - 999 | £0.17 |
| 1000 + | £0.16 |
*price indicative
- RS Stock No.:
- 653-155
- Mfr. Part No.:
- SQ2361CEES-T1_GE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single MOSFETs | |
| Channel Type | Type P | |
| Maximum Continuous Drain Current Id | -2.8A | |
| Maximum Drain Source Voltage Vds | 60V | |

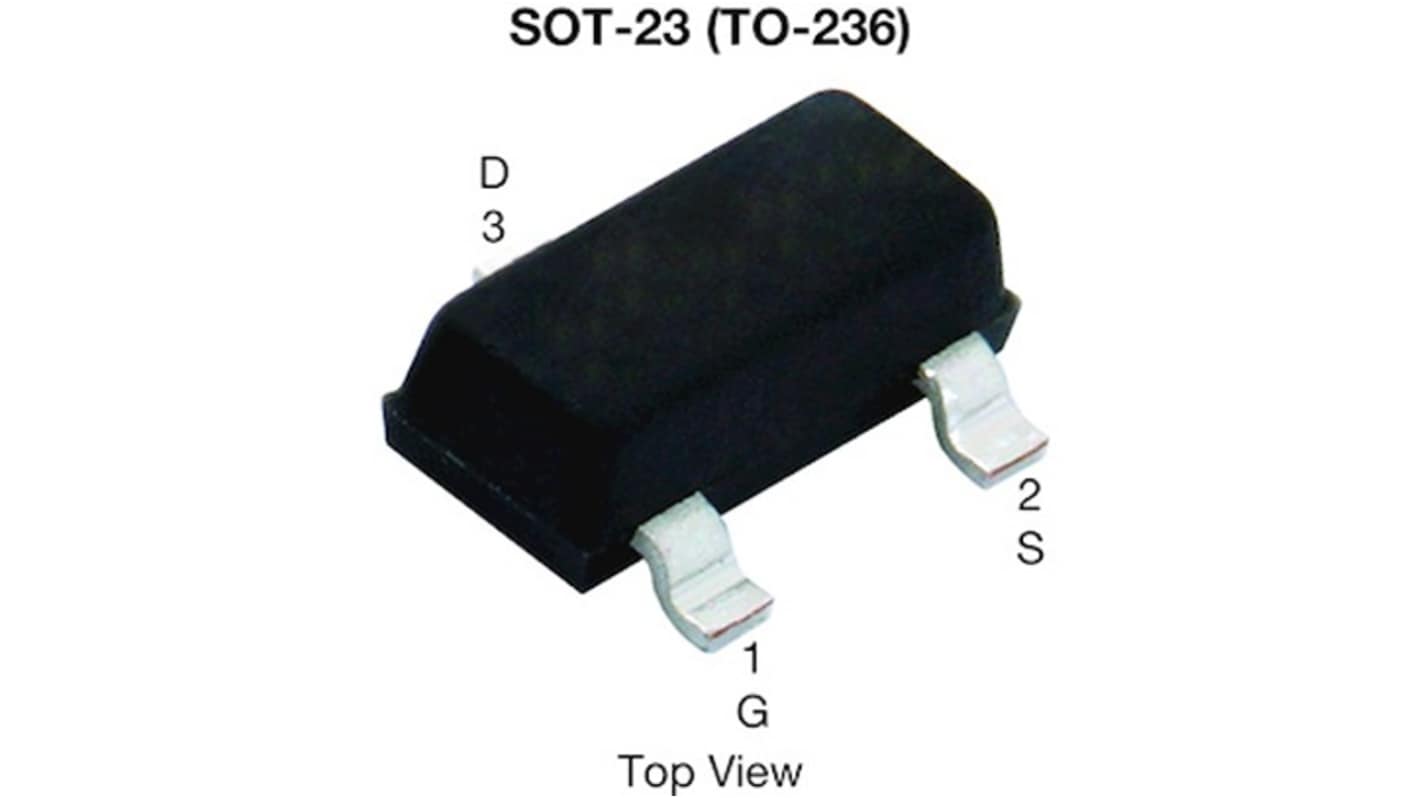

| Package Type | SOT-23 | |
| Series | SQ2361CEES | |
| Mount Type | PCB | |
| Pin Count | 3 | |
| Maximum Drain Source Resistance Rds | 0.17Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 2W | |
| Minimum Operating Temperature | -55°C | |
| Typical Gate Charge Qg @ Vgs | 15nC | |
| Forward Voltage Vf | -1.2V | |
| Maximum Operating Temperature | 175°C | |
| Length | 3.04mm | |
| Standards/Approvals | AEC-Q101 | |
| Automotive Standard | AEC-Q101 | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single MOSFETs | ||
Channel Type Type P | ||
Maximum Continuous Drain Current Id -2.8A | ||
Maximum Drain Source Voltage Vds 60V | ||
Package Type SOT-23 | ||
Series SQ2361CEES | ||
Mount Type PCB | ||
Pin Count 3 | ||
Maximum Drain Source Resistance Rds 0.17Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 2W | ||
Minimum Operating Temperature -55°C | ||
Typical Gate Charge Qg @ Vgs 15nC | ||
Forward Voltage Vf -1.2V | ||
Maximum Operating Temperature 175°C | ||
Length 3.04mm | ||
Standards/Approvals AEC-Q101 | ||
Automotive Standard AEC-Q101 | ||
The Vishay automotive-grade P-channel MOSFET designed for compact, low-voltage switching applications. It supports up to 60 V drain-source voltage and operates reliably at junction temperatures up to 175 °C, making it suitable for harsh automotive environments. Packaged in a SOT-23 format, it utilizes Vishay’s TrenchFET technology to deliver low RDS(on) and efficient thermal performance in space-constrained designs.
AEC Q101 qualified
Pb Free
Halogen free
RoHS compliant
