Vishay SISS176LDN Type N-Channel Single MOSFETs, 42.3 A, 70 V Enhancement, 8-Pin PowerPAK
- RS Stock No.:
- 653-100
- Mfr. Part No.:
- SISS176LDN-T1-UE3
- Brand:
- Vishay
Bulk discount available
View bulk pricing optionsSubtotal (1 tape of 1 unit)*
£0.68
(exc. VAT)
£0.82
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 6,000 unit(s) shipping from 01 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
|---|---|
| 1 - 24 | £0.68 |
| 25 - 99 | £0.67 |
| 100 - 499 | £0.65 |
| 500 - 999 | £0.56 |
| 1000 + | £0.53 |
*price indicative
- RS Stock No.:
- 653-100
- Mfr. Part No.:
- SISS176LDN-T1-UE3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Single MOSFETs | |
| Channel Type | Type N | |
| Maximum Continuous Drain Current Id | 42.3A | |
| Maximum Drain Source Voltage Vds | 70V | |
| Package Type | PowerPAK | |
| Series | SISS176LDN | |
| Mount Type | Surface | |
| Pin Count | 8 | |
| Maximum Drain Source Resistance Rds | 0.0125Ω | |
| Channel Mode | Enhancement | |
| Maximum Power Dissipation Pd | 39W | |
| Forward Voltage Vf | 1.1V | |
| Typical Gate Charge Qg @ Vgs | 9.2nC | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Height | 0.41mm | |
| Standards/Approvals | No | |
| Length | 3.30mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Single MOSFETs | ||
Channel Type Type N | ||
Maximum Continuous Drain Current Id 42.3A | ||
Maximum Drain Source Voltage Vds 70V | ||
Package Type PowerPAK | ||
Series SISS176LDN | ||
Mount Type Surface | ||
Pin Count 8 | ||
Maximum Drain Source Resistance Rds 0.0125Ω | ||
Channel Mode Enhancement | ||
Maximum Power Dissipation Pd 39W | ||
Forward Voltage Vf 1.1V | ||
Typical Gate Charge Qg @ Vgs 9.2nC | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Height 0.41mm | ||
Standards/Approvals No | ||
Length 3.30mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN

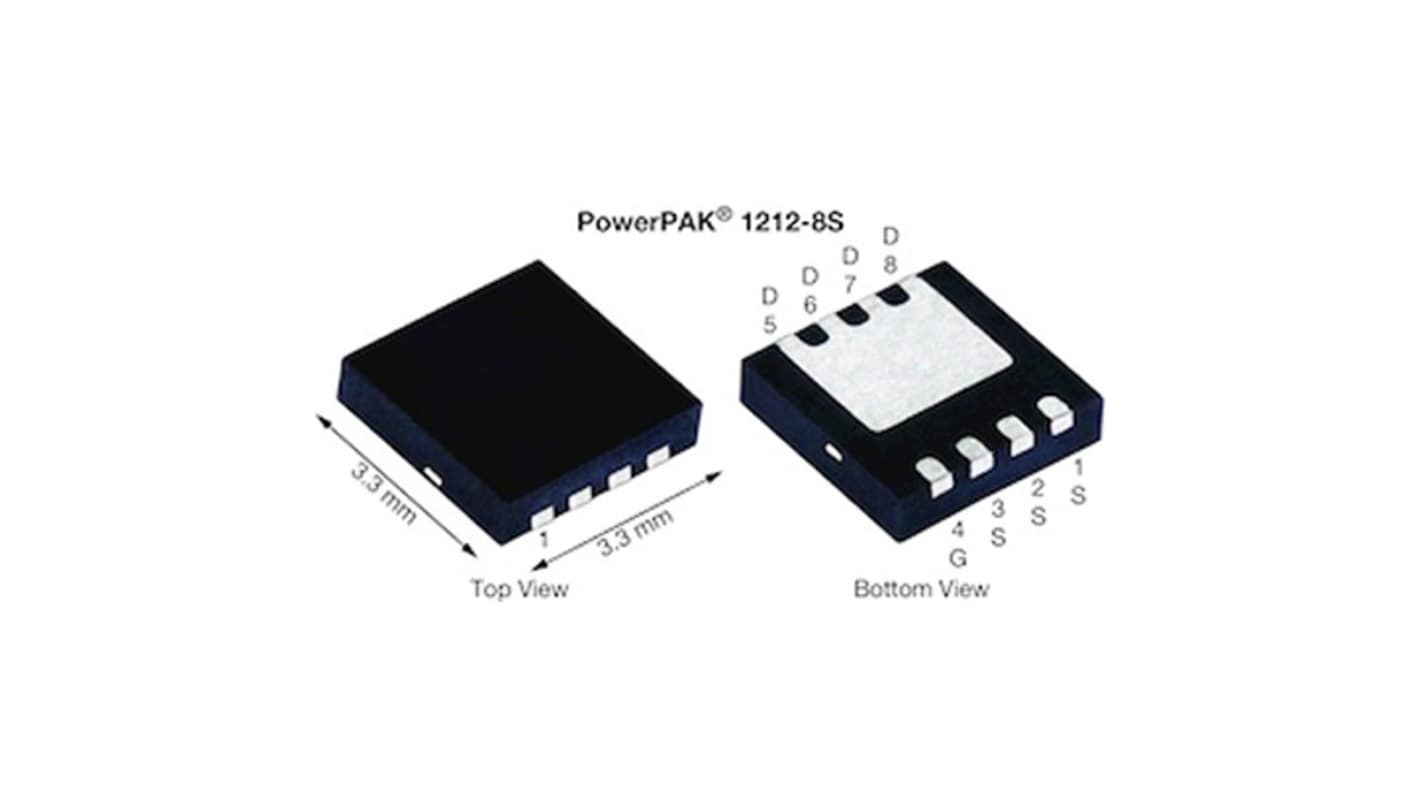

The Vishay TrenchFET Gen IV N-Channel Power MOSFET rated for 70 V drain-source voltage and 42.3 A continuous drain current. It features a Compact PowerPAK 1212-8S surface-mount package, making it Ideal for DC/DC converters, synchronous rectification, motor control, and load switching.
Pb Free
Halogen free
RoHS compliant
