Vishay SQS146 Type N-Channel Single MOSFETs, 94 A, 40 V Enhancement, 8-Pin PowerPAK

View all MOSFETs
Bulk discount available

Subtotal (1 tape of 1 unit)*

£0.40

(exc. VAT)

£0.48

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2,995 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s)
Per Tape
1 - 24£0.40
25 - 99£0.39
100 - 499£0.38
500 - 999£0.33
1000 +£0.31

*price indicative

RS Stock No.:
653-076
Mfr. Part No.:
SQS146ELNW-T1_GE3
Brand:
Vishay
Find similar products by selecting one or more attributes.
Select all

Brand

Vishay

Channel Type

Type N

Product Type

Single MOSFETs

Maximum Continuous Drain Current Id

94A

Maximum Drain Source Voltage Vds

40V

Series

SQS146

Package Type

PowerPAK

Mount Type

Surface

Pin Count

8

Maximum Drain Source Resistance Rds

0.0052Ω

Channel Mode

Enhancement

Maximum Gate Source Voltage Vgs

±20 V

Minimum Operating Temperature

-55°C

Typical Gate Charge Qg @ Vgs

26nC

Maximum Power Dissipation Pd

91W

Forward Voltage Vf

1.1V

Maximum Operating Temperature

175°C

Length

3.3mm

Standards/Approvals

AEC-Q101

Height

0.75mm

Width

3.3 mm

Automotive Standard

AEC-Q101

COO (Country of Origin):
CN

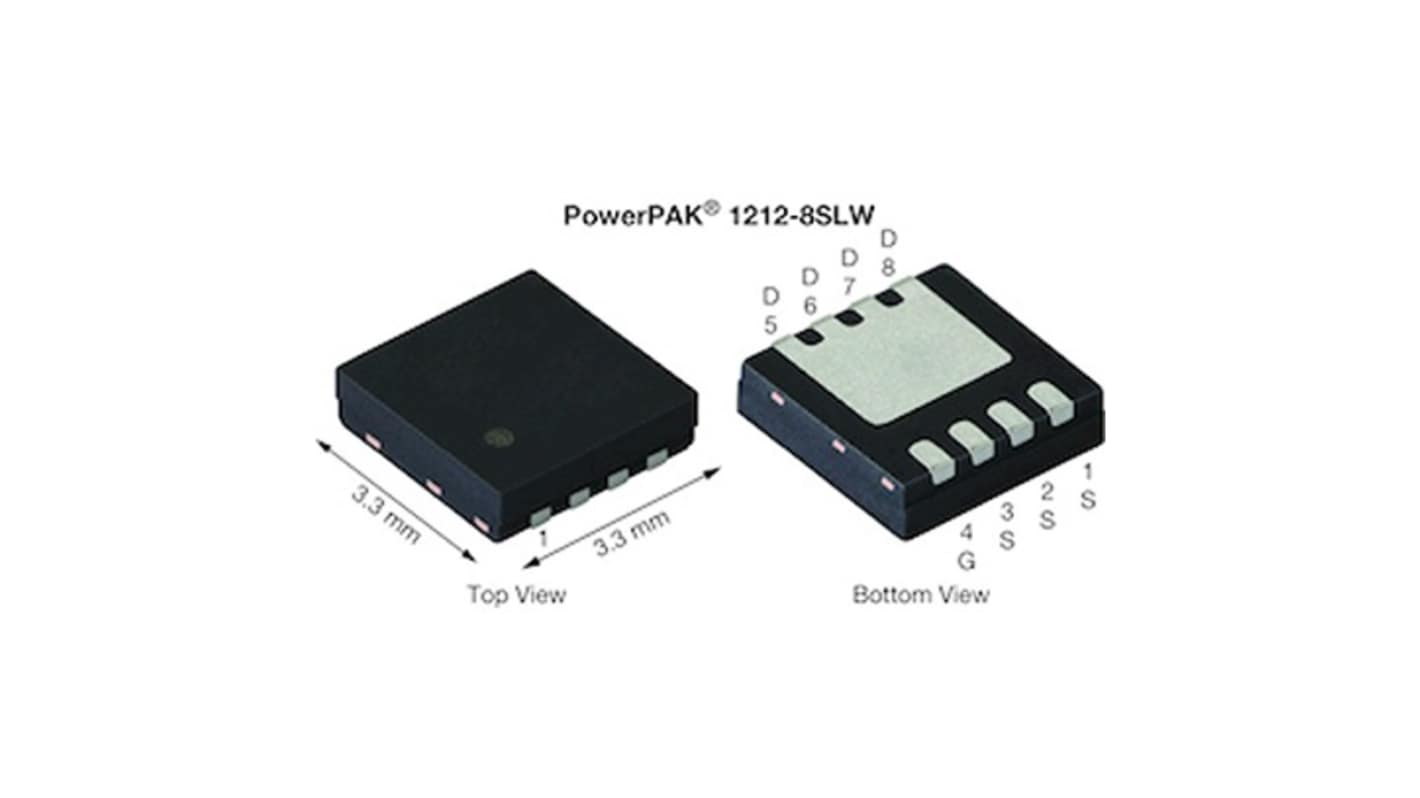

The Vishay automotive-grade N-channel MOSFET designed for high-efficiency switching in Compact power systems. It supports up to 40 V drain-source voltage and operates reliably at junction temperatures up to 175 °C. Packaged in PowerPAK 1212-8SLW, it features TrenchFET Gen IV technology for superior thermal and electrical performance.

AEC Q101 qualified

Pb Free

Halogen free

RoHS compliant
