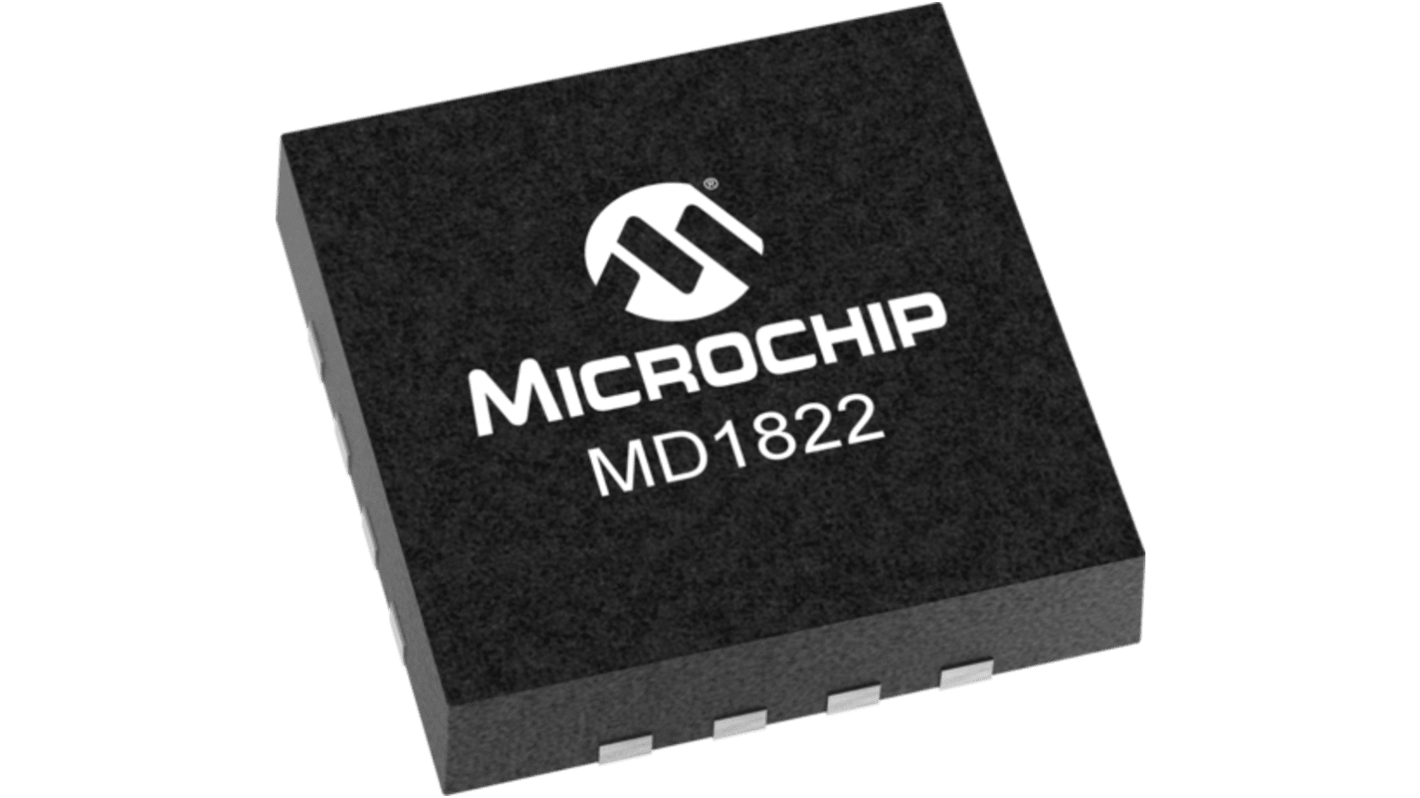

Microchip MD1822 1 N-Channel Gate Driver, 16-Pin VQFN MD1822K6-G

View all MOSFETs

Subtotal (1 reel of 3300 units)*

£3,366.00

(exc. VAT)

£4,026.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 11 January 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
3300 +£1.02£3,366.00

*price indicative

RS Stock No.:
598-283
Mfr. Part No.:
MD1822K6-G
Brand:
Microchip
Find similar products by selecting one or more attributes.
Select all

Brand

Microchip

Product Type

Gate Driver

Channel Type

N

Package Type

VQFN

Series

MD1822

Mount Type

Surface Mount

Pin Count

16

Number of Elements per Chip

1

The Microchip High speed, four-channel MOSFET driver is designed to drive high-voltage P-channel and N-channel MOSFETs for medical ultrasound applications and other high-output current applications requiring capacitive load handling. The high-speed input stage operates from a 1.8V to 5V logic interface, with an optimum operating input signal range of 1.8V to 3.3V. An adaptive threshold circuit sets the level translator switch threshold to the average of the input logic 0 and logic 1 levels. The driver supports ground-referenced input logic levels while outputting bipolar signals, utilizing a proprietary level translator circuit that provides DC coupling and high-speed operation.

5V to 10V total supply voltage

Smart logic threshold

Low jitter design

Four matched channels

Outputs can swing below ground
