Infineon IGT65 Type N-Channel MOSFET, 70 A, 650 V Enhancement, 8-Pin PG-HSOF-8 IGT65R025D2ATMA1

RS Stock No.:: 351-969
Mfr. Part No.:: IGT65R025D2ATMA1
Brand:: Infineon

Infineon IGT65 Type N-Channel MOSFET, 70 A, 650 V Enhancement, 8-Pin PG-HSOF-8 IGT65R025D2ATMA1

Bulk discount available

Subtotal (1 unit)*

£13.19

(exc. VAT)

£15.83

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1,995 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£13.19
10 - 99	£11.87
100 +	£10.95

*price indicative

RS Stock No.:: 351-969
Mfr. Part No.:: IGT65R025D2ATMA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Channel Type	Type N
	Product Type	MOSFET
	Maximum Continuous Drain Current Id	70A
	Maximum Drain Source Voltage Vds	650V
	Series	IGT65
	Package Type	PG-HSOF-8
	Mount Type	Surface
	Pin Count	8
	Maximum Drain Source Resistance Rds	0.03Ω
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Maximum Gate Source Voltage Vgs	10 V
	Maximum Power Dissipation Pd	236W
	Typical Gate Charge Qg @ Vgs	11nC
	Maximum Operating Temperature	150°C
	Standards/Approvals	JEDEC for Industrial Applications
	Automotive Standard	No

	Select all
	Brand Infineon
	Channel Type Type N
	Product Type MOSFET
	Maximum Continuous Drain Current Id 70A
	Maximum Drain Source Voltage Vds 650V
	Series IGT65
	Package Type PG-HSOF-8
	Mount Type Surface
	Pin Count 8
	Maximum Drain Source Resistance Rds 0.03Ω
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Maximum Gate Source Voltage Vgs 10 V
	Maximum Power Dissipation Pd 236W
	Typical Gate Charge Qg @ Vgs 11nC
	Maximum Operating Temperature 150°C
	Standards/Approvals JEDEC for Industrial Applications
	Automotive Standard No

Datasheet - IGT65R025D2ATMA1

COO (Country of Origin):: MY

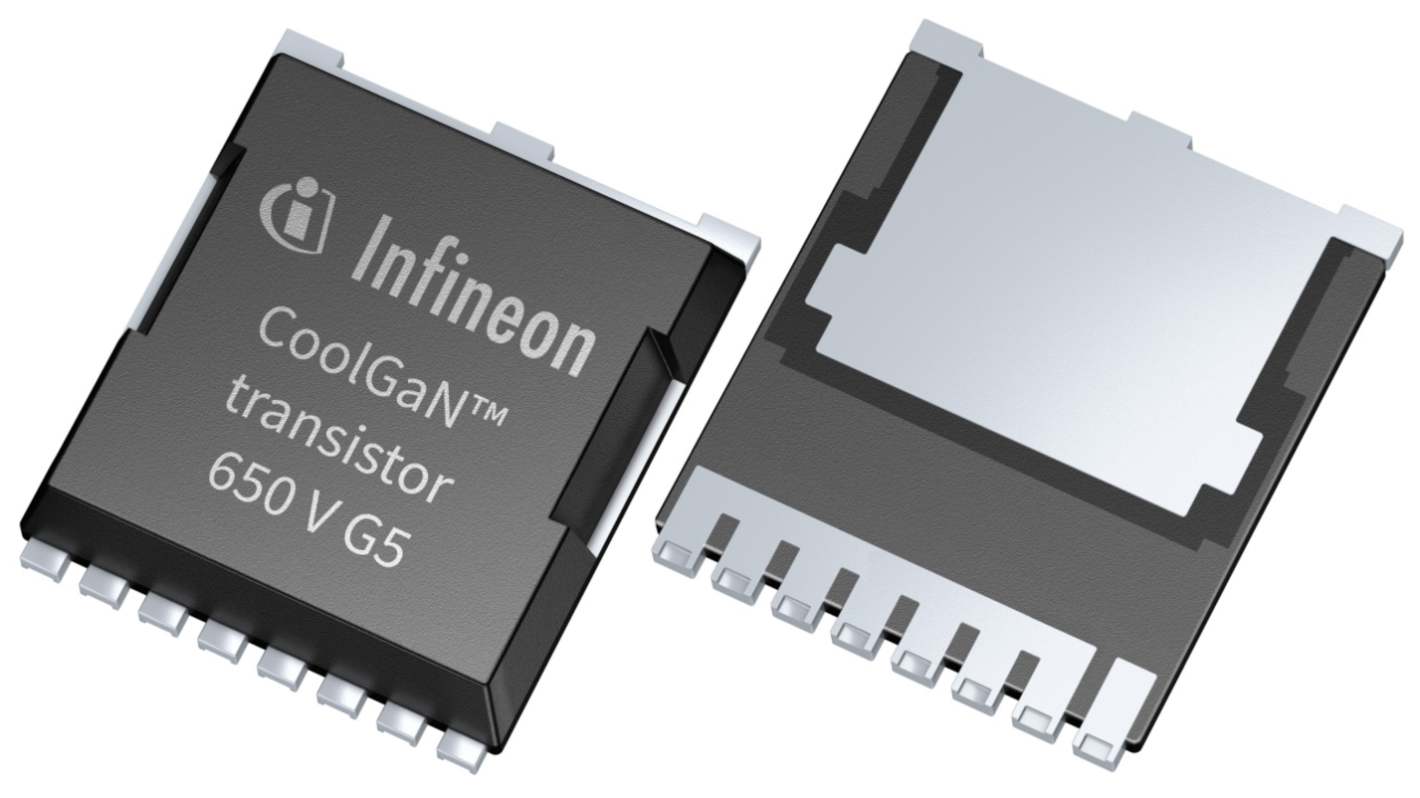

The Infineon CoolGaN is a highly efficient gallium nitride (GaN) transistor designed for power conversion. It enables higher power density, supports reduced system BOM cost, and facilitates miniaturized form factors. Produced using wafer technology and fully automated production lines, it features narrow production tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial applications.

Enhancement mode transistor

Ultra fast switching

No reverse recovery charge

Capable of reverse conduction

Low gate and output charge

Superior commutation ruggedness
