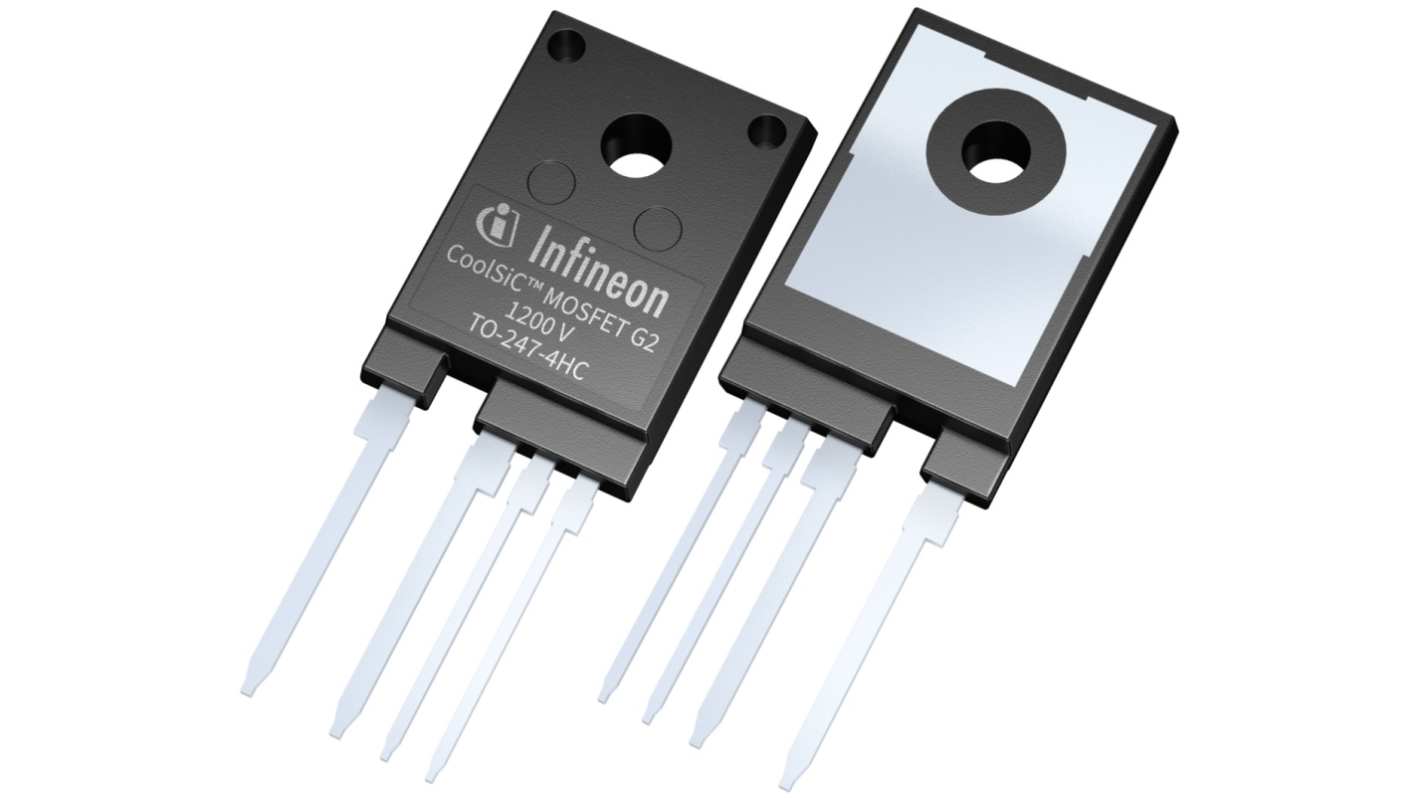

Infineon IMZC120 Type N-Channel MOSFET, 55 A, 1200 V Enhancement, 4-Pin PG-TO-247-4-U07 IMZC120R034M2HXKSA1

RS Stock No.:: 351-928
Mfr. Part No.:: IMZC120R034M2HXKSA1
Brand:: Infineon

Infineon IMZC120 Type N-Channel MOSFET, 55 A, 1200 V Enhancement, 4-Pin PG-TO-247-4-U07 IMZC120R034M2HXKSA1

Bulk discount available

Subtotal (1 unit)*

£12.03

(exc. VAT)

£14.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

240 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 9	£12.03
10 - 99	£10.83
100 +	£9.98

*price indicative

RS Stock No.:: 351-928
Mfr. Part No.:: IMZC120R034M2HXKSA1
Brand:: Infineon

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Infineon
	Product Type	MOSFET
	Channel Type	Type N
	Maximum Continuous Drain Current Id	55A
	Maximum Drain Source Voltage Vds	1200V
	Series	IMZC120
	Package Type	PG-TO-247-4-U07
	Mount Type	Through Hole
	Pin Count	4
	Maximum Drain Source Resistance Rds	89mΩ
	Channel Mode	Enhancement
	Minimum Operating Temperature	-55°C
	Typical Gate Charge Qg @ Vgs	45nC
	Maximum Power Dissipation Pd	244W
	Maximum Gate Source Voltage Vgs	25 V
	Maximum Operating Temperature	200°C
	Length	23.1mm
	Width	15.6 mm
	Standards/Approvals	JEDEC47/20/22
	Automotive Standard	No

	Select all
	Brand Infineon
	Product Type MOSFET
	Channel Type Type N
	Maximum Continuous Drain Current Id 55A
	Maximum Drain Source Voltage Vds 1200V
	Series IMZC120
	Package Type PG-TO-247-4-U07
	Mount Type Through Hole
	Pin Count 4
	Maximum Drain Source Resistance Rds 89mΩ
	Channel Mode Enhancement
	Minimum Operating Temperature -55°C
	Typical Gate Charge Qg @ Vgs 45nC
	Maximum Power Dissipation Pd 244W
	Maximum Gate Source Voltage Vgs 25 V
	Maximum Operating Temperature 200°C
	Length 23.1mm
	Width 15.6 mm
	Standards/Approvals JEDEC47/20/22
	Automotive Standard No

Datasheet - IMZC120R034M2HXKSA1

The Infineon CoolSiC MOSFET discrete with high creepage package builds on the strengths of Generation 1 technology with significant improvement that provides an advanced solution for more cost-optimized, efficient, compact, easy-to-design and reliable system. It enhanced better performance in both hard-switching operation and soft-switching topologies for all common combinations of AC-DC, DC-DC, and DC-AC stages.

Better energy efficiency

Cooling optimization

Higher power density

New robustness features

Highly reliable

Easy paralleling
