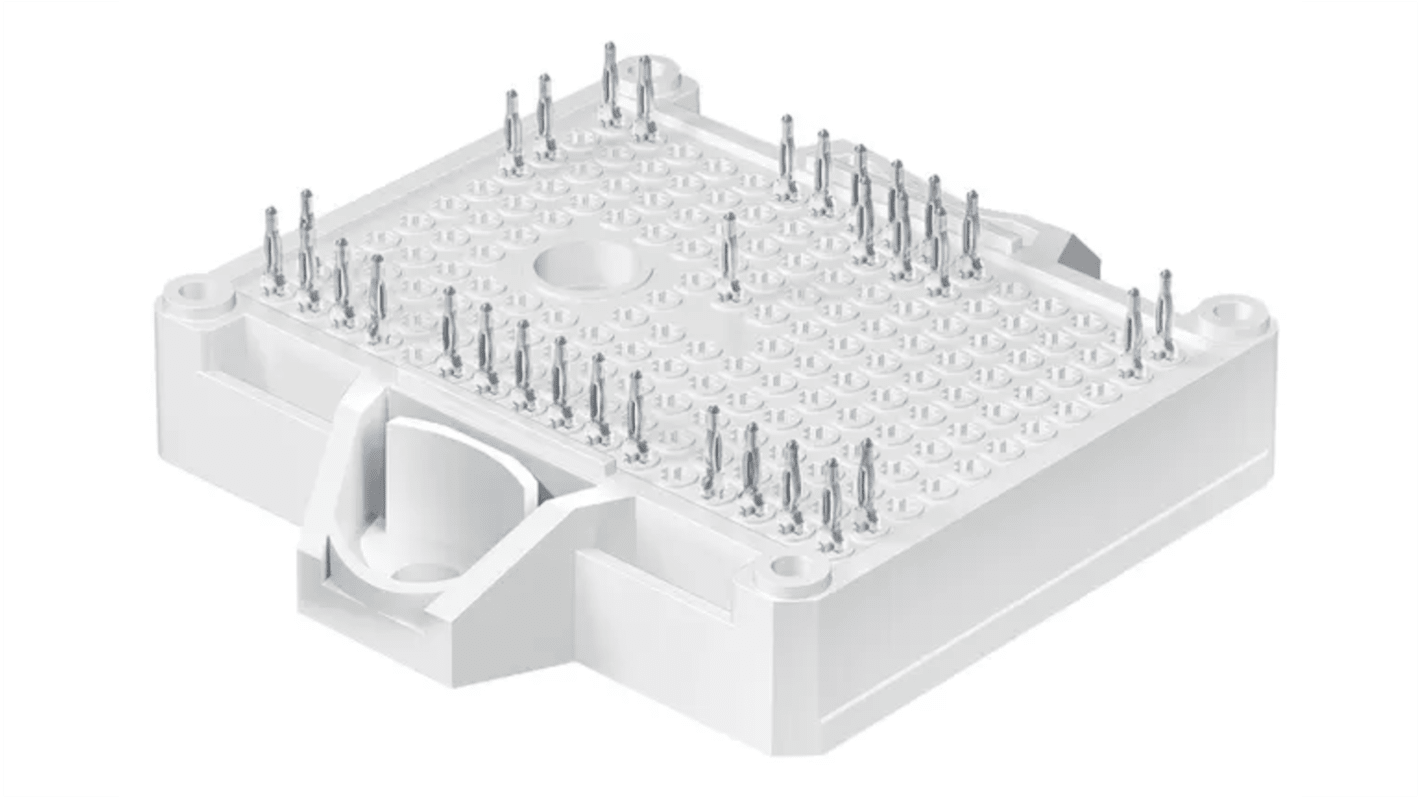

Semikron Danfoss SEMITOP Bi-Directional-Channel SiC Power Module, 134 A, 1200 V SEMITOP E2 SK150AMLI120CR03TE2
- RS Stock No.:
- 351-857
- Mfr. Part No.:
- SK150AMLI120CR03TE2
- Brand:
- Semikron Danfoss
Subtotal (1 unit)*
£165.18
(exc. VAT)
£198.22
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 40 unit(s) shipping from 13 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £165.18 |
*price indicative
- RS Stock No.:
- 351-857
- Mfr. Part No.:
- SK150AMLI120CR03TE2
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | SiC Power Module | |
| Channel Type | Bi-Directional | |
| Maximum Continuous Drain Current Id | 134A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | SEMITOP | |
| Package Type | SEMITOP E2 | |
| Mount Type | Through Hole | |
| Maximum Drain Source Resistance Rds | 11mΩ | |
| Minimum Operating Temperature | -40°C | |
| Typical Gate Charge Qg @ Vgs | 929nC | |
| Maximum Gate Source Voltage Vgs | 15 V | |
| Maximum Operating Temperature | 175°C | |
| Standards/Approvals | RoHS, IEC 61340 | |
| Width | 62.8 mm | |
| Length | 57.1mm | |
| Height | 16.5mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type SiC Power Module | ||
Channel Type Bi-Directional | ||
Maximum Continuous Drain Current Id 134A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series SEMITOP | ||
Package Type SEMITOP E2 | ||
Mount Type Through Hole | ||
Maximum Drain Source Resistance Rds 11mΩ | ||
Minimum Operating Temperature -40°C | ||
Typical Gate Charge Qg @ Vgs 929nC | ||
Maximum Gate Source Voltage Vgs 15 V | ||
Maximum Operating Temperature 175°C | ||
Standards/Approvals RoHS, IEC 61340 | ||
Width 62.8 mm | ||
Length 57.1mm | ||
Height 16.5mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- IT
The Semikron SiC MOSFET WS features a 3-level 1200V planar Gen3 design with a 134 A current rating and includes a 1200V Generation 7 IGBT M7 for enhanced performance. It is simple to drive with a +15V gate voltage and offers optimized switching stability with module-integrated gate resistors. An integrated NTC temperature sensor ensures efficient thermal monitoring, and it is UL recognized under file no. E63532.
Optimized design for superior thermal performance
Low inductance design
Press-Fit contact technology
Optimized for LF or HF operation
Suited to bidirectional power flow
