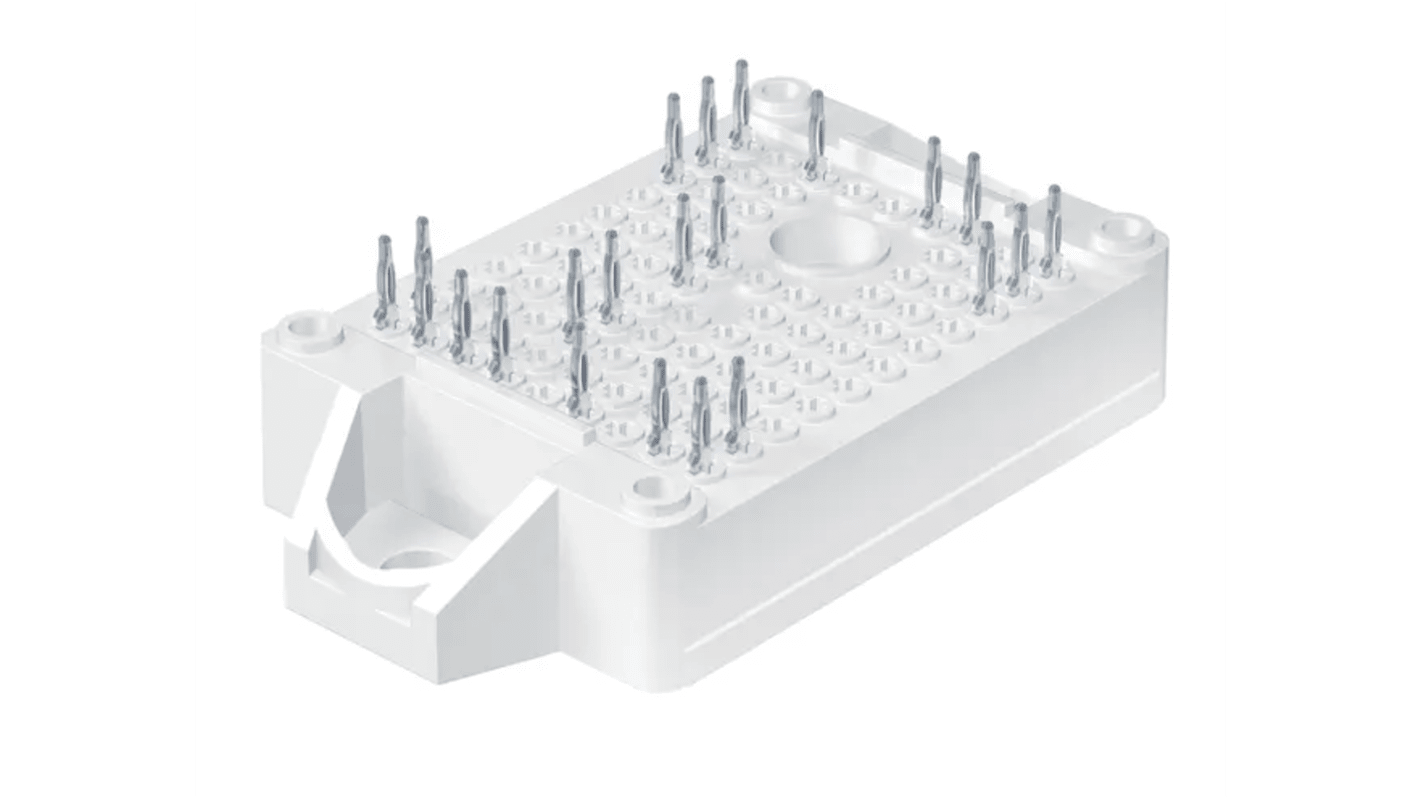

Semikron Danfoss SEMITOP SiC Power Module, 51 A, 1200 V SK40MLLE120CR03TE1
- RS Stock No.:
- 351-852
- Mfr. Part No.:
- SK40MLLE120CR03TE1
- Brand:
- Semikron Danfoss
Bulk discount available
Subtotal (1 unit)*
£66.08
(exc. VAT)
£79.30
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £66.08 |
| 10 + | £59.47 |
*price indicative
- RS Stock No.:
- 351-852
- Mfr. Part No.:
- SK40MLLE120CR03TE1
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | SiC Power Module | |
| Maximum Continuous Drain Current Id | 51A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | SEMITOP | |
| Mount Type | Screw | |
| Maximum Drain Source Resistance Rds | 50mΩ | |
| Maximum Gate Source Voltage Vgs | 19 V | |
| Typical Gate Charge Qg @ Vgs | 118nC | |
| Forward Voltage Vf | 4.62V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 175°C | |
| Width | 34 mm | |
| Length | 63mm | |
| Height | 12mm | |
| Standards/Approvals | UL/IEC 61340 | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type SiC Power Module | ||
Maximum Continuous Drain Current Id 51A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series SEMITOP | ||
Mount Type Screw | ||
Maximum Drain Source Resistance Rds 50mΩ | ||
Maximum Gate Source Voltage Vgs 19 V | ||
Typical Gate Charge Qg @ Vgs 118nC | ||
Forward Voltage Vf 4.62V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 175°C | ||
Width 34 mm | ||
Length 63mm | ||
Height 12mm | ||
Standards/Approvals UL/IEC 61340 | ||
- COO (Country of Origin):
- IT
The Semikron SiC MOSFET WS chopper or booster features a 43 A current rating and a simple drive capability with a +15V gate voltage. It includes a SiC Schottky diode and utilizes new PEP diode technology for enhanced power and environmental robustness. An integrated NTC temperature sensor ensures efficient thermal monitoring, and it is UL recognized under file no. E63532.
Optimized design for superior thermal performance
Extremely low inductance design
Press-Fit contact technology
1200V Planar Gen3 SiC MOS
