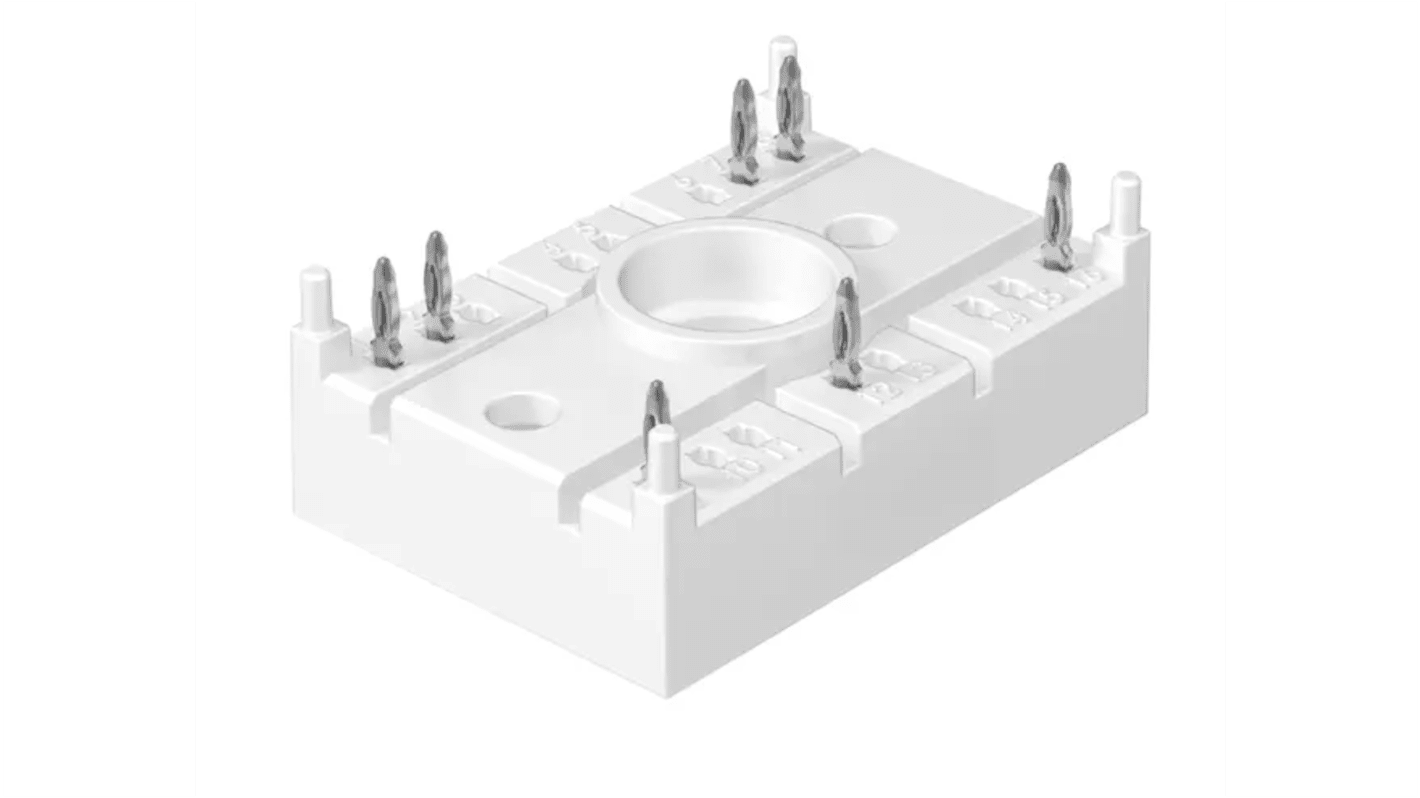

Semikron Danfoss SEMITOP SiC Power Module, 19 A, 1200 V SEMITOP2 SK20KDD12SCp
- RS Stock No.:
- 351-842
- Mfr. Part No.:
- SK20KDD12SCp
- Brand:
- Semikron Danfoss
Bulk discount available
Subtotal (1 unit)*
£70.72
(exc. VAT)
£84.86
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £70.72 |
| 10 + | £63.65 |
*price indicative
- RS Stock No.:
- 351-842
- Mfr. Part No.:
- SK20KDD12SCp
- Brand:
- Semikron Danfoss
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Semikron Danfoss | |
| Product Type | SiC Power Module | |
| Maximum Continuous Drain Current Id | 19A | |
| Maximum Drain Source Voltage Vds | 1200V | |
| Series | SEMITOP | |
| Package Type | SEMITOP2 | |
| Mount Type | Screw | |
| Maximum Drain Source Resistance Rds | 120mΩ | |
| Minimum Operating Temperature | -40°C | |
| Forward Voltage Vf | 2.10V | |
| Maximum Operating Temperature | 175°C | |
| Width | 40.5 mm | |
| Length | 28mm | |
| Height | 12mm | |
| Standards/Approvals | IEC 61340/UL | |
| Select all | ||
|---|---|---|
Brand Semikron Danfoss | ||
Product Type SiC Power Module | ||
Maximum Continuous Drain Current Id 19A | ||
Maximum Drain Source Voltage Vds 1200V | ||
Series SEMITOP | ||
Package Type SEMITOP2 | ||
Mount Type Screw | ||
Maximum Drain Source Resistance Rds 120mΩ | ||
Minimum Operating Temperature -40°C | ||
Forward Voltage Vf 2.10V | ||
Maximum Operating Temperature 175°C | ||
Width 40.5 mm | ||
Length 28mm | ||
Height 12mm | ||
Standards/Approvals IEC 61340/UL | ||
- COO (Country of Origin):
- IT
The Semikron 1200V SiC Schottky diode Rectifier offers a 16 A current rating and features an ultra-low inductance design for enhanced efficiency. It is fully compatible with other SEMITOP Press-Fit types and provides improved thermal performance with an aluminum oxide substrate. UL recognized under file no. E63532.
High frequency rectifier
Smart pinout to ease parallel or series modules connection
Compact design
One screw mounting module
